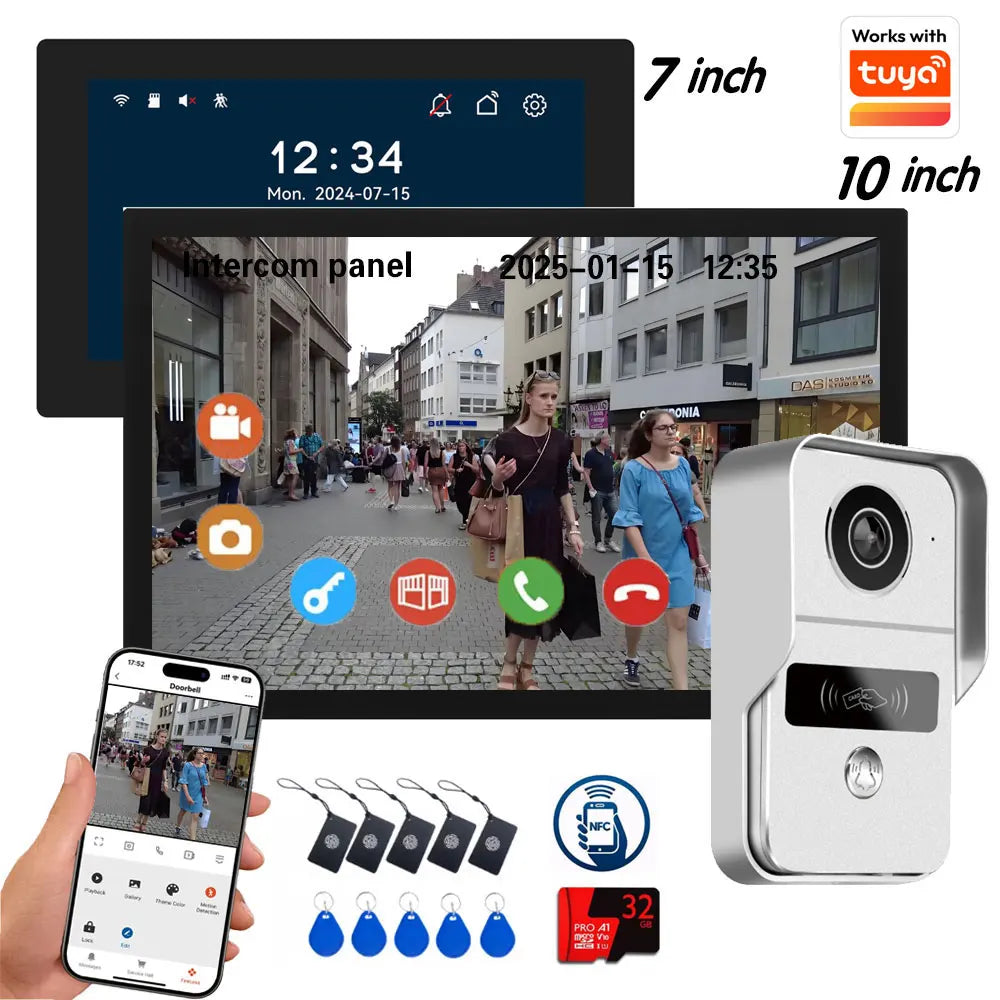

2 Wires Tuya Wifi Video Intercom System 1080P Smart Home Video Doorphone 10" Color Touch Screen with Electric Strike Lock

Works with Tuya doorbell system optional, purchase precautions:

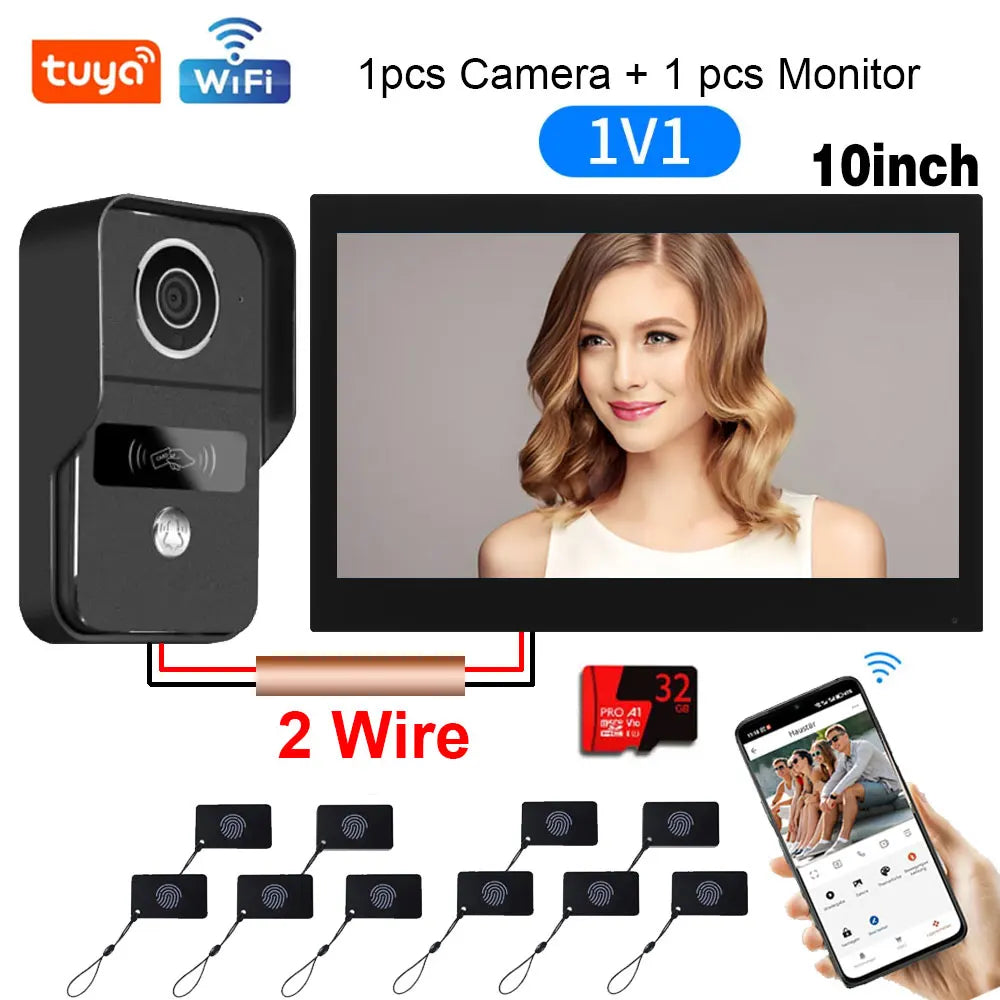

1pcs Camera Add 1pcs 7INCH LCD (optional)

1pcs Camera add 1pcs 10 INCH LCD (optional)

Smart Tuya Wireless Wifi Video Intercom 1080P Video Doorphone 10" Color Touch Screen Doorbell 2-wire video intercom system

2. Fix the corner kit with two screws

3.Remove the screws from the rain cover

4. The rain cover is separated from the doorbell

5. The 2pin wire goes through the hole in the wall

6. Fix the rain cover with two screws

7. Plug the rain cover on the doorbell and fix the bottom screws

8. Fix the hanging plate to the wall with two screws

9. Insert the MicroSD card to the slot of indoor monitor

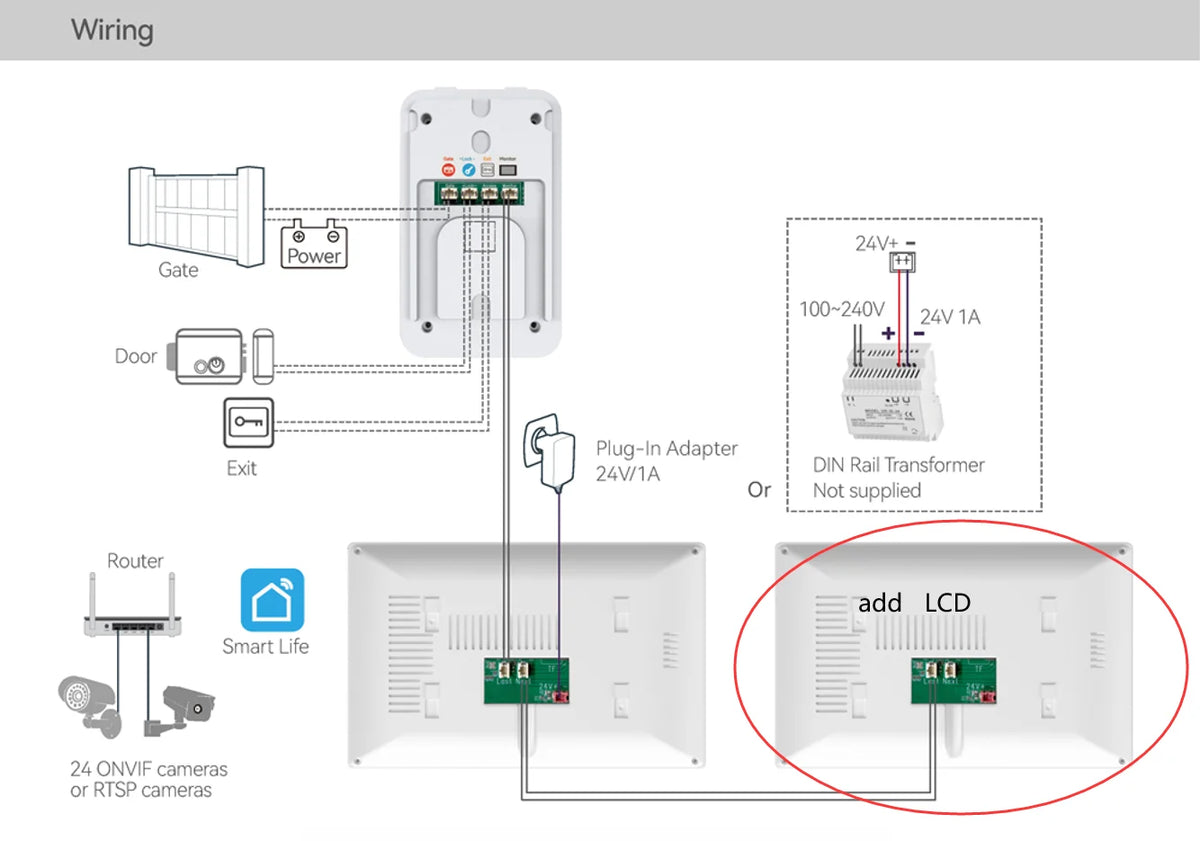

10. Connect the other end of the 2pin wire to Door1 or Door2 of the indoor monitor

11. Connect the indoor monitor to a 24V 1A power adapter

12. Hang the indoor monitor to the hanging plate

2 Wires Tuya Wifi Video Intercom System 1080P Smart Home Video Doorphone 10" Color Touch Screen with Electric Strike Lock

Smart and Innovative IP video intercom system:

Tuya app Smart and Innovative IP video intercom system

Multiple Intercom Up to 1 doorbells can be connected with 2 indoor monitors.

Dual-Way Communication between indoor monitor and outdoor camera; Call Transfer among monitors. You don't always go downstairs open the door after install the multiple intercom.

Tuya Smart Wireless Wifi Video Doorbell System 1080P Doorphone Door HD Inductive Card Camera 10 Inch Touch Screen Video Intercom

Smart 10 Inch Monitor WiFi Tuya Video Doorbell Outdoor Door Bell Waterproof IP65 Intercom Inductive Card Unlock Door Phone Camera

Support Android/IOS Phone Tuya APP / Inductive Card Unlock

Full HD 1080P

* With the TUYA App, the video doorbell camera transmits 1080P HD live video and playback video to your phone for a better view around your house. This is ideal for your long-term outdoor security.

Rainproof and Night vision

Rainproof and Night vision

IP65 waterproof design,work stable in rainy,cloudy,cold and snow day. Built with 1080p HD camera, anti-oxidation aluminium alloy front panel,Rainproof, Dustproof,and Anti-vandal. IR LED for better night vision.

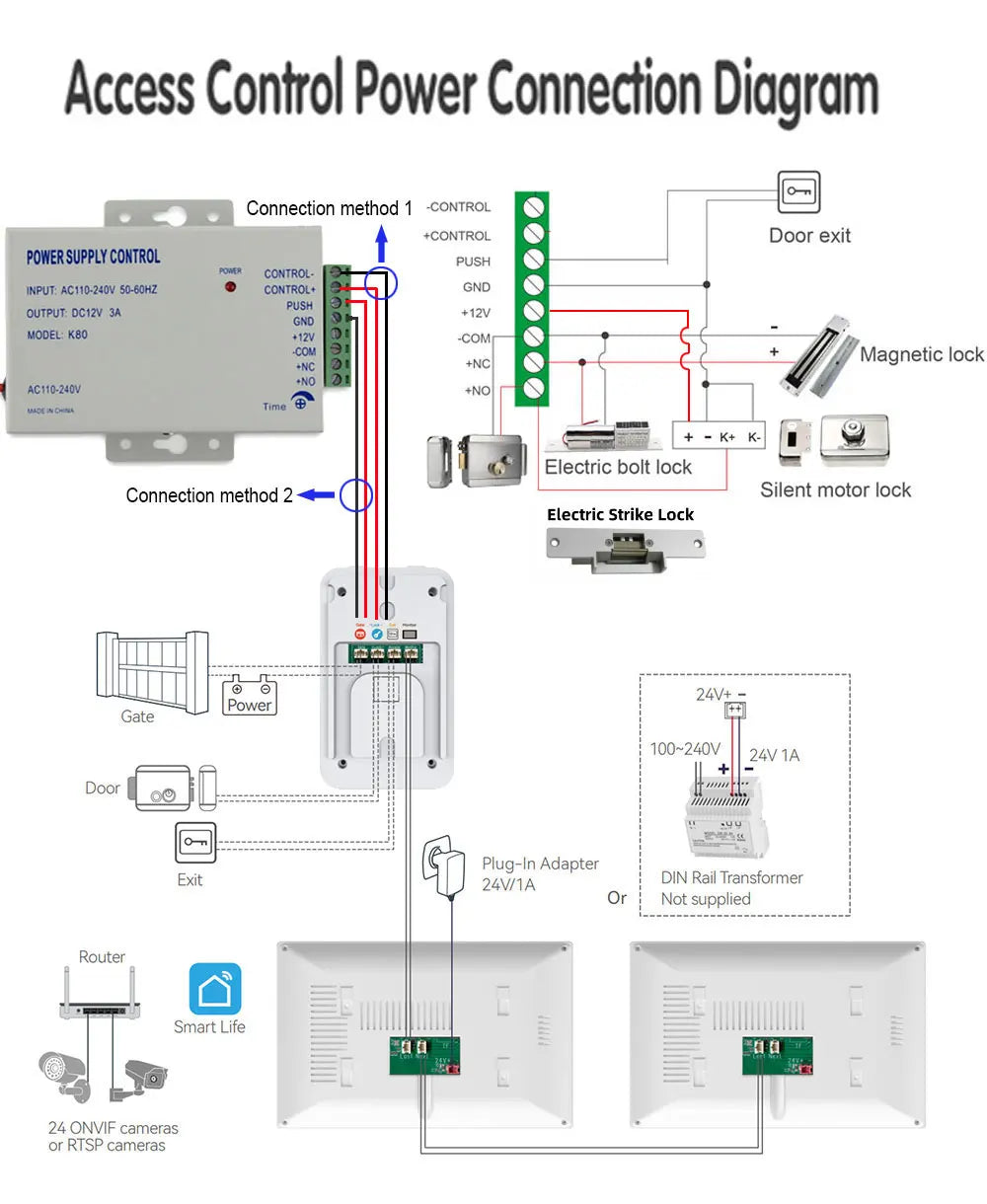

Compatible with Various Electronic Locks

This apartment video intercom can be connected to various electric locks (electromagnetic locks, electric locks, electric bolt locks) to provide convenience for your life.（Note:Locks need to be purchased separately）

Connect Onvif 720P & RTSP 720P IP Camera

Compatible with Onvif and RTSP cameras

Search the cameras then input username and password then add the camera to list of monitor.Display your camera’s image on your monitor screen after add these cameras

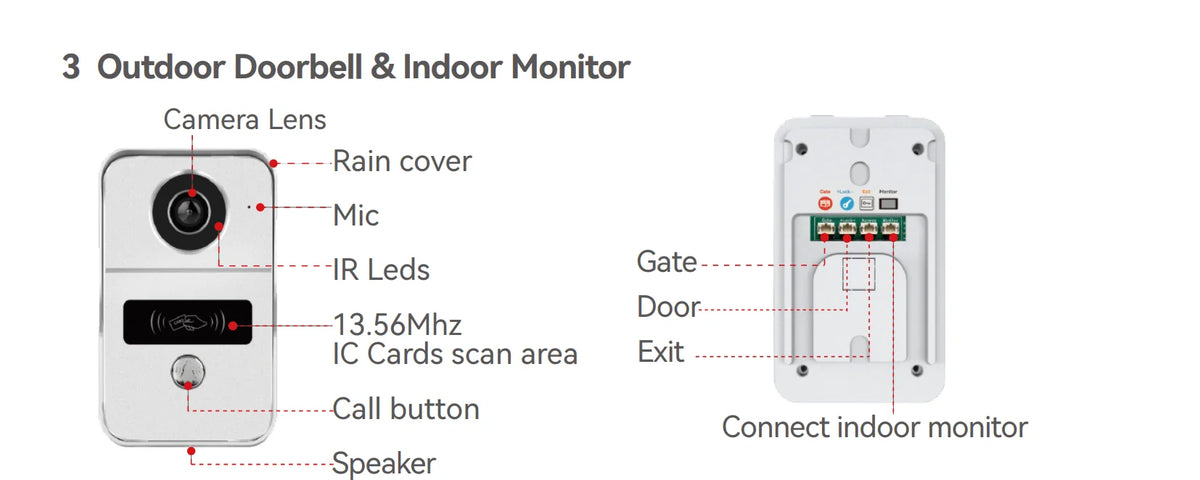

Specification Outdoor Doorbell

Outdoor Doorbell:

Horizontal Resolution: 2MP 1080P,

Visual angle: 140 degrees

Night Vision: IR cut no color deviation,B/W night vision

Panel Material: metal

Installation: Surface mounting

Fashionable Appearance

♦4pcs Nanometer IR LEDs For Night Vision

♦Adjustable Intercom Volume

♦Dual-way Intercom

♦Easy To Install And DIY Installation

♦Rust-proof Aluminium Alloy Anti Vandal Panel

♦IP65 Weatherproof

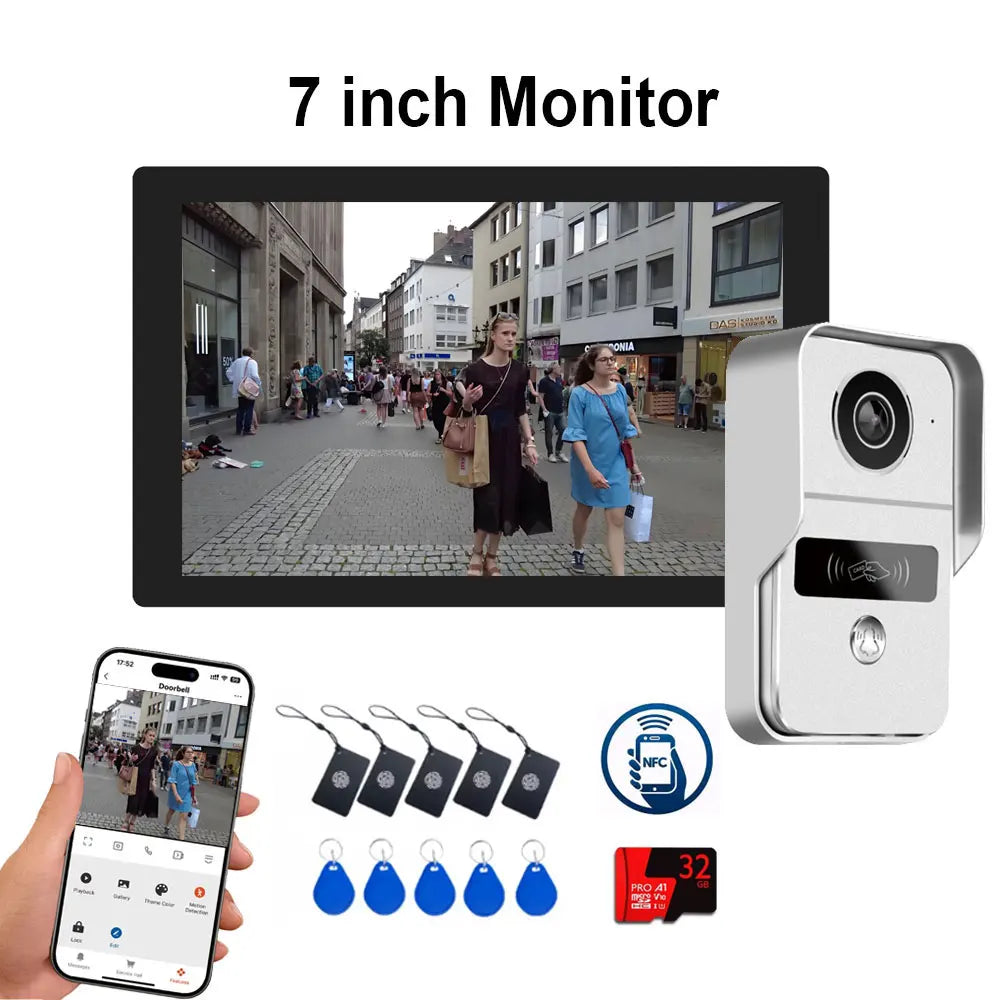

Smart Tuya Wireless Wifi Video Intercom 1080P Video Doorphone 7" Color Touch Screen Doorbell 2-wire video intercom system

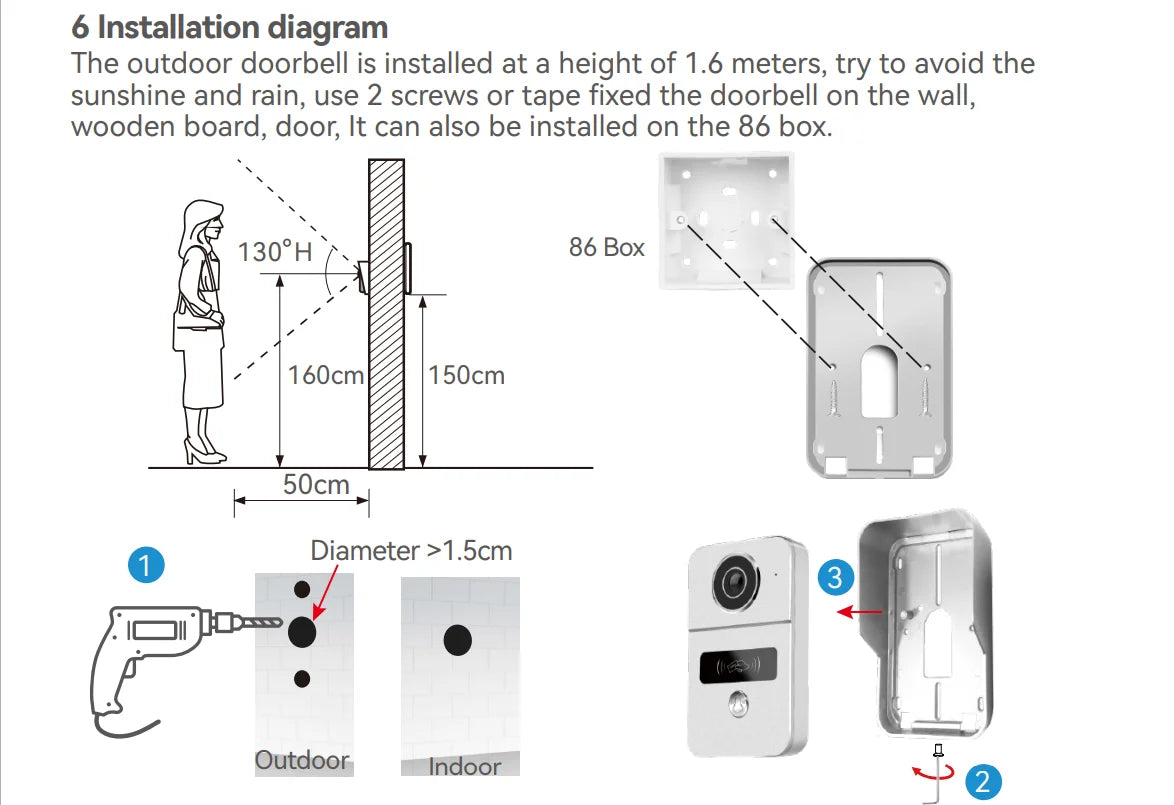

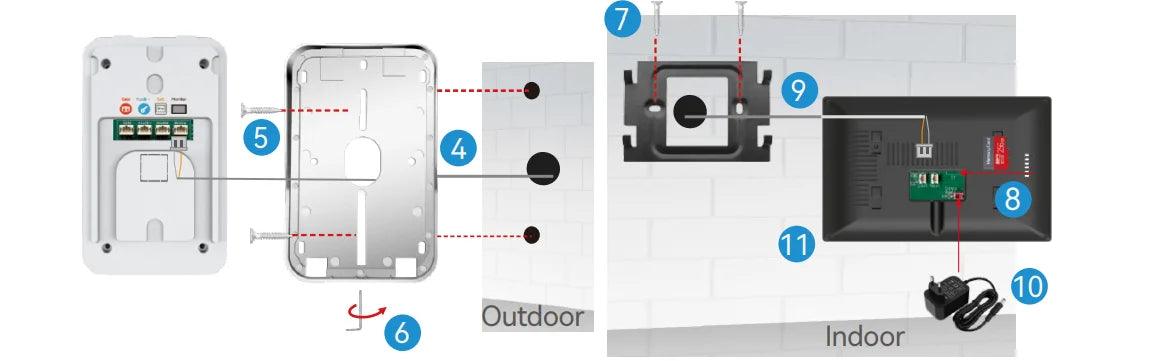

1. Use the drill bit to drill three holes. One hole is large enough to pass through the 2pin wire, use anchors if user install outdoor doorbell on brick or concrete.

2. Fix the corner kit with two screws

3.Remove the screws from the rain cover

4. The rain cover is separated from the doorbell

5. The 2pin wire goes through the hole in the wall

6. Fix the rain cover with two screws

7. Plug the rain cover on the doorbell and fix the bottom screws

8. Fix the hanging plate to the wall with two screws

9. Insert the MicroSD card to the slot of indoor monitor

10. Connect the other end of the 2pin wire to Door1 or Door2 of the indoor monitor

11. Connect the indoor monitor to a 24V 1A power adapter

12. Hang the indoor monitor to the hanging plate

Smart and Innovative IP video intercom system:

Tuya app Smart and Innovative IP video intercom system

Multiple Intercom Up to 1 doorbells can be connected with 2 indoor monitors.

Dual-Way Communication between indoor monitor and outdoor camera; Call Transfer among monitors. You don't always go downstairs open the door after install the multiple intercom.

Phone is the Key:

If you forgot your key when closed your door, use your phone to unlock. See, hear and speak to people(like courier) as if you are home, never miss any visitor.It is convenient for elder or people with reduced mobility to open the door.

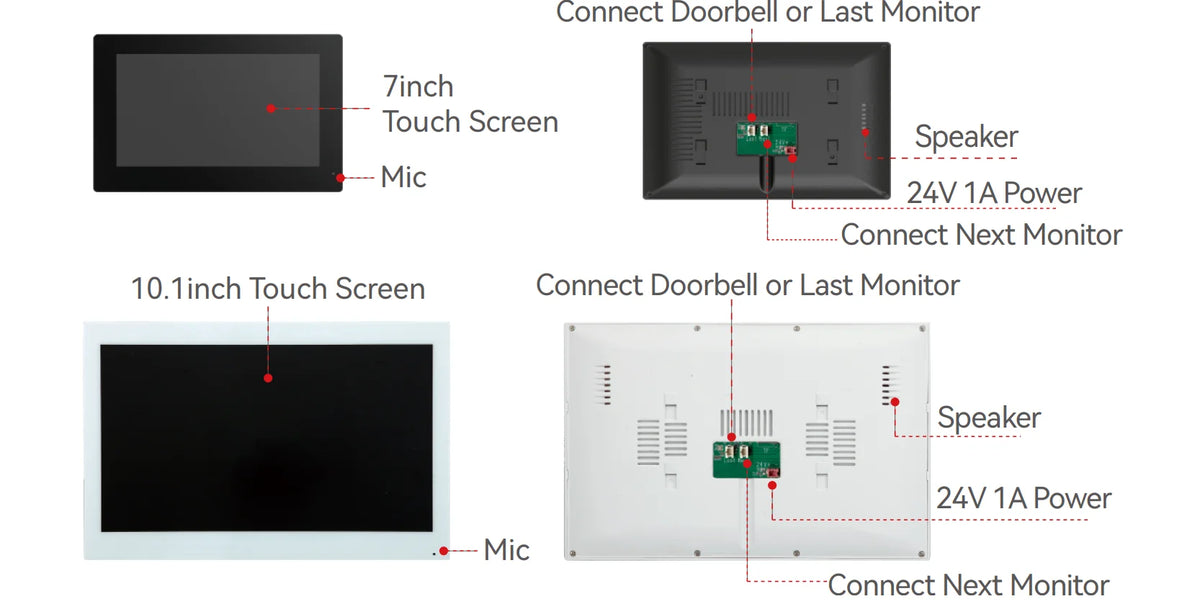

Touch Sensor Button, Acrylic Wire Drawing Panel

Indoor Monitor is made of Acrylic Wire Drawing Panel and TFT Display with sensitive white light. This is very elegant design, and it adopts advanced touch technology.

Support Multi-device Connection

Micro SD card class 10 up to 256GB

Automatically Snapshot/Record

When visitor press the doorbell or triggered motion detection, the camera will automatically snapshot or record and save in a additional Micro SD card.

Automatic Recording

When visitors press the doorbell or motion detect is triggered, doorbell camera will automatically record videos or snapshot pictures and save them in the extra Micro SD card to protect your home everyday. (SD card needs to be purchased separately)

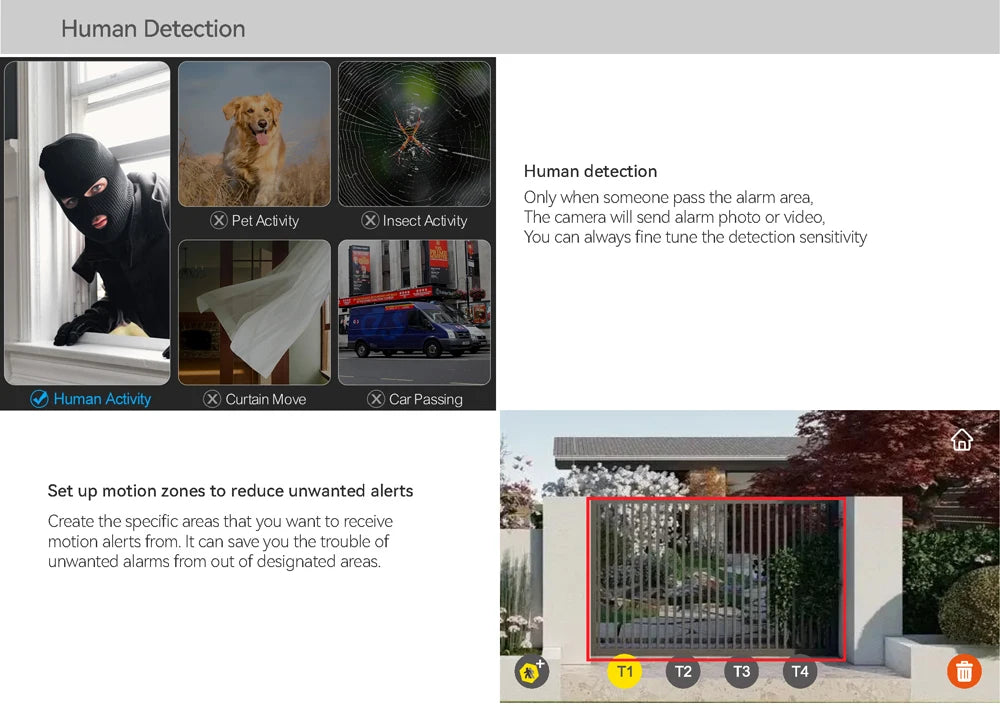

Motion Detection Function

If you open the Motion Detection Function, it will record the video or snapshots automatically, and you can see what happen on your monitor, Which will keep your house more Safe.

Excellent Performance

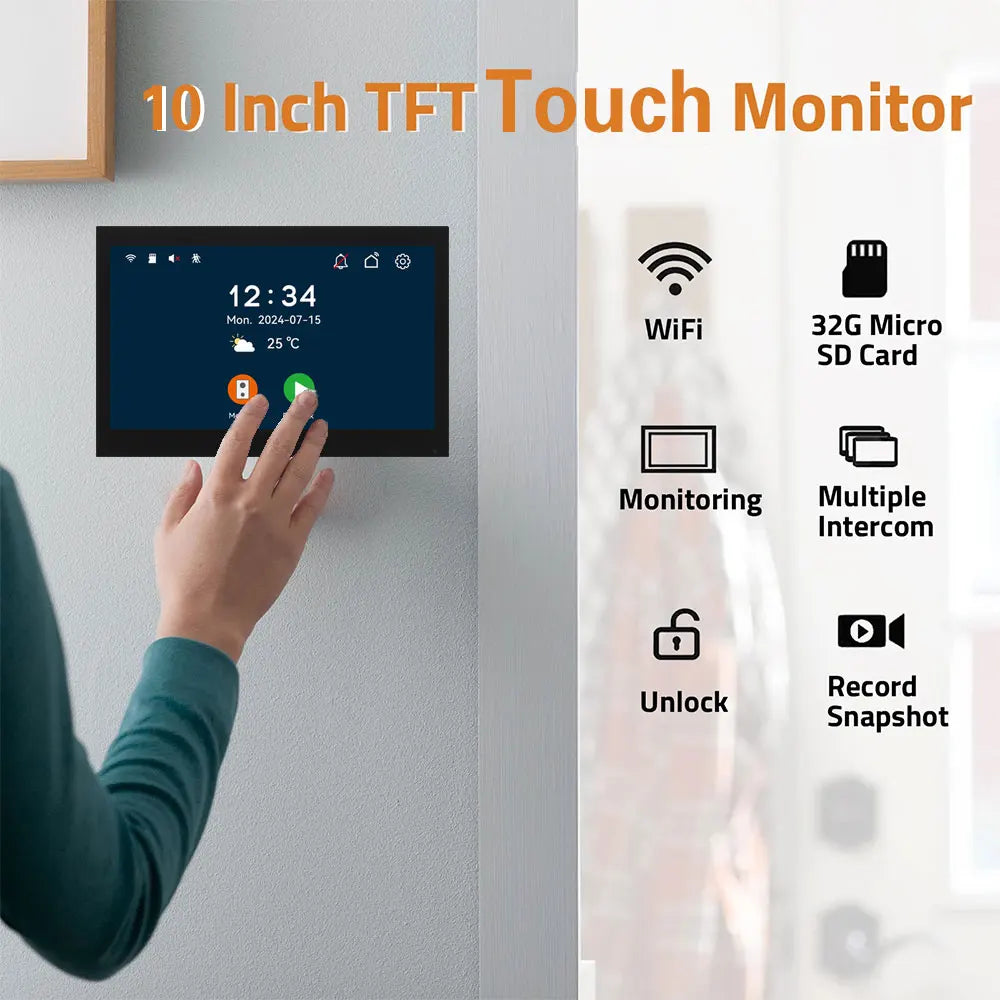

♦10"TFT Display, Acrylic Wire Drawing Panel

♦Touch Button,With Storage

♦Room to Room Intercom

♦Door Answering, Monitoring And Unlocking

♦Adjustable Color, Brightness and volume

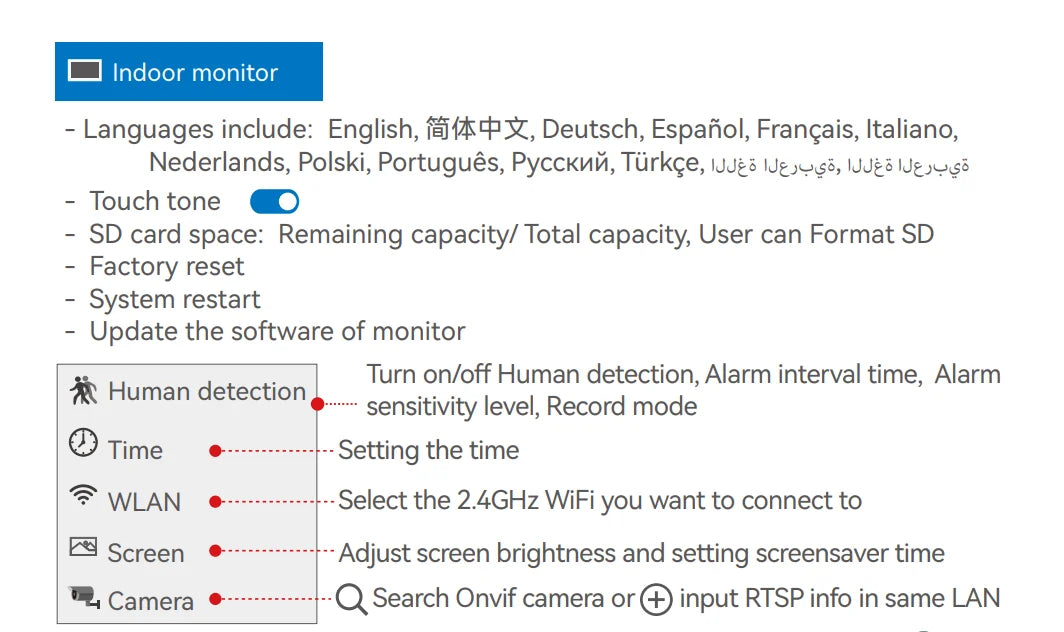

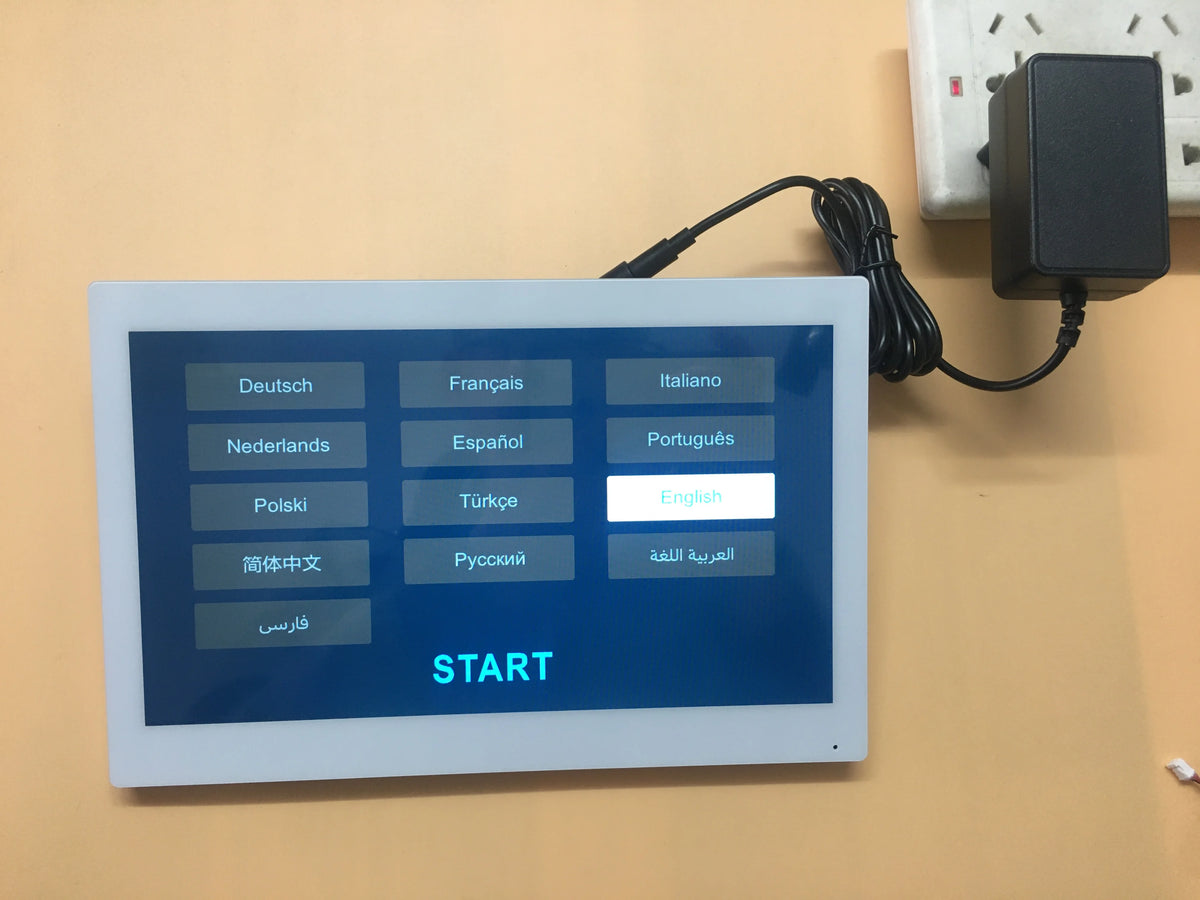

Multi-languages TUYA system

The system supports many different languages: English, Russian, Arabic, French, Spanish, German and other languages

10" Wired Video Door Phone System, Visitors Can Use Call Panel Calls, Then You Use Indoor Monitor Unlocking, Monitoring, Taking Pictures And Recording Video.

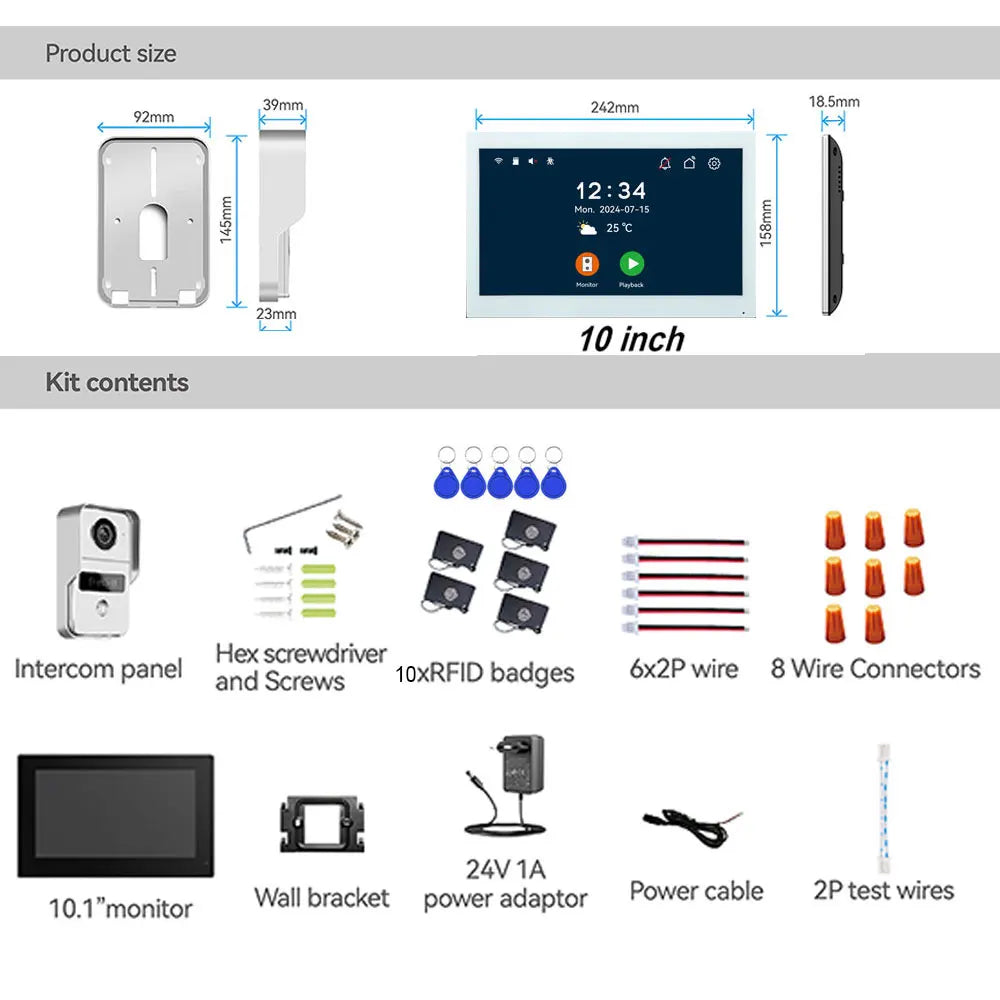

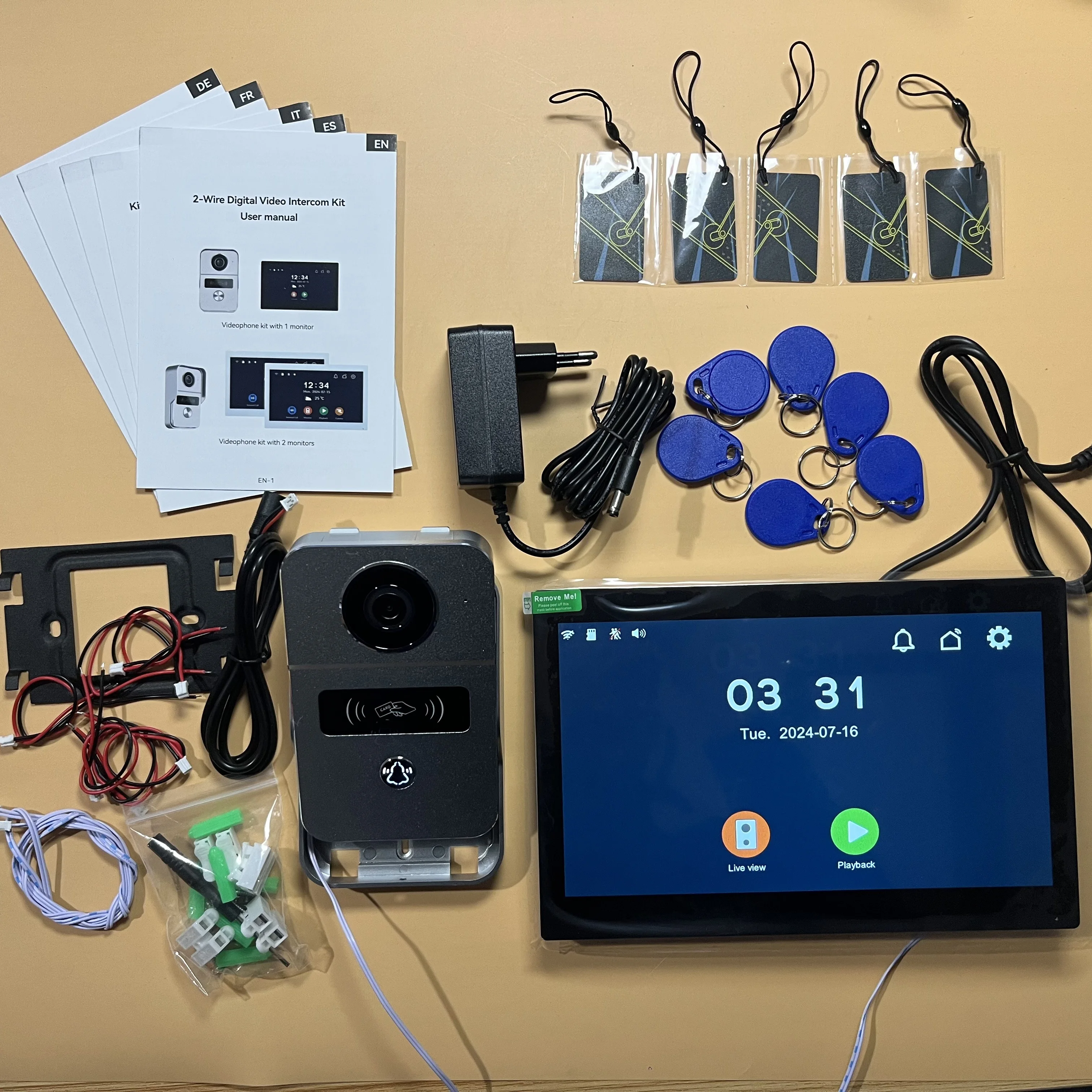

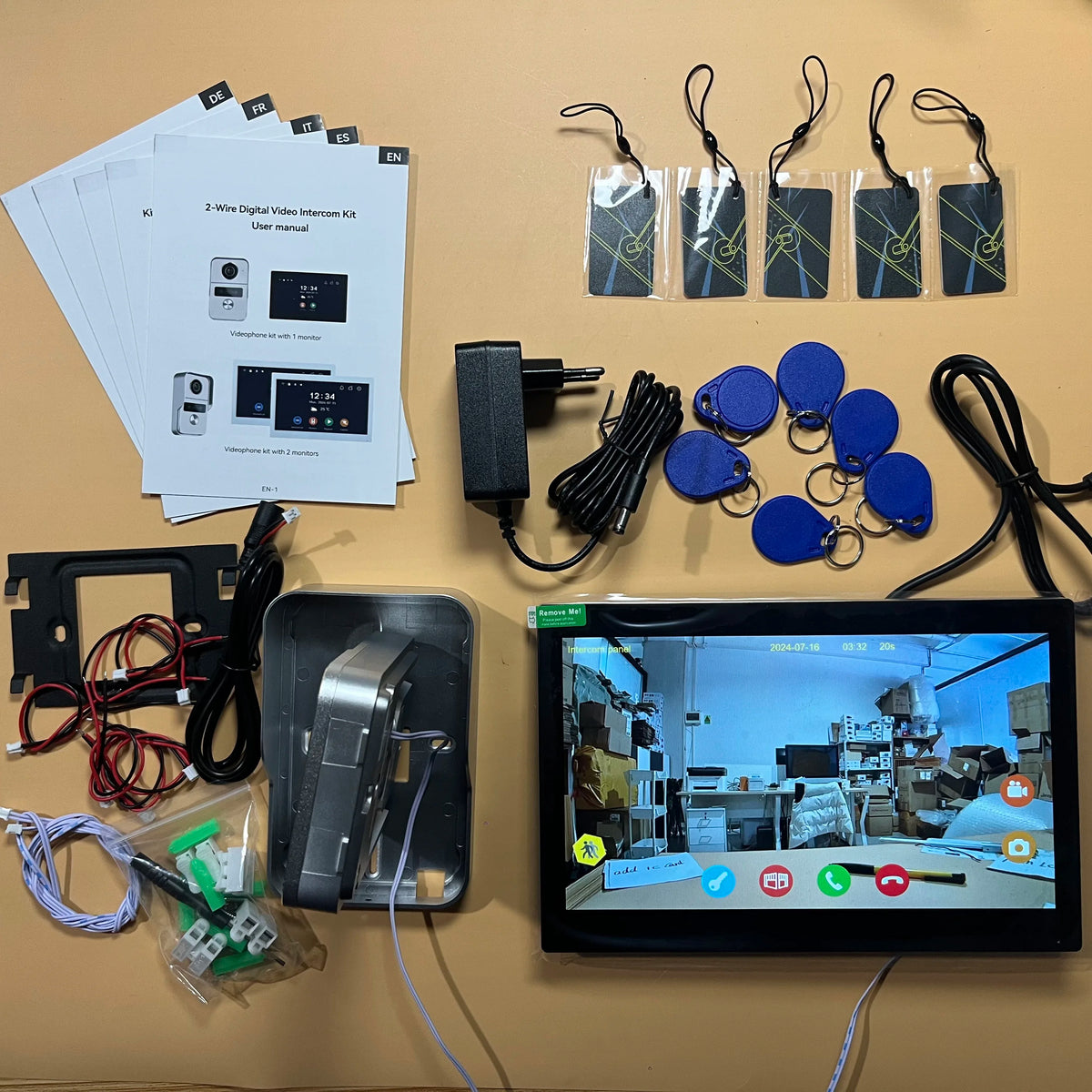

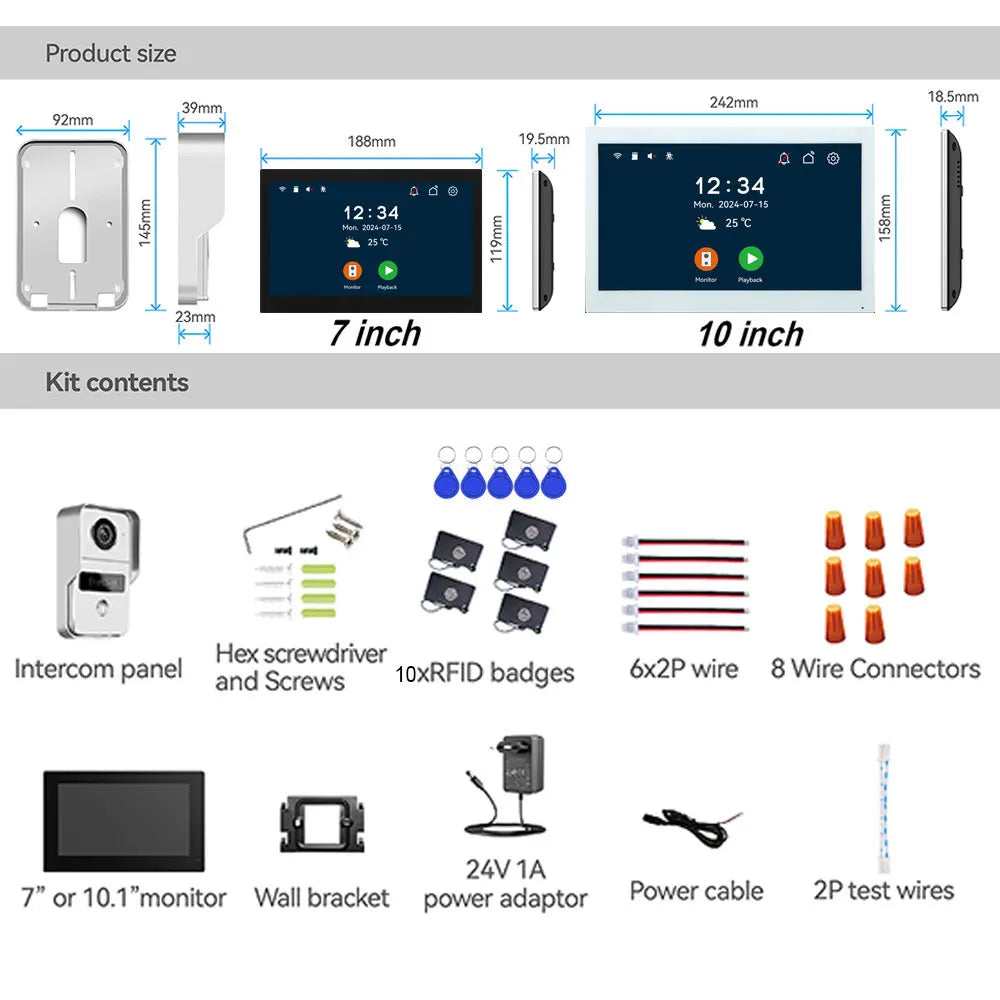

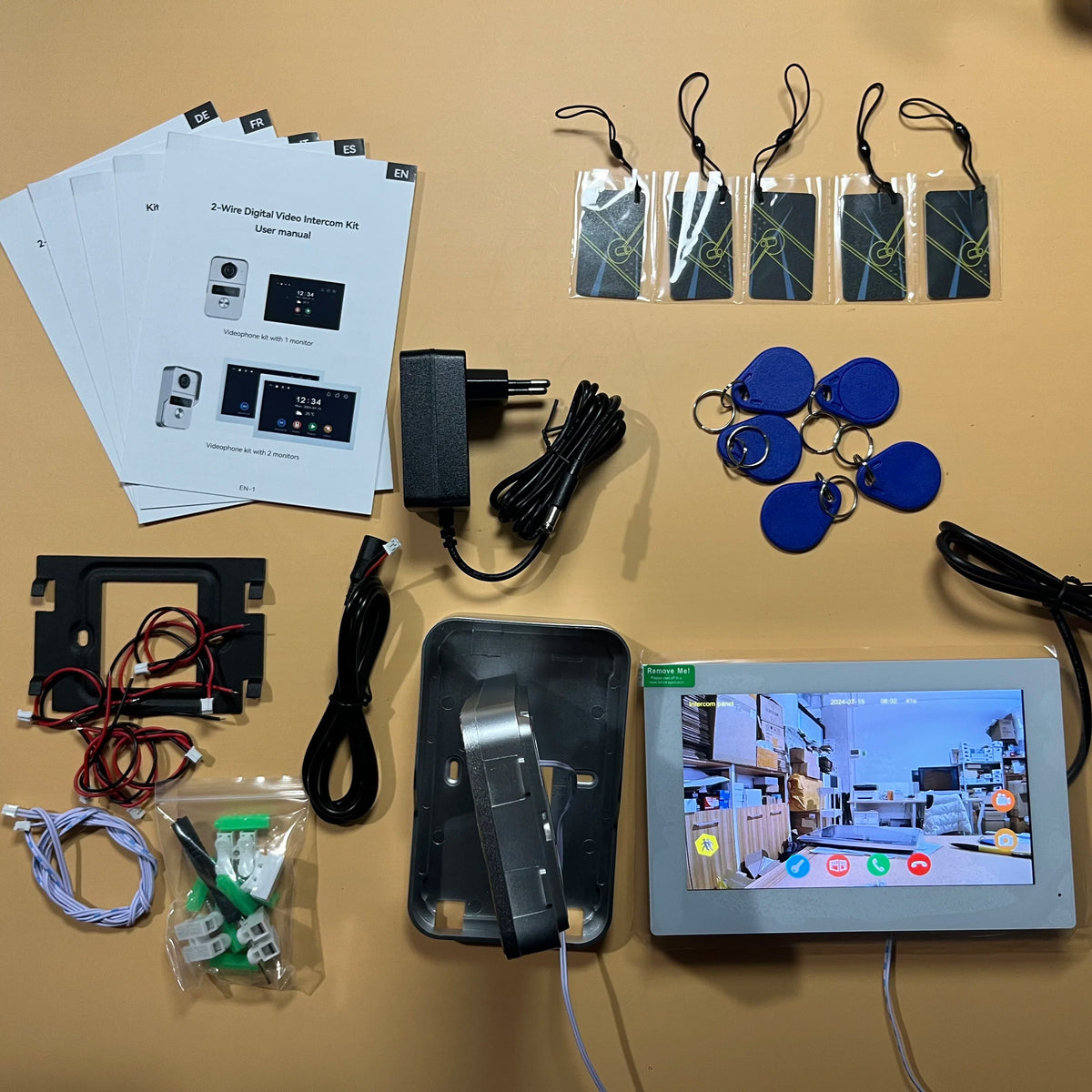

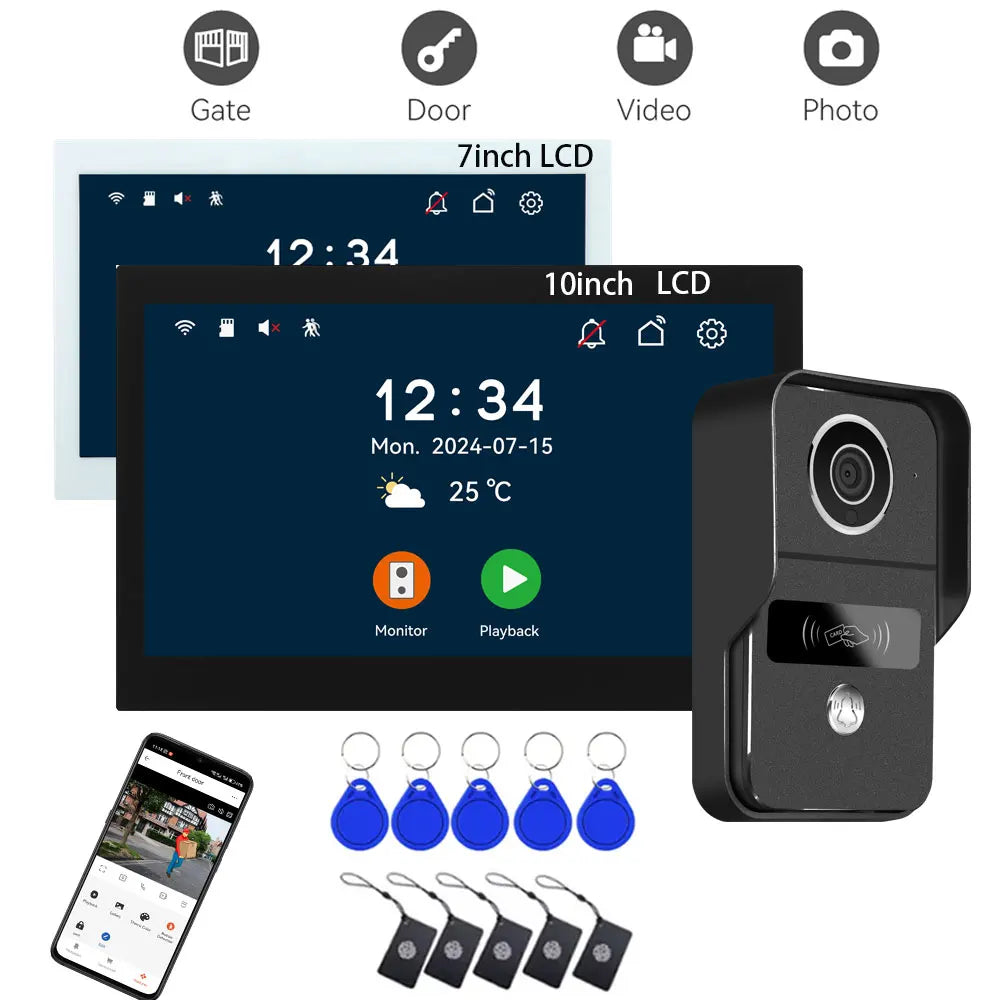

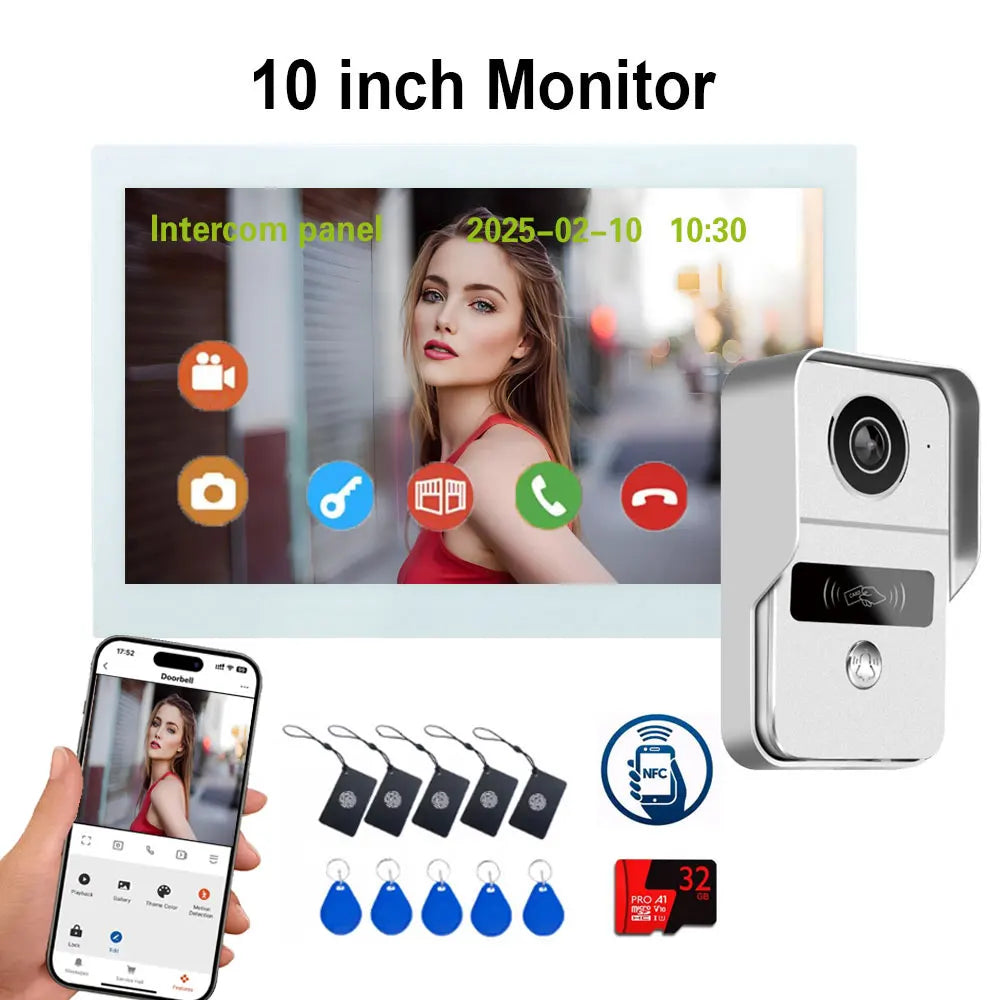

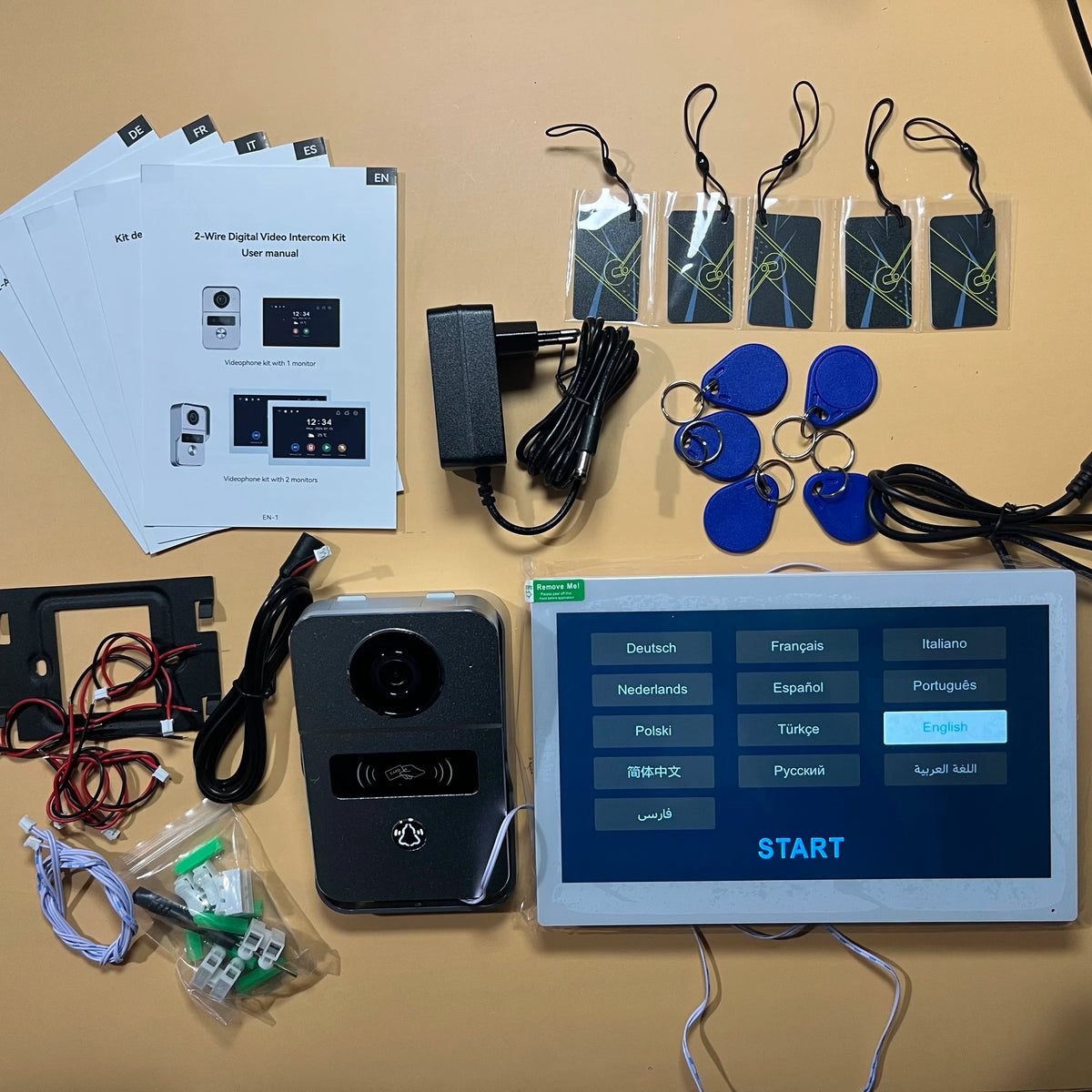

Package Included:

1 x (optional) 7inch / 10inch color Indoor Monitor, Monitor mounting plate

1x Outdoor Doorbell Camera,mounting plate

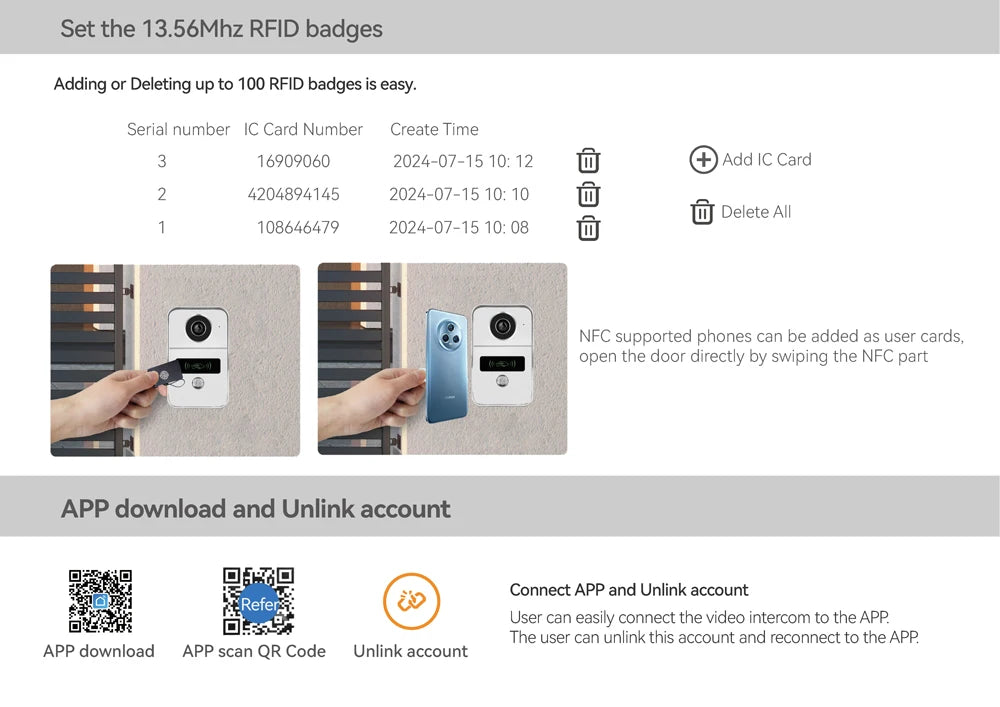

10 x Inductive Card

1x Power adapter

5x 200mm 2 pin connector

1x Screw Bag

1. Use drilsl bit to drill three holes. Through these 2pin wires, use anchors if install outdoor doorbell on brick or concrete.

2. Remove the screws from the rain cover

3. The rain cover is separated from the doorbell

4. These 2pin wires goes through the hole in the wall

5. Fix the rain cover with two screws

6. Put the rain cover on the doorbell and fix the bottom screws

7. Fix the wall bracket to the wall with two screws

8. Insert the MicroSD card into the slot of indoor monitor

9. Connect the other end to the " Last" port of the indoor monitor

10. Connect the indoor monitor to a 24V 1A Plug-In Adapter or DIN Rail Power

11. Hang the indoor monitor on the wall bracket

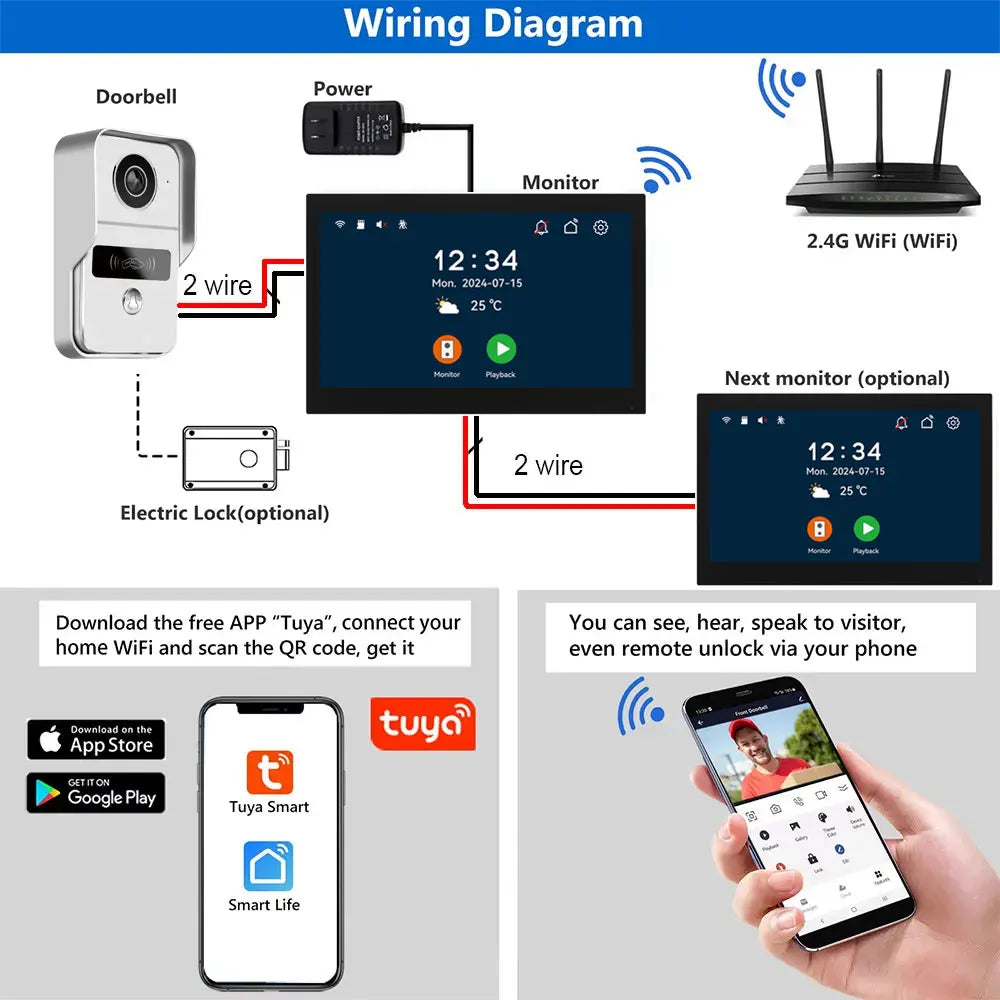

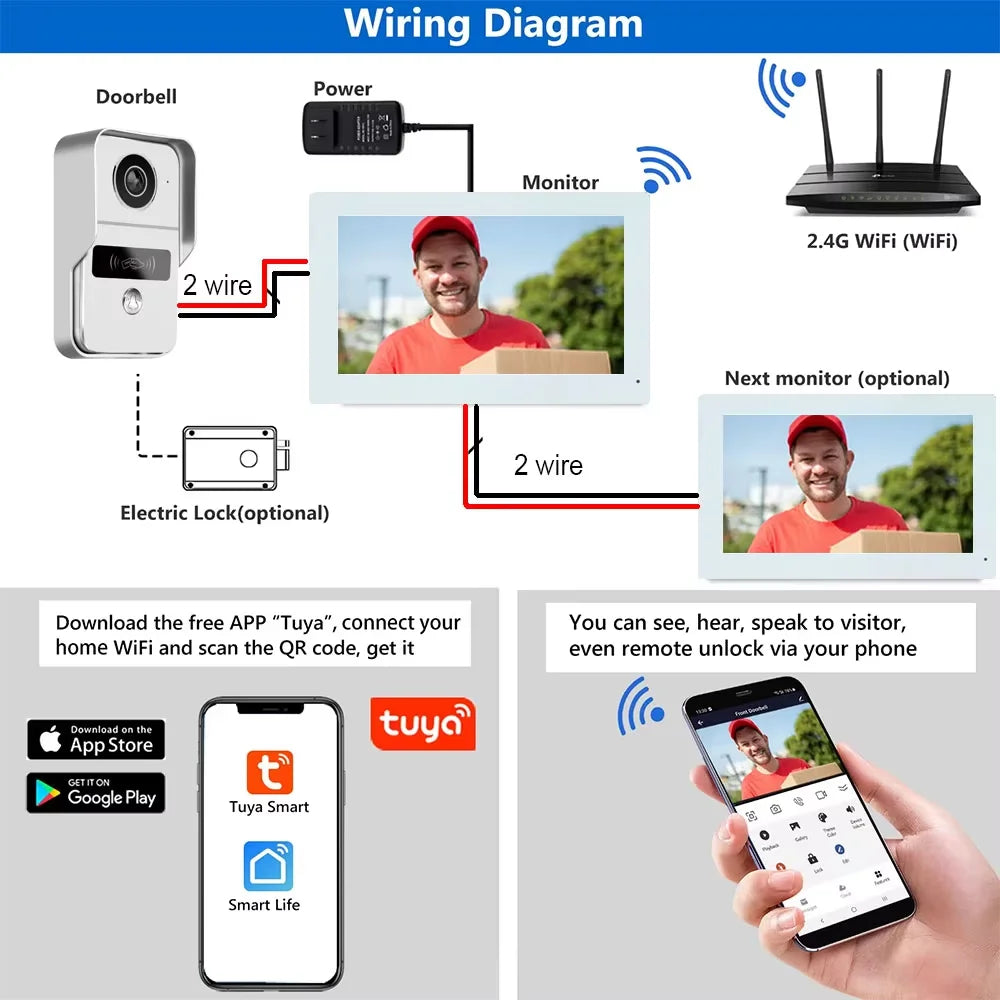

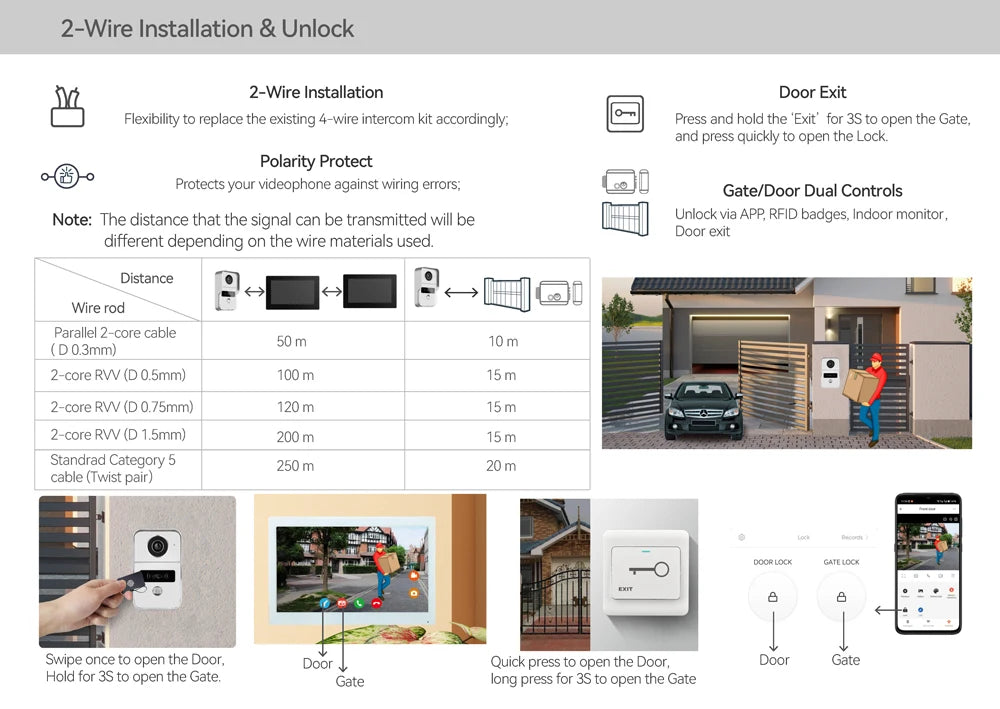

About Wireless Connetion:(2-Wire Installation)

Wifi video intercom system does not mean you don't need wire any cable.The monitor support WIFI network(only connect with 2.4GHZ router band), but the indoor monitor and doorbell is Wired by 2-Wires cable
