SPECIFICATIONS



Backup Battery: 300mAh Polymer Lithium



Battery Life: 30 Hours & Up

Brand Name: wanwaytech

Choice: yes

Display Type: LED

GPS type: GPS Tracker

Gps Module: Yes

High-concerned chemical: none

Human interface input: Buttons

Is it wireless: No

Item Size: 82x32.5x14.8mm

Model Name: GS20

Network: 4G Cat.1 (2G GSM compatible)

Operating Voltage: 9-90V (12V/24V universal)

Product Type: Wired GPS

Screen Size: No screen

Shape: Rectangular

Special Features: Waterproof

semi_Choice: yes



Bullet Points

【4G Cat.1 + 2G Backup】 Quectel EG915U module supports 4G LTE Cat.1 with fallback to 2G GSM. Available in EU (EC) and LATAM (LA) frequency versions.

【Triple-GNSS Positioning】 GPS + Glonass + BeiDou for fast acquisition and accurate location, even in dense urban areas.

【No-Cut Installation】 U-type terminals – connect red to positive, black to negative. No wire cutting, no tools needed. 9-90V wide voltage works with 12V/24V cars, motorcycles, and trucks.

【6,000-Point Offline Cache】 Auto-stores location data when signal drops (garages, tunnels). Seamless upload when network returns – route history stays complete.

【Speed & Geofence Alerts】 Instant phone notifications when speeding or crossing set boundaries.

【Backup Battery】 Built-in 300mAh battery keeps tracking after power disconnection – 2-3 days in sleep mode, 5-7 hours in active mode (10s upload).

【Global Certifications】 CE / FCC / ROHS / ANATEL approved for EU, US, Brazil, and more.

【Pocket-Sized】 82×30.5×14.8mm, only 58g – hide it anywhere.

Product Description

The GS20 is a no-nonsense 4G hardwired GPS tracker for personal vehicles. Two wires, U-type terminals – connect to the battery and you're done. No cutting, no crimping, no professional installation. 9-90V wide voltage means it fits every 12V or 24V vehicle on the road.

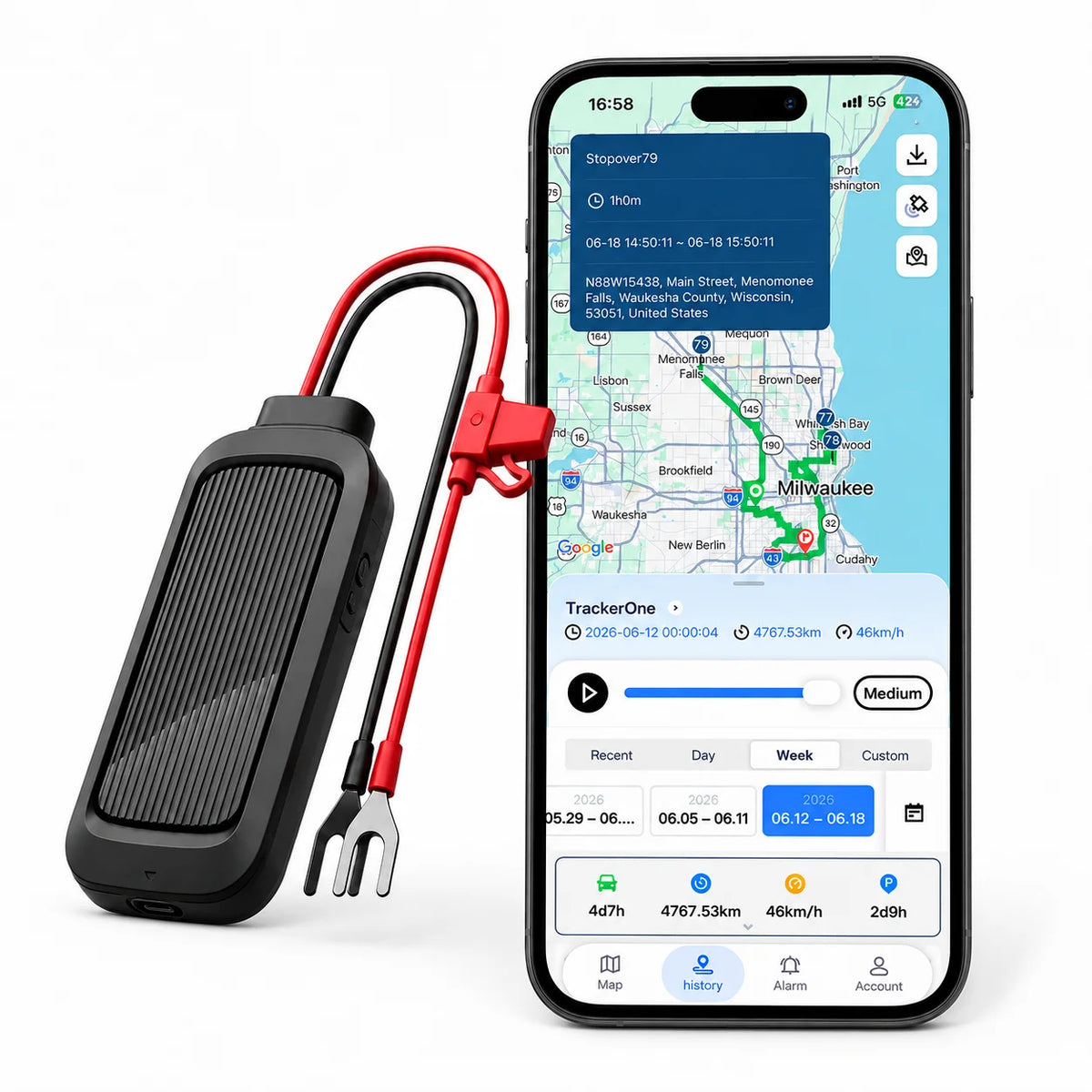

Inside, it packs GPS, Glonass, and BeiDou receivers for rock-solid positioning, paired with 4G Cat.1 for fast data upload. Check real-time location, replay routes, get speed alerts, and set up geofences – all from your phone. Lost signal in a parking garage? The tracker stores up to 6,000 points locally and uploads them automatically when you're back online.

Someone cuts the power? The built-in backup battery keeps reporting. You always know where your vehicle is.

Specifications

Parameter Details

Model GS20

Dimensions 82 × 30.5 × 14.8 mm

Weight 58g

Network 4G Cat.1 (2G GSM compatible)

Module Quectel EG915U

GNSS GPS + Glonass + BeiDou

Voltage 9 - 90V (12V/24V universal)

Backup Battery 300mAh polymer lithium

Offline Cache 6,000 waypoints

Certifications CE / FCC / ROHS / ANATEL

Frequency Bands (select your region):

Version 4G Bands 2G Bands

EU (EC) B1/B3/B5/B7/B8/B20 850/900/1800/1900MHz

LATAM (LA) B2/B3/B4/B5/B7/B8/B28/B66 850/900/1800/1900MHz

Quick Start

① Connect – Red to positive (+), black to negative (-). U-type terminals – no cutting.

② Activate – Scan the QR code on the device to register.

③ Subscribe – Choose a service plan.

④ Track – Use the APP or web portal to monitor, replay routes, and set alerts.

⚠️ Subscription Required

This device requires an active service plan for tracking.

15% OFF on first top-up | 20%-25% OFF on long-term renewals

Plan Price

1 Month $8.99

3 Months $21.99

6 Months $38.99

12 Months $69.99

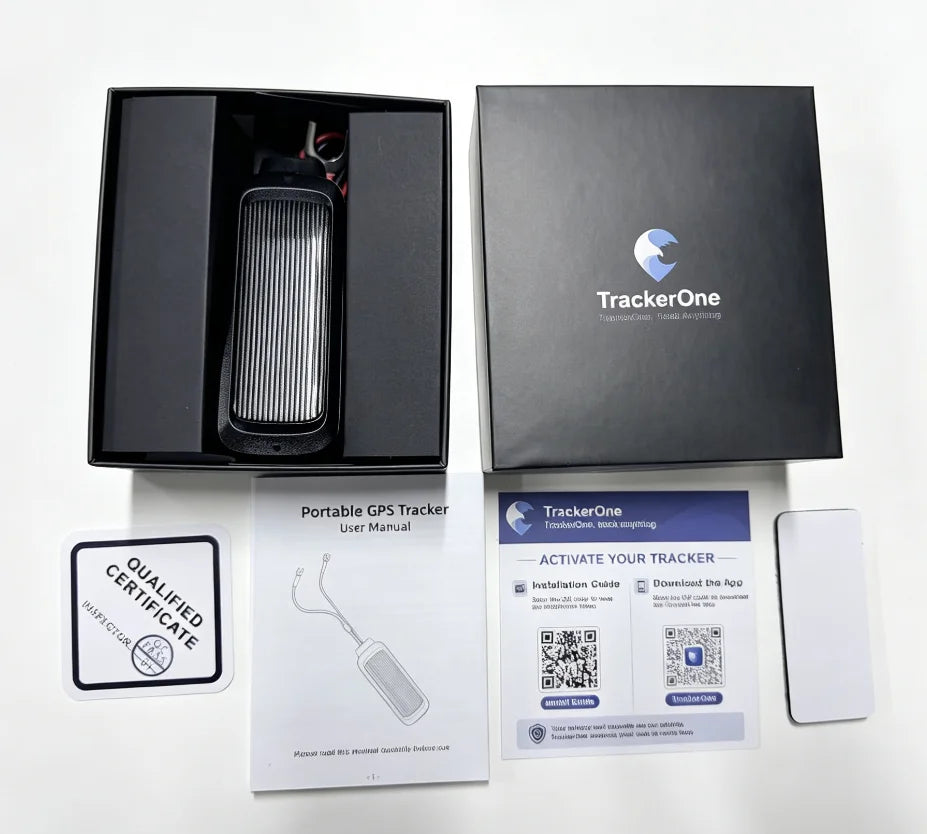

What's in the Box

GS20 Tracker × 1

Double-sided Tape × 1

User Manual × 1

Please check local frequency compatibility before ordering. Subscription includes platform access + data service – no separate SIM card purchase needed.
