SPECIFICATIONS



AI Functions: Motion Detection



APP: CAMHI

Alarm Action: FTP Photo,telefon Alarm,Email Photo

App name: Other

Audio Output: Two Way Audio

Brand Name: NoEnName_Null

Certification: NONE

Color: WHITE

Color Night Vision: Yes

Connectivity: IP/Network Wired

Dimensions (L x W x D)(mm): 110*90mm

High Definition: 5.0 Megapixels

High-concerned chemical: none

IP Rating: IP66

IR Distance(m): 30 Meters

Installation: Ceiling

Internal Storage: None

Item Name: POE ONVIF PTZ Camera

Lens: 4xZoom Optical Lens

Lens (mm): 2.8-12mm

Lens Quantity: Single Lens

Megapixels: 5 MP

Minimum Illumination(Lux): 0.001LUX

Model Number: FQV-PTZIPB5MP01

Movement Range(Pan): 0°-360°

Movement Range(Tilt): Other

ONVIF: Support

Operating Temperature: -10°-60°

Pan Degree: 355 Degree

Power Consumption(W): 10W

Power Mode: Mains Electricity

Power Supply: With Poe

Power Supply(V): DC 12V or POE48V

Rechargeable Battery: NONE

Rechargeable Battery Capability: Other

Scene: Indoor and outdoor

Sensor: CMOS

Sensor Brand: Aptina

Shell Material: Metal

Smart home platform: NONE

Special Features: Waterproof / Weatherproof

Style: Dome Camera

Supported Mobile Systems: Android,iOS

Supported Operating Systems: Windows XP,Windows 7,Windows 8,Windows 10

TF Card: None

Tilt Degree: 90 Degree

Two Way Audio: Support

Video Compression Format: H.264,H.265

Viewing Angle : 360°

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: 4X

Zoom type: Optical zoom

is_customized: Yes







Features:



* Metal Dome Material. Vandalproof and Waterproof, IR range reach up to 30 Meters

* Pan Range: 0°~355°, Pan Speed: 25°/s, Tilt Range: 0°~90°, Tilt Speed: 20°/s

* ONVIF2.4;Support P2P function

* Support H.265 (H.264)compression

* DC 12V or POE Optional





ONVIF	Support
Zoom	4xZoom
Focus lens	2.8-12 Motorized varifocal Lens
Day/night mode	Automatic /multicolour /monochrome
Focus mode	Automatic/ manual
Noise-signal ratio	2D/3D-DNR
Back light compensation	Off/on
White Balance	Automatic/ manual
Electronic shutter	1/25s ~ 1/300000s
Gain control	Automatic/ manual
Min illumination	0lux (IR ON)
Wide dynamic range	Support
Network parameter:
Double stream	1080p+D1
Heartbeat function	Support
Security mechanism	Password protection, multi user access is controlled
Communications protocol	TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,
	UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6
	(SIP,SRTP,optical), ONVIF
Double stream	Support
Interface	One network interface, one power input
Infrared lamp:
IR View Distance	4 Pieces high power array LEDs with IR
IR lamp control	30meters
IR lamp consumption	Automatic  /manual / camera
Bullet IP Camera :
Pan speed	Pan speed:0.5°~15°/s,speed is settable;pan preset speed:20°/s
Tilt speed	Tilt speed:0.5°~10°/s ,speed is settable;Tilt preset speed:20°/s
Rotation	Pan: 355° continuous rotation; Tilt: 0°~90° auto flip
Preset	256 presets ( Chinese title)
Auto Scan	8 groups, settable boundaries and scan speed
Auto Cruise	8 groups, each with 32 presets with settable time interval
Pattern Tour	4 groups, each with 500 instructions
Video analysis	Support
Auto tracking	Not Support
OSD menu	OSD menu with Chinese and English
Heat dispersion structure	Out Cool Air Circulation to Sink the Heat Technology
Supply voltage	DC12V 2A or POE Optional
Levels of protection	IP66/ level 2  lightning protection,4000V prevent  thunderbolt surges design
Working temperature	-35C ~ +55C
Working  humidity	<90%,No condensation







Easy Setting, and Remote Viewing, Anytime, from Anywhere

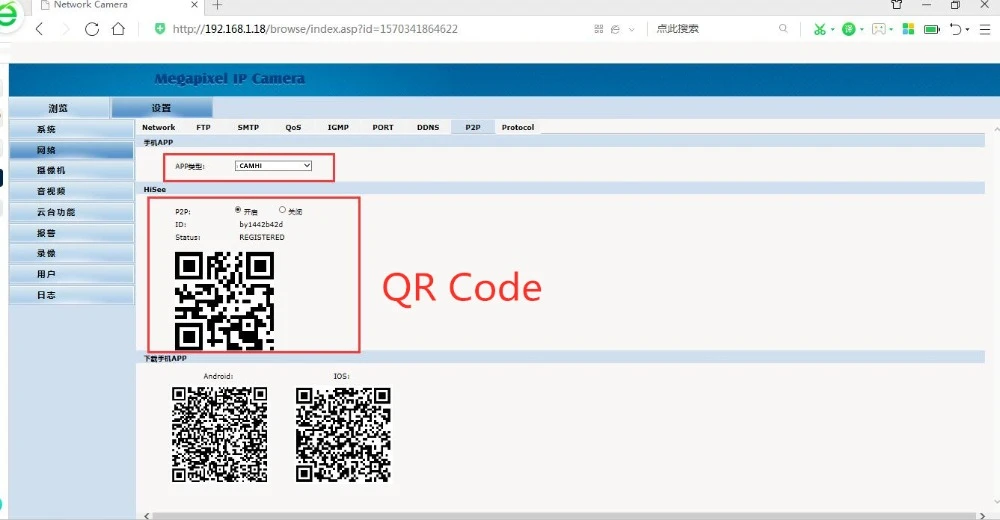

1-Get QR Code on your broswer

2- Download "CAMHI" and add camera with 6 steps







4xZoom (2.8-12mm Zoom Varifocal Lens).







1* Pieces IP PTZ Camera
