SPECIFICATIONS

AI Functions: Vehicle Detection

APP: Guarding Vision

Alarm Action: FTP Photo,telefon Alarm,Email Photo,Local Alarm

Alarm Type: FTP Photo,Email Photo

Audio Output: 1CH BNC

Brand Name: anpviz

Certification: CE

Color: WHITE

Color Night Vision: Yes

Connectivity: IP/Network Wired

Dimensions (L x W x D)(mm): 15*15*14cm

High Definition: 8.0 Megapixels

High-concerned chemical: none

IP Rating: IP67

IR Distance(m): Up to 30m

Installation: Ceiling

Lens (mm): 2.8mm

Lens Quantity: Single Lens

Megapixels: 8MP

Minimum Illumination(Lux): 0.005 Lux

Model Number: IPC-D3083WD-S /IPC-D3053WD-S

Operating Temperature: -10°-60°

Power Consumption(W): Max 5W

Power Supply: With Poe

Power Supply(V): DC 12V

Scene: Indoor and outdoor

Sensor: CMOS

Sensor Brand: Sony

Shell Material: Metal

Smart home platform: Other

Special Features: Waterproof / Weatherproof

Style: Turret Camera

Supported Mobile Systems: Android,iOS

Supported Operating Systems: Windows 7,macOS,Windows 8,Windows 10

TF Card: None

Video Compression Format: H.264,MPEG4,H.265

Viewing Angle : 100°

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: NONE

Zoom type: Optical zoom

is_customized: Yes

Anpviz 4K Smart Hybrid Light Fixed Turret Network Motion Detection 2.0 Camera

8MP Ultra HD Smart Dual Light Night Vision: With a resolution of up to 3840x2160@15fps, this 4k poe camera offers crisp images and video. Equipped with infrared and warm light sources, the upgraded 8MP poe camera ensures clear imaging in a wide range of lighting conditions. At night, when a person or vehicle is detected, warm lights illuminate, providing a color image. In the absence of objects, it switches to infrared mode for a clear black and white image.



Human/Vehicle Detection with Smart Alerts: This 8mp ip camera uses advanced artificial intelligence detection technology to identify people or vehicles by shape, minimizing unwanted alarms such as animals or shadows. It can also specify the type of detection when motion alerts are sent to you, so you can know what's going on just by glancing at your phone's screen.



Unidirectional Audio and Advanced H.265+ Coding: This 4k ip camera is equipped with a microphone that allows you to listen to family, friends, and pets and spot intruders from a distance. Latest H.265+ compression technology It can record more video and consume less bandwidth. Enjoy up to 512GB of storage SD (SD card not included). Store and record daily events. Your footage will be with you as a safe secret and keep your home and loved ones safe.

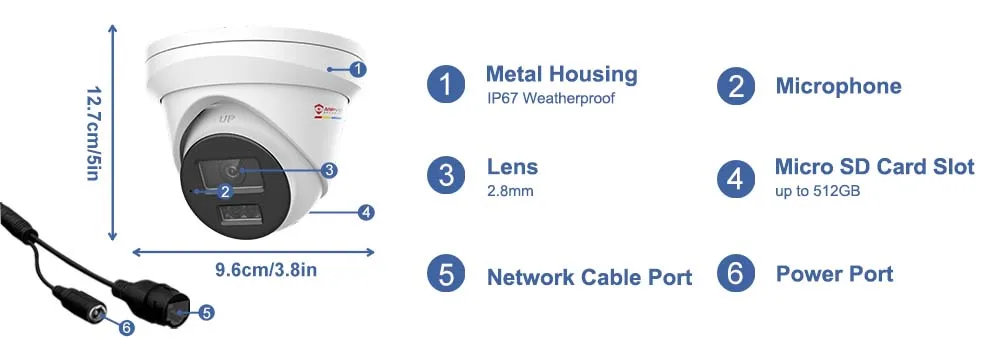

IP67 Waterproof with Metal Housing: This 4k poe security camera has an IP67 weatherproof rating and can operate indoors or outdoors from -4°F/-30°C to 140°F/60°C. The metal casing is also highly corrosion-resistant to keep your family and business safe at all times

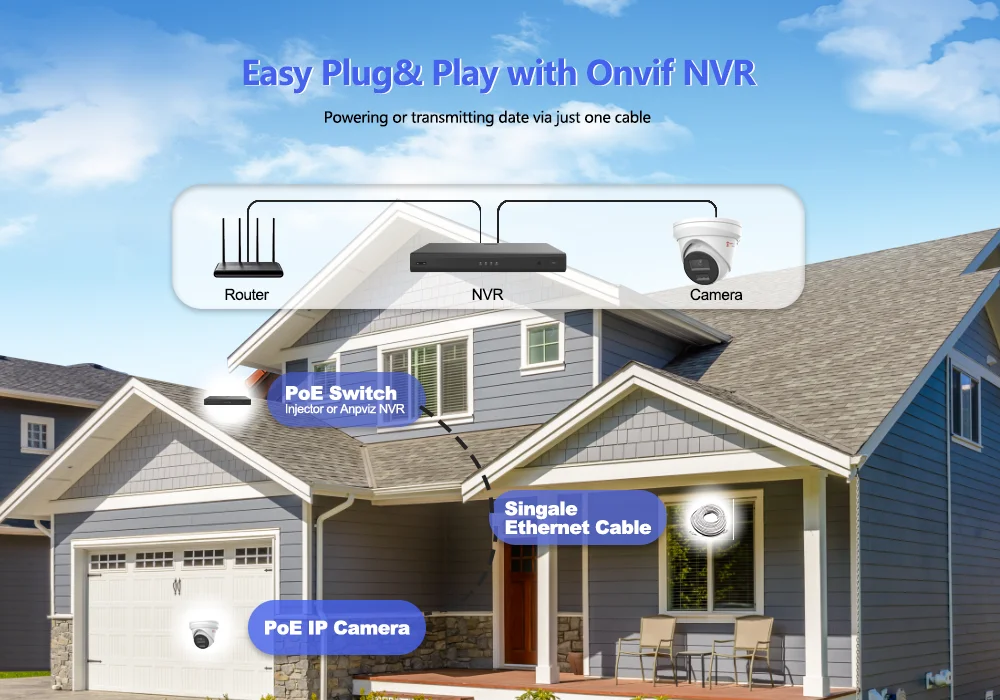

Multiple Working Solutions: Plug & Play with all Anpviz H Serie NVRs (8CH, 16CH, 32CH, 64CH) for optimal performance. Enjoy compatibility with 3rd-party NVRs and software via on-vif protocol, such as ISpy, Blue-Iris. Synology and Mile/stone. It's viewable on web browsers like Edge, Chrome, and Firefox(Only Windows).

•






Q:Can I use it with DC 12V or PoE?

A:Yes, Camera support DC12V Or DC48V PoE Swtich or PoE NVR

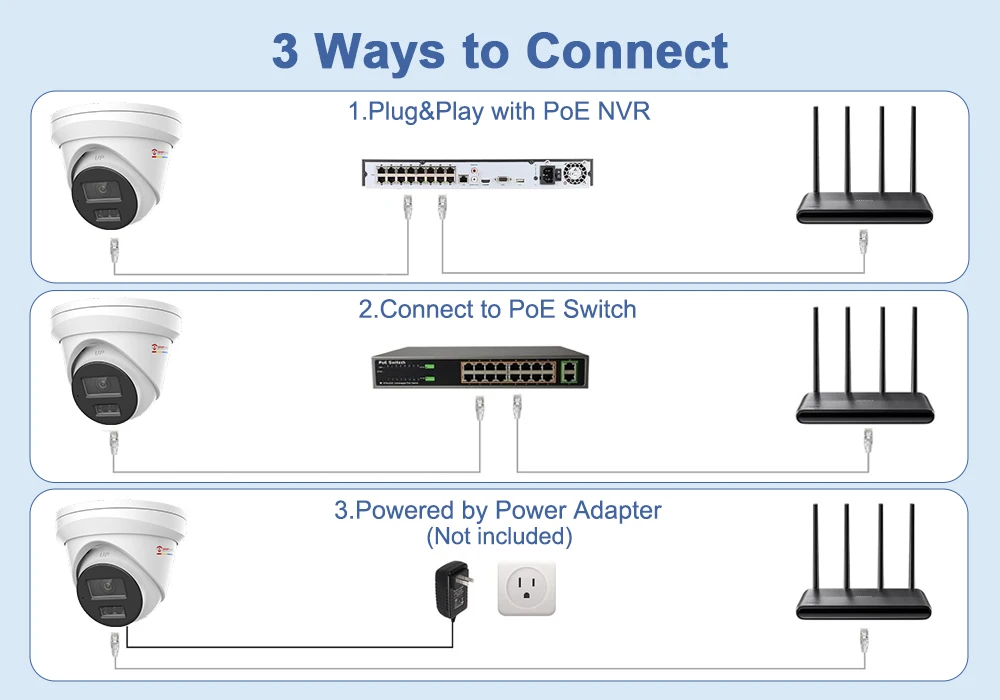

Q:How to power the camera?

A:This is a POE camera, it can get the power by using a ethernet cable to connect it to a NVR PoE or PoE Switch. or using DC 12V powered

Q:This camera works with hikvision's NVRs?

A:Yes, it's ok

Q:Can this camera connect NVR?

A:Yes, all NVRs or VMSs that support the onvif protocol can be connected

Q:This is camera work with wired or wi-fi network？

A:If this camera is used alone, it needs to be connected to the router with a network cable.

Q:Can this camera be hardwired?

A:The camera needs to use a POE network cable for power supply and transmission.

Q:I can't connect the camera, I connected it as shown in the instructions, what am I doing wrong?

A:Hello, please make sure your camera is powered on and connected to your router or NVR correctly? If you need troubleshooting please contact us at support@anpvizsecurity.com.
