⚠️Note:

✅Only the base of models "11-in-1 For WIN" and "11-in-1 For MAC" support magnetic attachment function.

❎The base of model "12-in-1 For WIN" and "12-in-1 For MAC" does not support magnetic attachment function.







Baseus

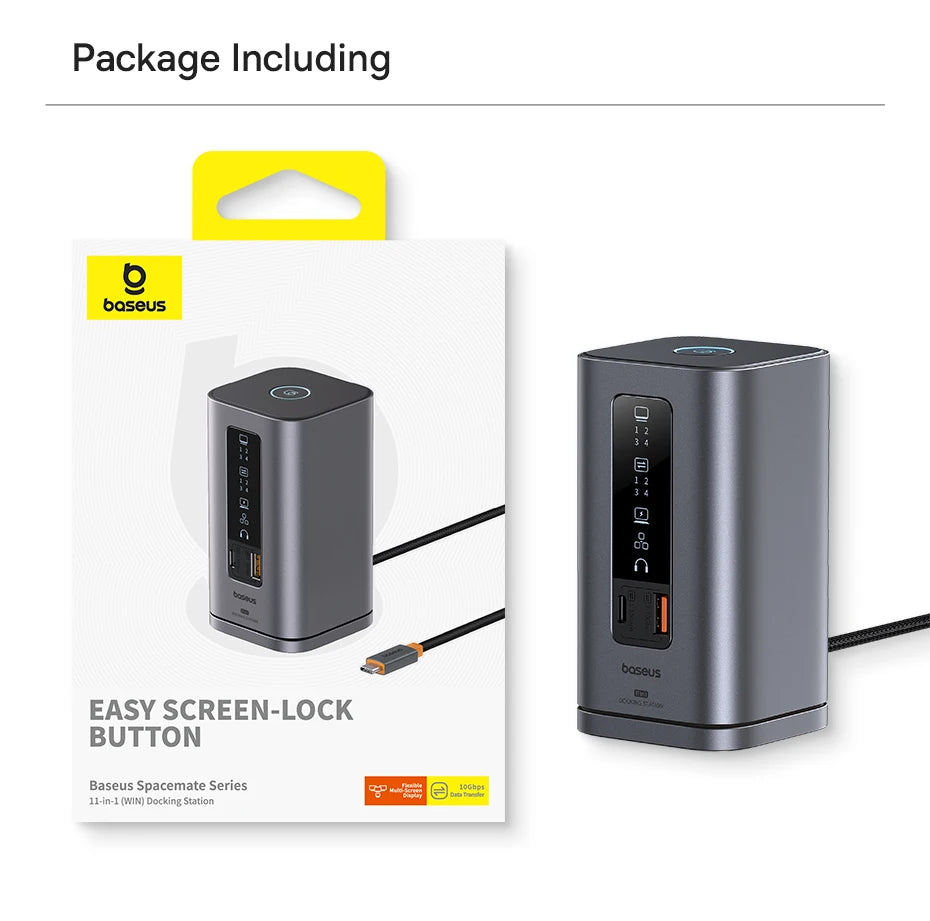

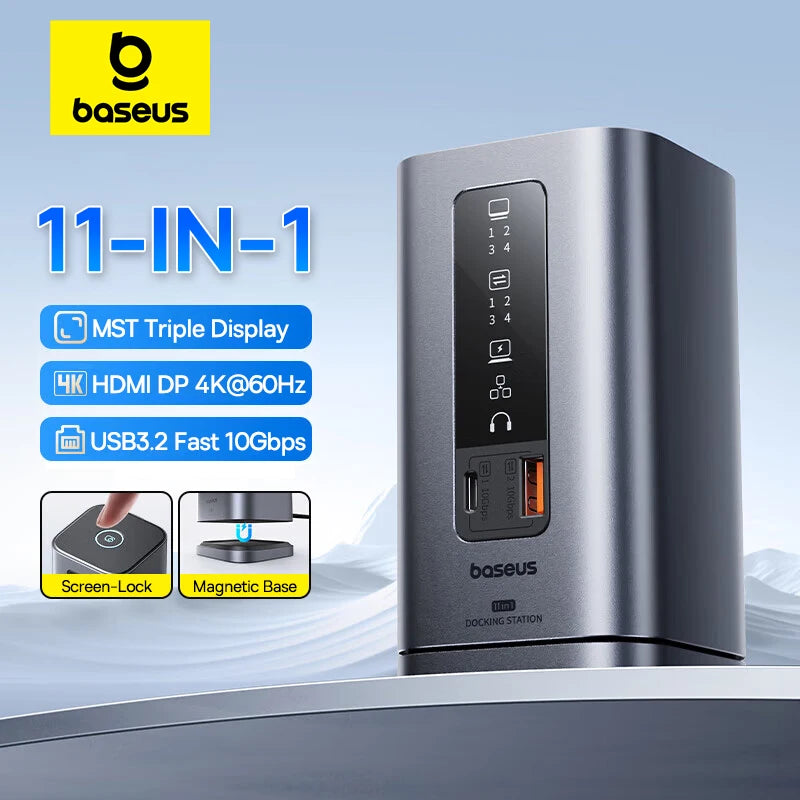

Baseus Spacemate Series 11-in-1 (WIN) Docking Station



-----------------------------------------------------



Elegance and Power, Crafted in One

①11-in-1 ②Triple Display ③10Gbps

④PD 100W ⑤Upright Design ⑥Screen-Lock Button

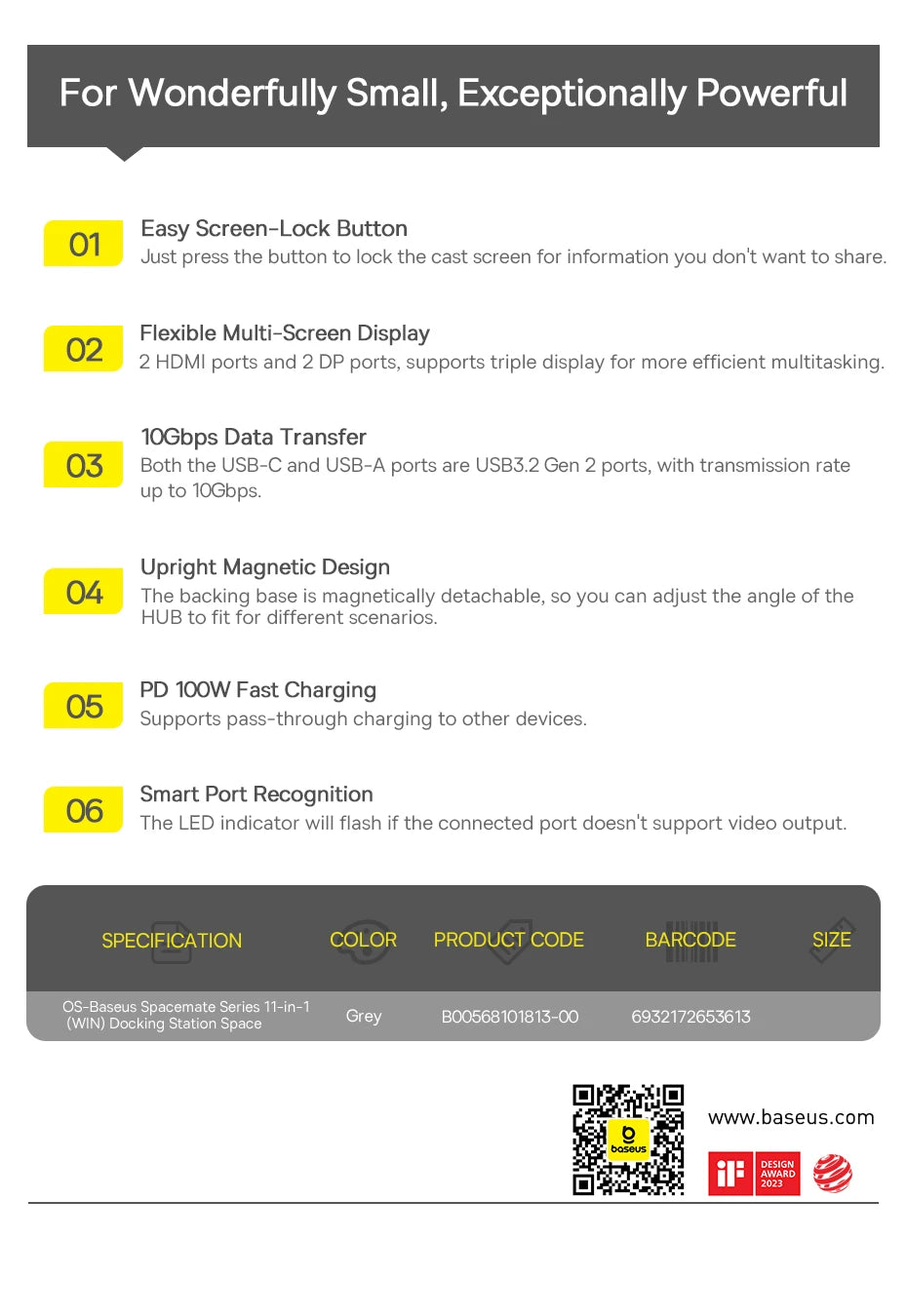

①【Easy Screen-Lock Button】Just press the button to lock the cast screen for information you don't want to share.

②【Flexible Multi-Screen Display】2*HDMI ports and 2*DP ports, supports triple display for more efficient multitasking.

③【Upright Magnetic Design】The backing base is magnetically detachable, so you can adjust the angle of the HUB to fit for different scenarios.

④【10Gbps Data Transfer】Both the USB-C and USB-A ports are USB3.2 Gen 2 ports, with transmission rate up to 10Gbps.

⑤【PD 100W Fast Charging】Supports pass-through charging to other devices.

⑥【Smart Port Recognition】The LED indicator will flash if the connected port doesn't support video output.

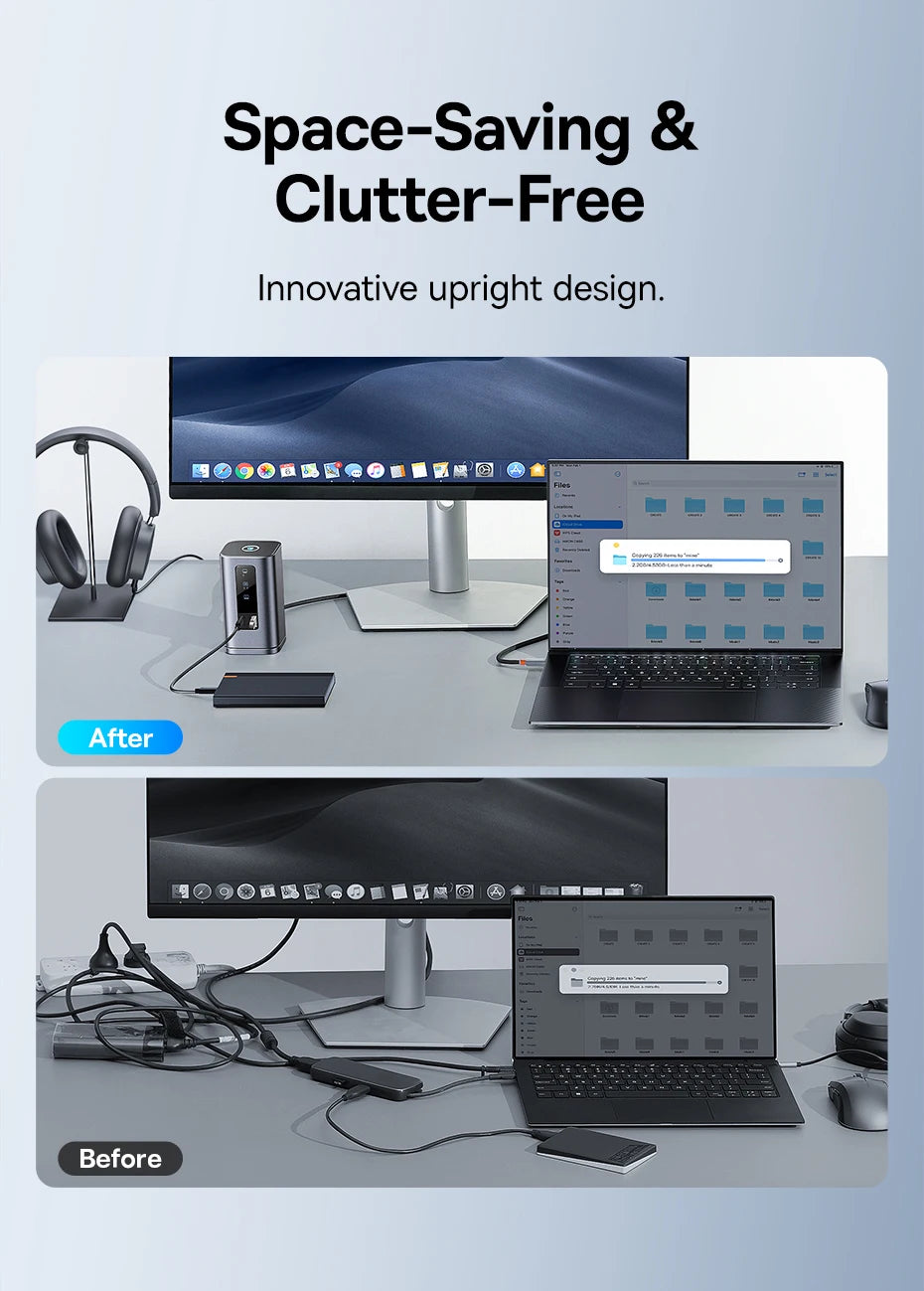

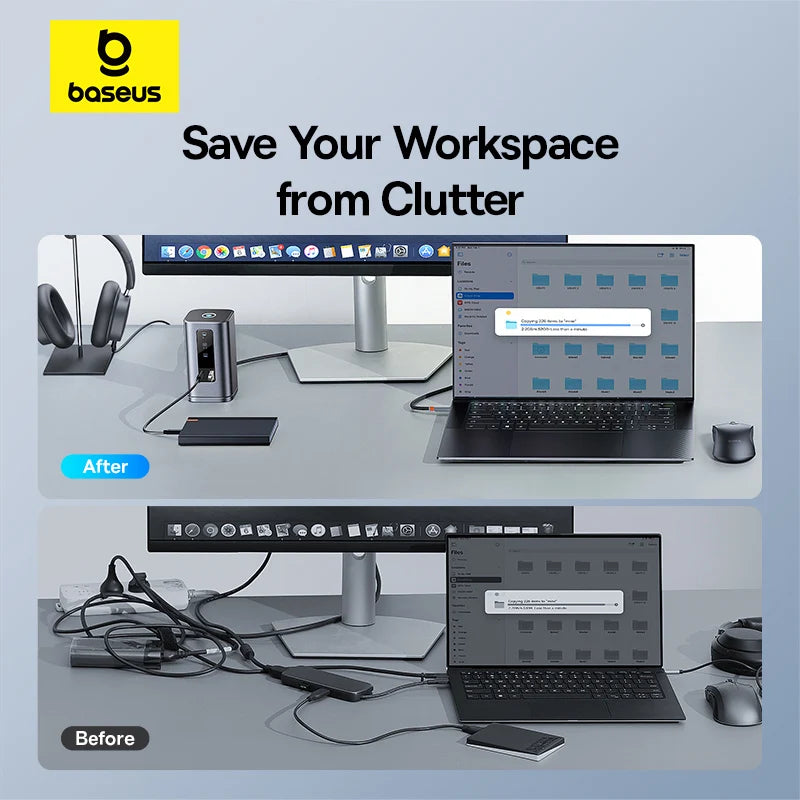

Space-Saving & Clutter-Free

Innovative upright design.

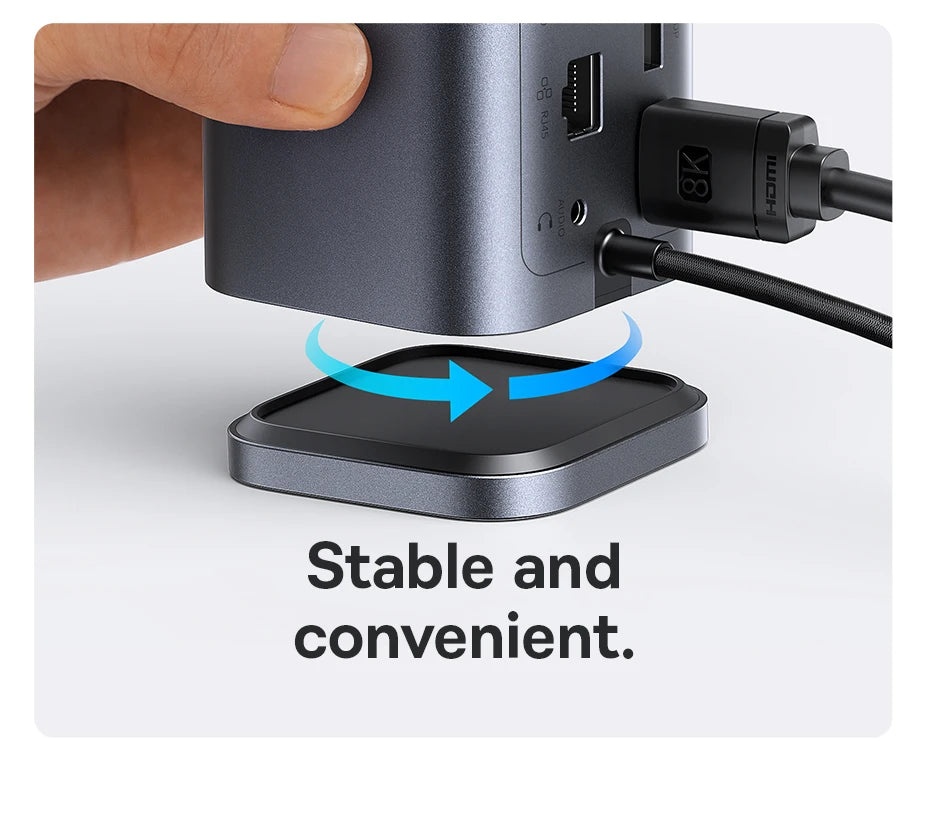

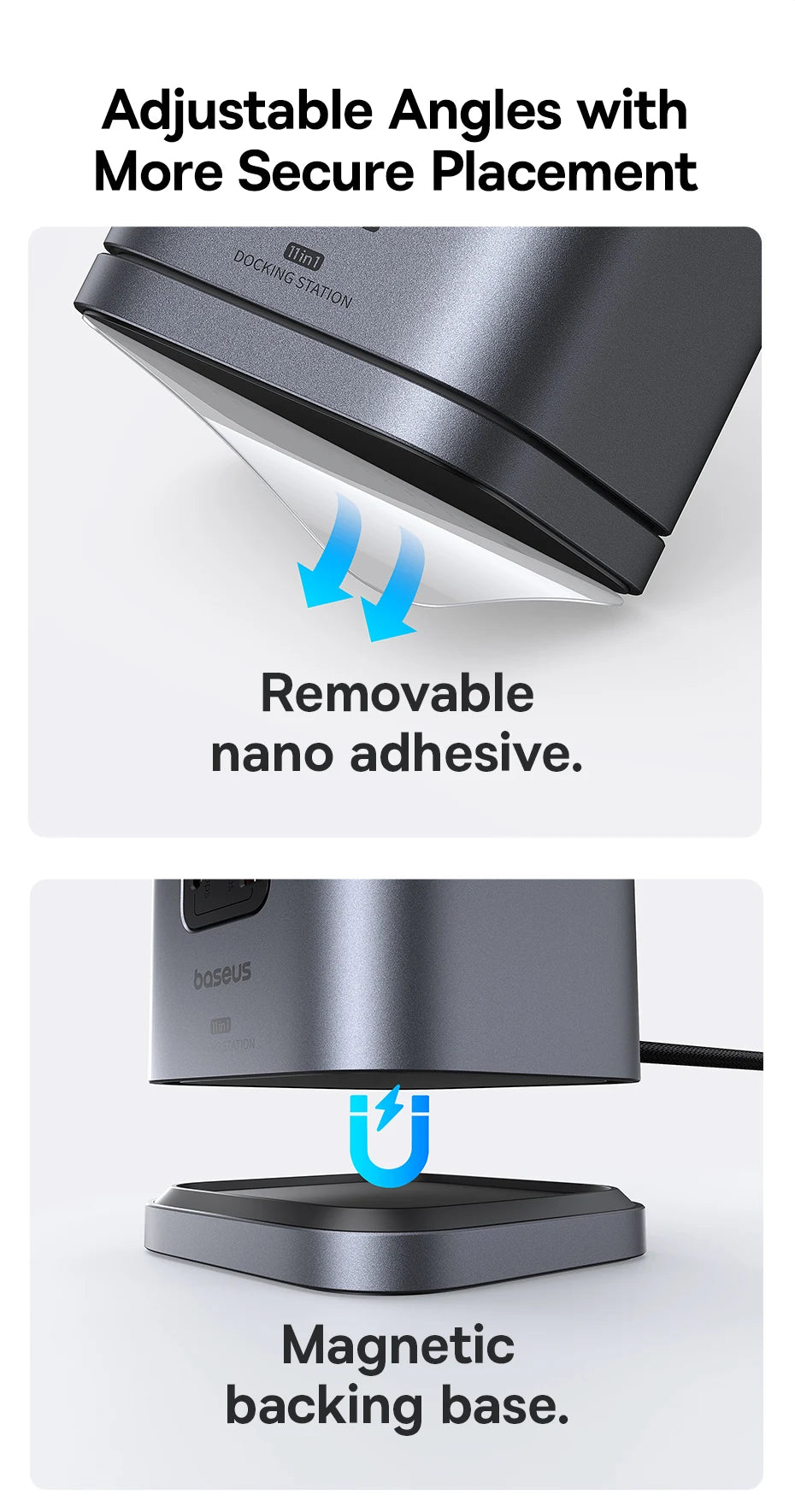

Adjustable Angles with More Secure Placement



✅Removable nano adhesive

✅Magnetic backing base

✅Flexible and convenient.

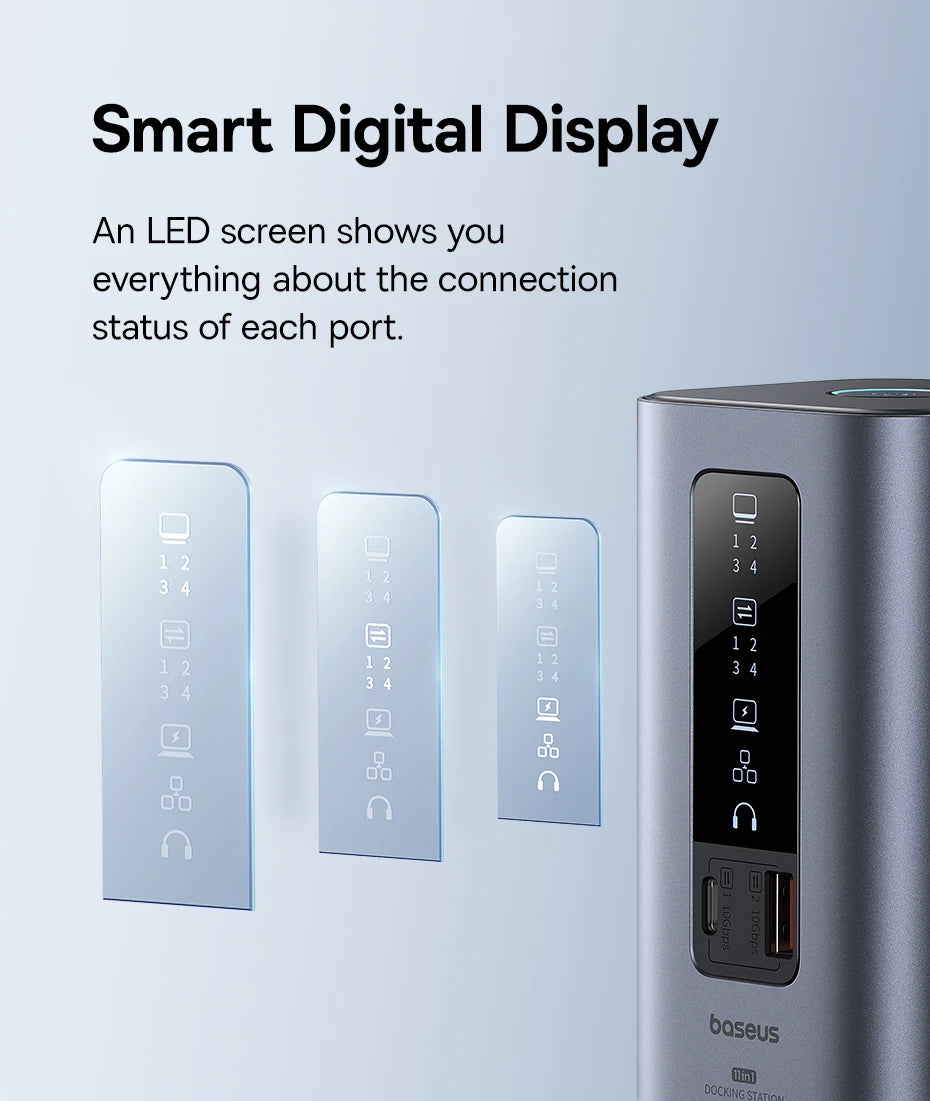

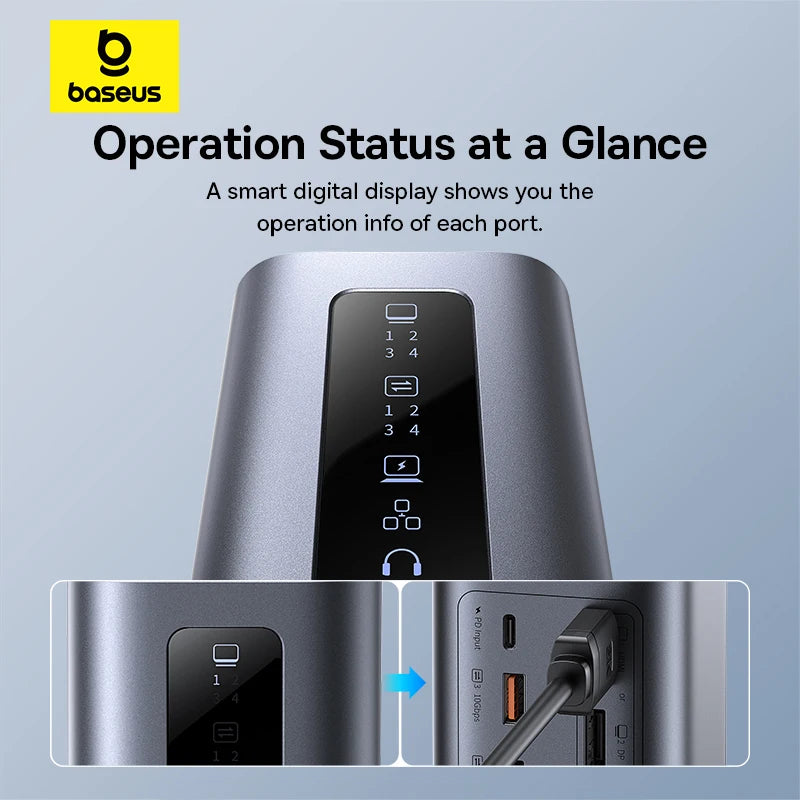

Smart Digital Display

An LED screen shows you everything about the connection status of each port.

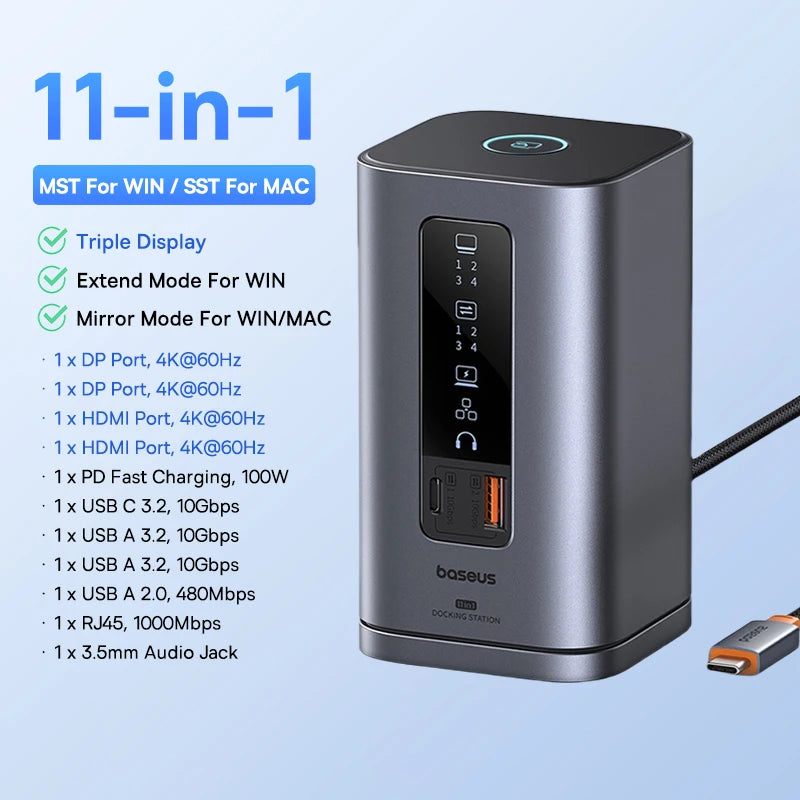

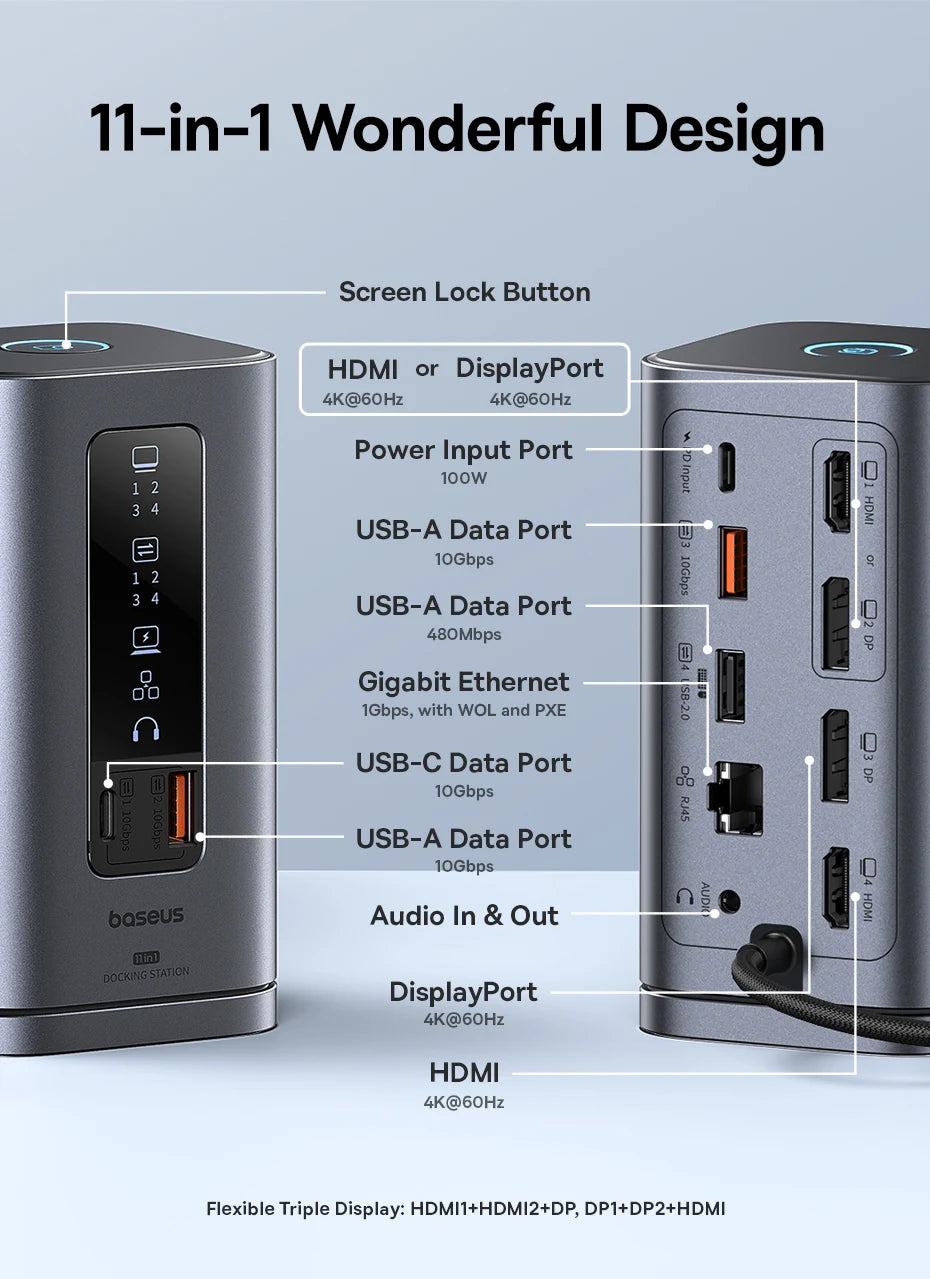

11-in-1 Wonderful Design



Top Button: For Screen-Lock Function

2 x Video DisplayPort: 4K@60Hz (Max.)

2 x Video HDMI: 4K@60Hz (Max.)

1 x USB-C 3.2 Data Port: 10Gbps (Max.)

2 x USB-A 3.2 Data Port: 10Gbps (Max.)

1 x USB-A 2.0 Data Port: 480Mbps (Max.)

RJ45 Gigabit Ethernet: 1000Mbps

3.5mm Audio Jack: Audio in & out

USB-C (PD) Power Input Port: 100W input (Max.)

Flexible Triple Display: HDMI1+HDMI2+DP, DP1+DP2+HDMI

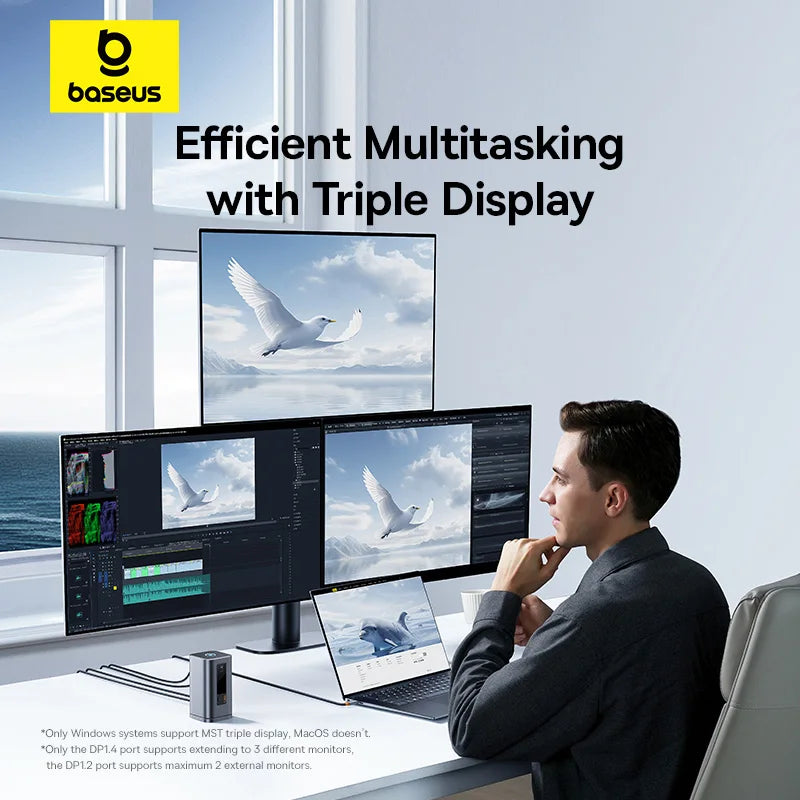

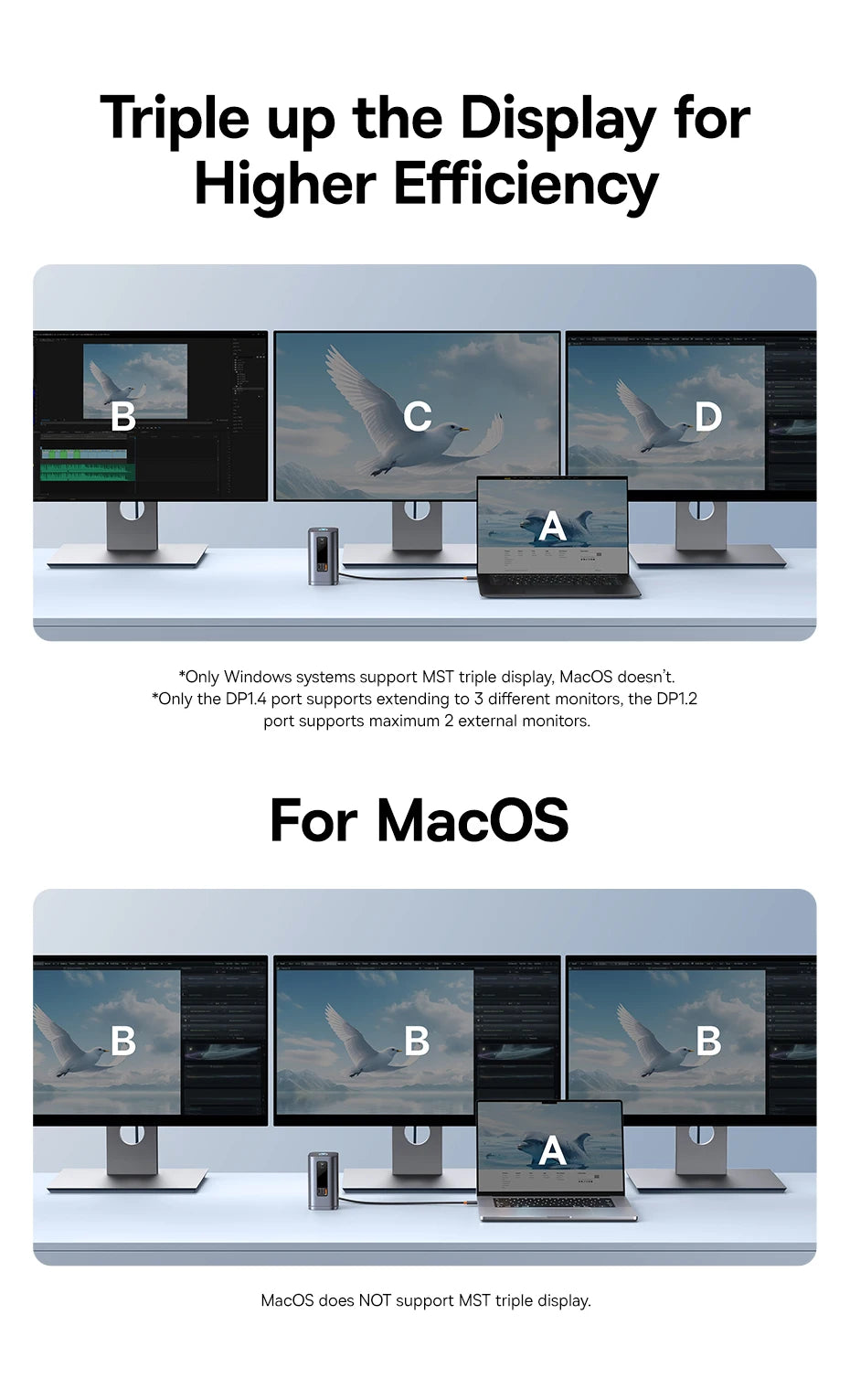

Triple up the Display for Higher Efficiency

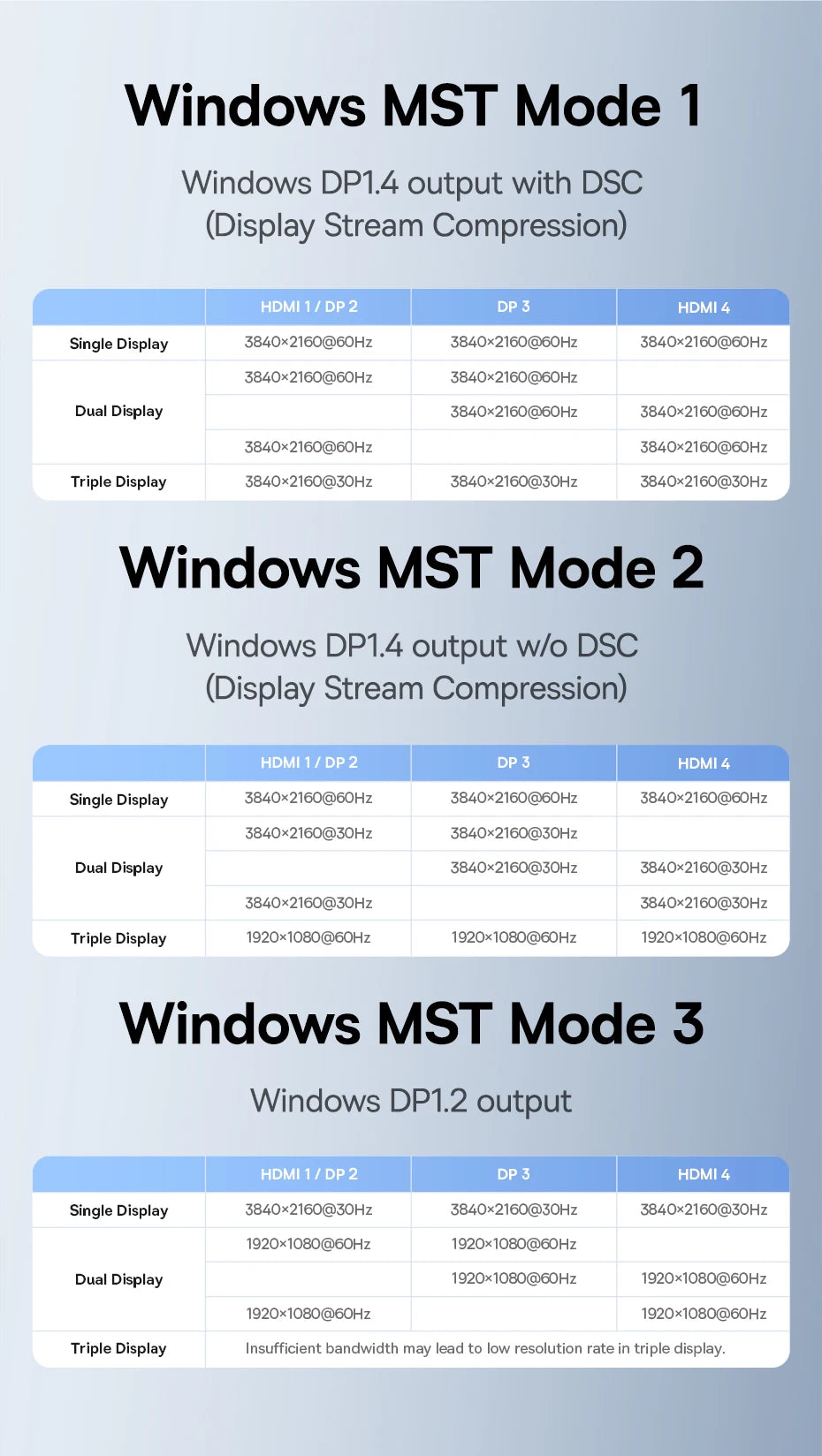

✅3 Modes for Windows:

① Main Monitor A to A+A+A Display

② Main Monitor A to B+B+B Display

③ Main Monitor A to B+C+D Display



✅2 Modes for macOS: (macOS does NOT support MST triple display)

① Main Monitor A to A+A+A Display

② Main Monitor A to B+B+B Display



*Only Windows systems support MST triple display, macOS doesn't.

*Only the DP1.4 port supports extending to 3 different monitors, the DP1.2 port supports maximum 2 external monitors.

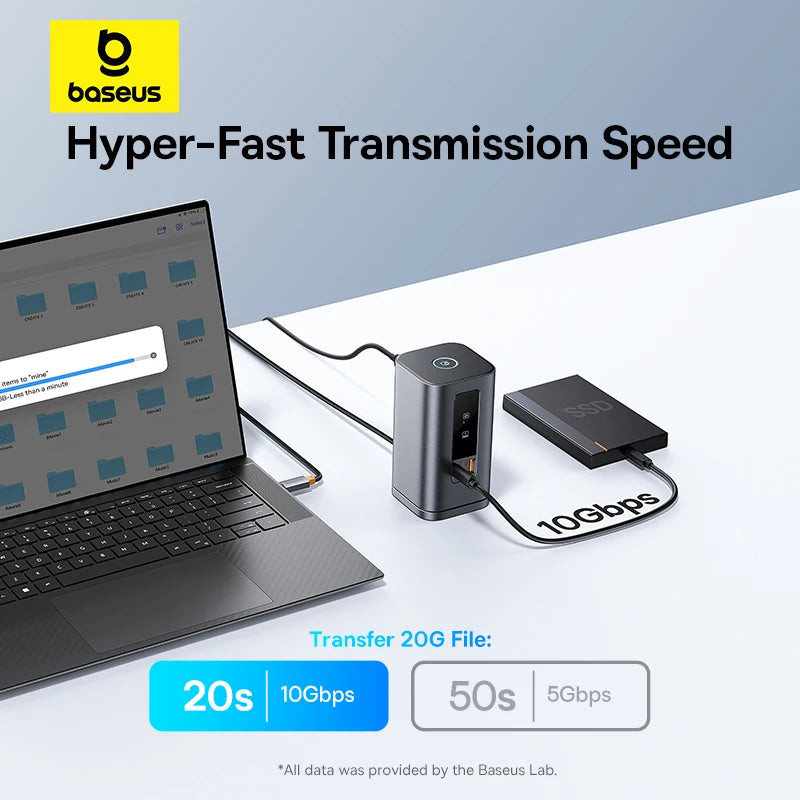

Move Data Faster Than Your Imagination

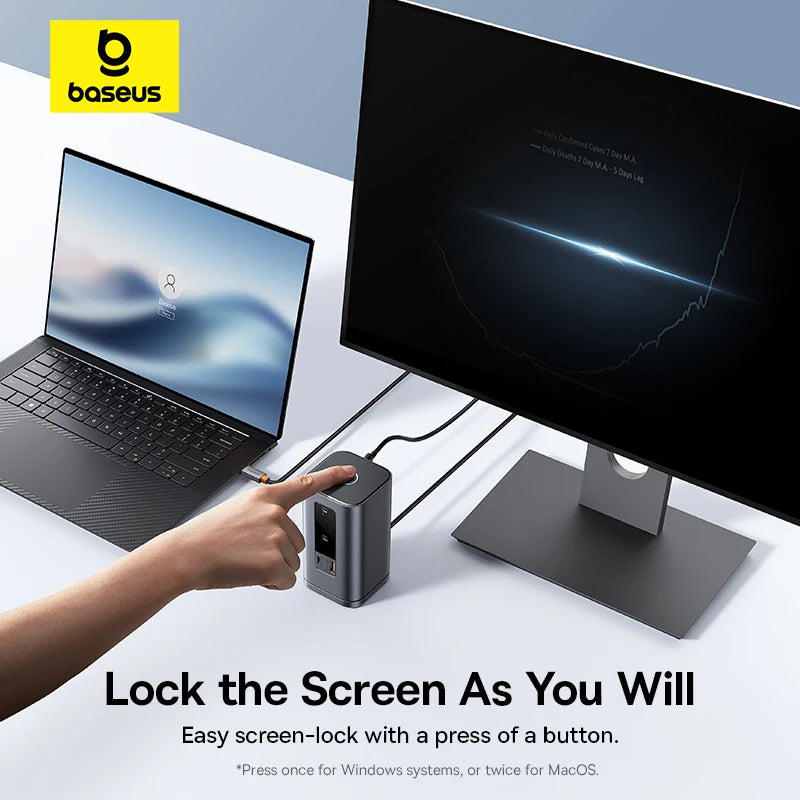

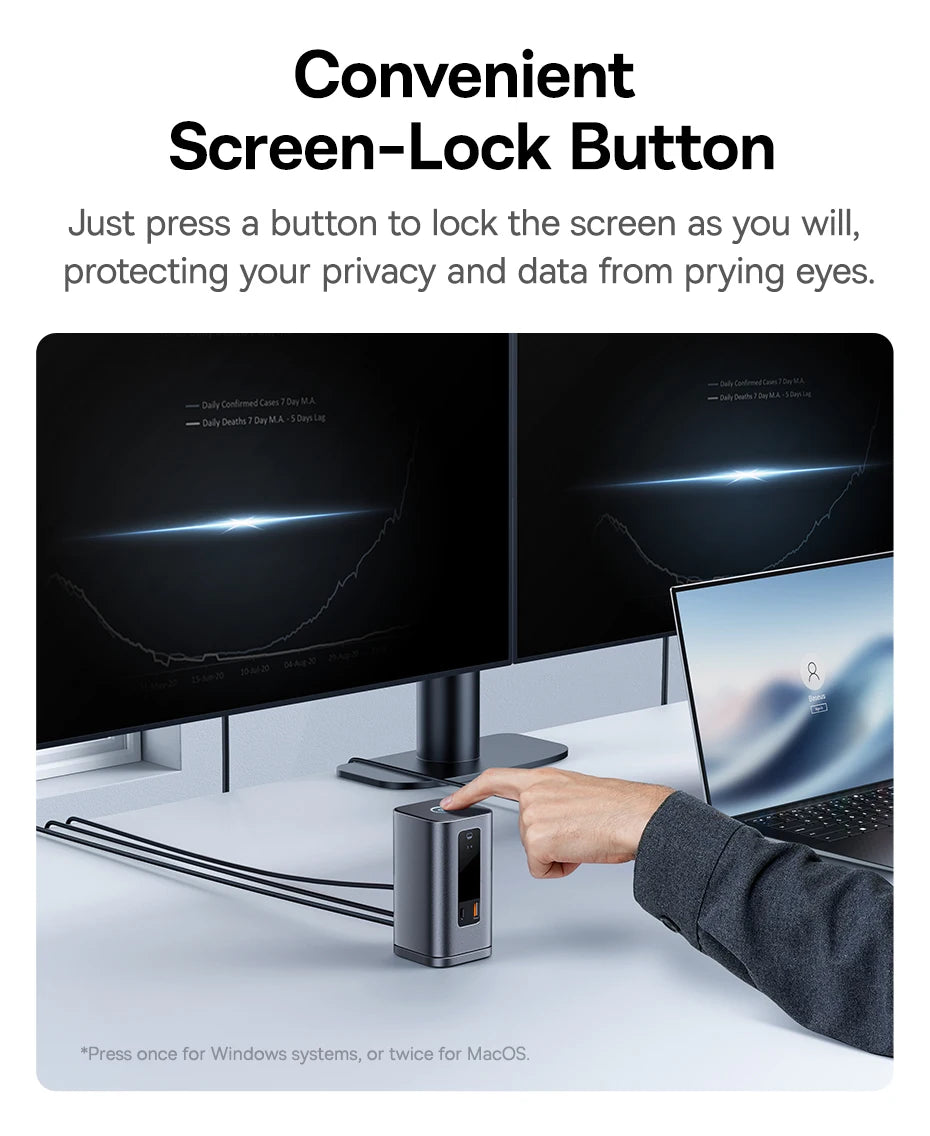

Convenient Screen-Lock Button

Just press a button to lock the screen as you will, protecting your privacy and data from prying eyes.



*Press once for Windows systems, or twice for macOS.

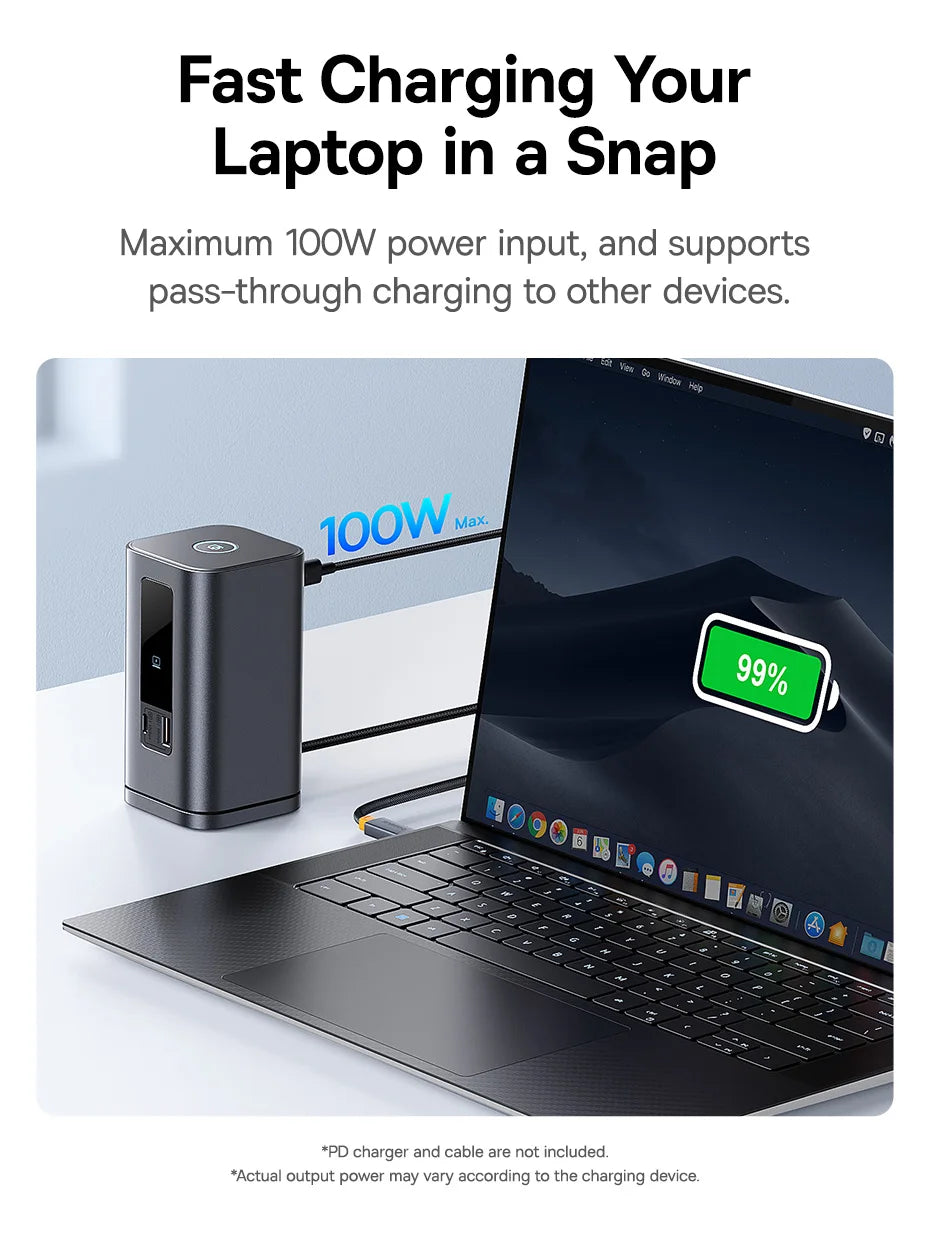

Fast Charging Your Laptop in a Snap

Maximum 100W power input, and supports pass-through charging to other devices.



*PD charger and cable are not included.

*Actual output power may vary according to the charging device.

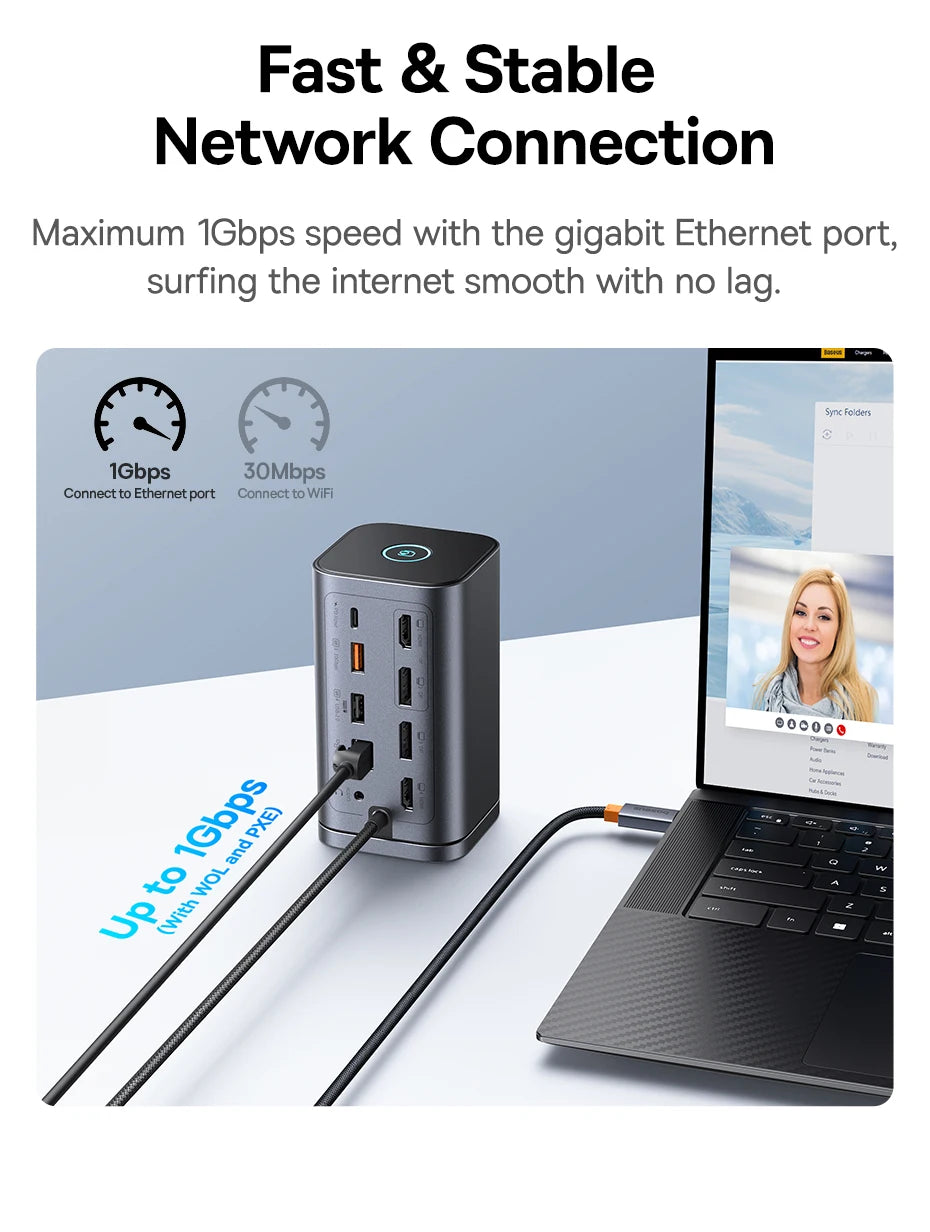

Fast & Stable Network Connection

Maximum 1Gbps speed with the gigabit Ethernet port, surfing the internet smooth with no lag.





Sync up the Audio with the Visual

Connect your earphones or speakers to the 3.5mm Audio IN&OUT port for lossless sound quality.

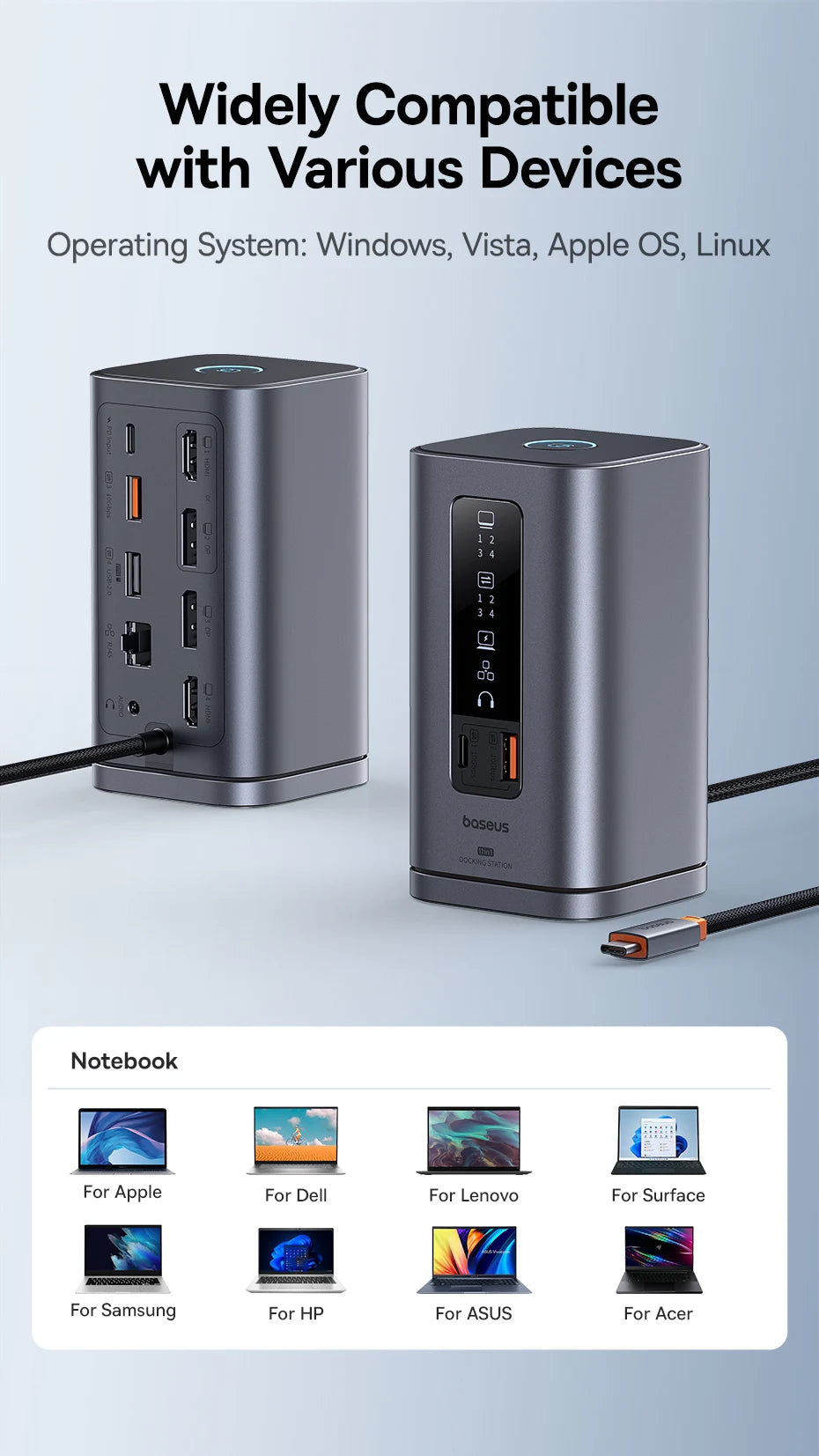

Widely Compatible with Various Devices

Operating System: Windows, Vista, Apple OS, Linux

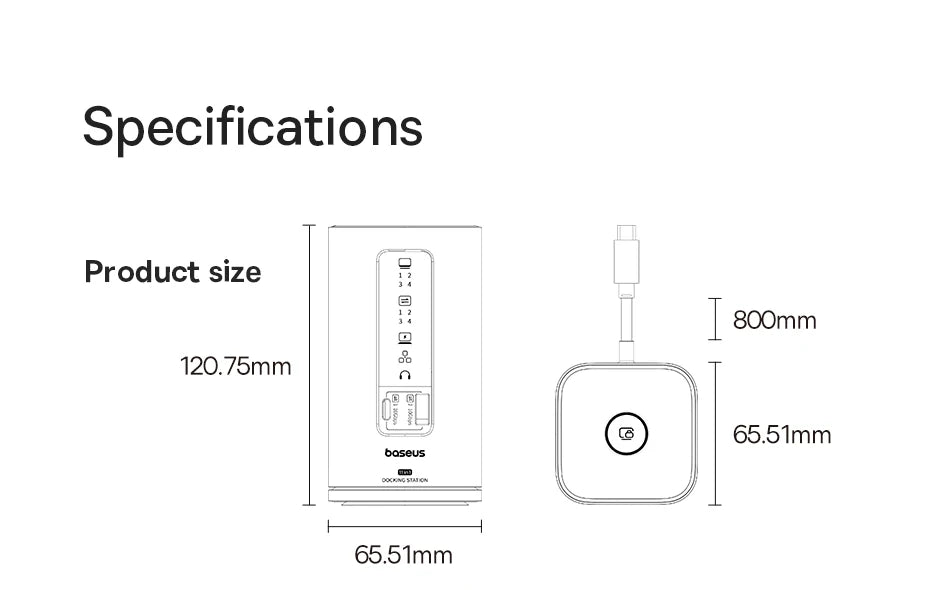

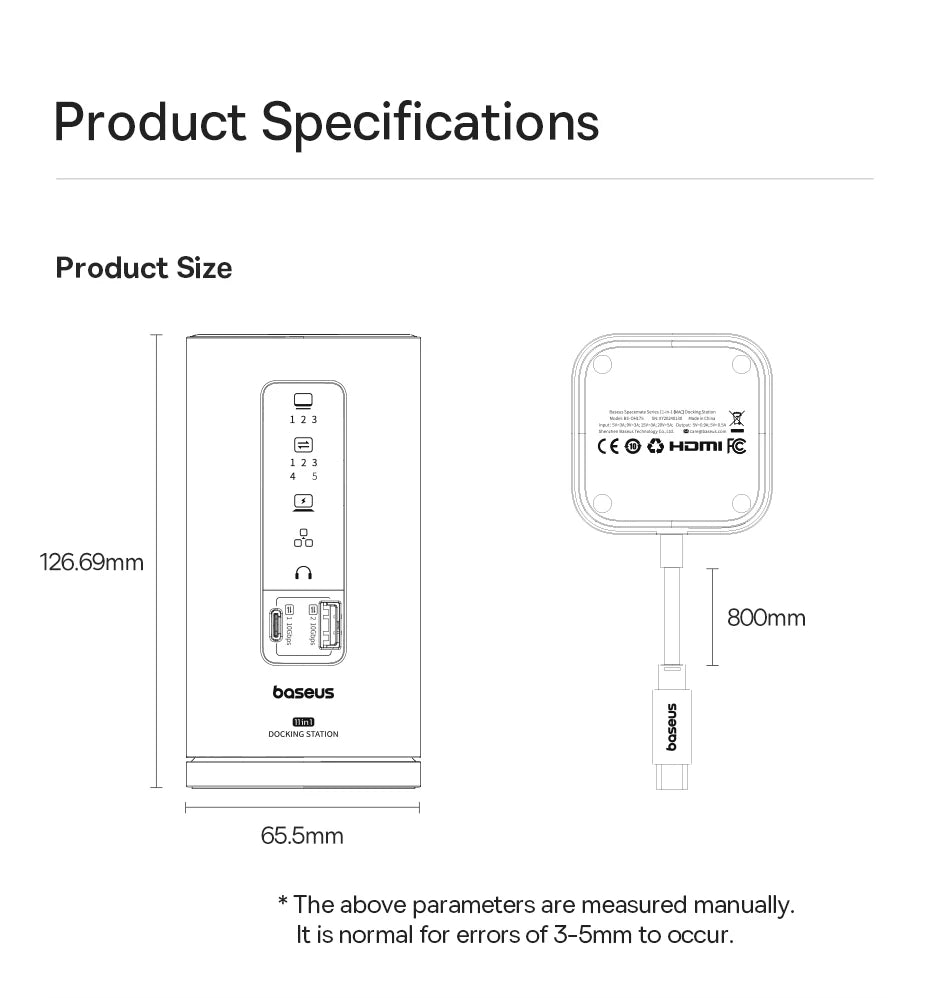

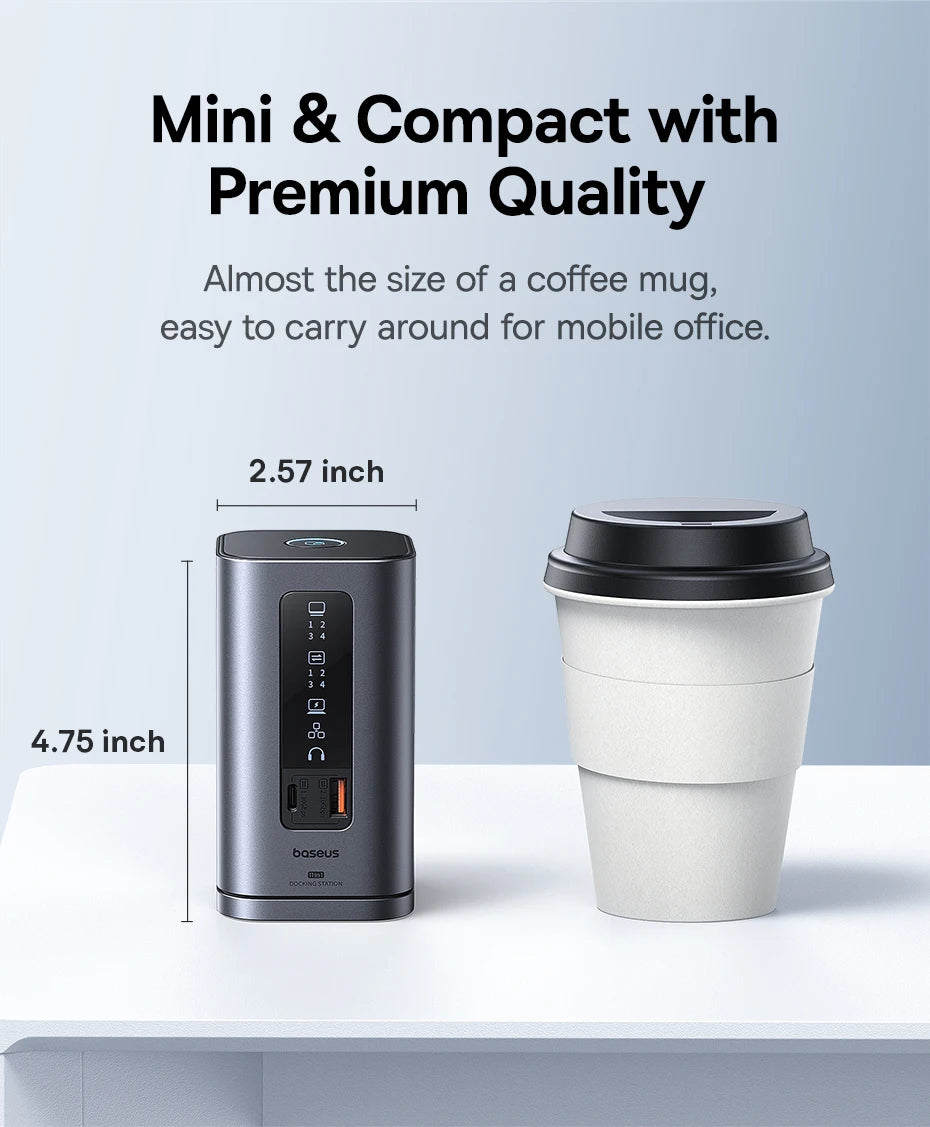

Mini & Compact with Premium Quality

Almost the size of a coffee mug, easy to carry around for mobile office.

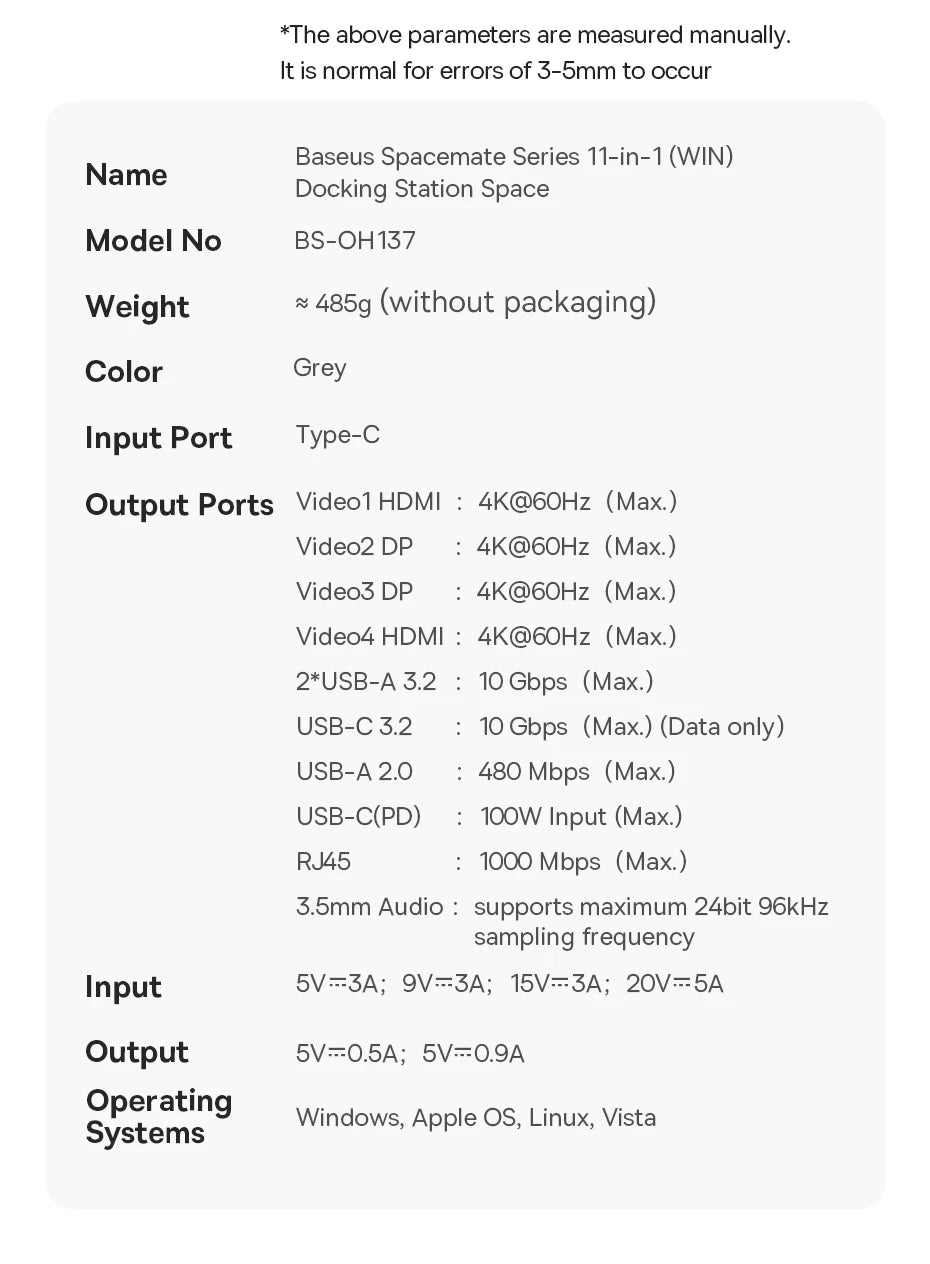

Specifications for【11-in-1 For WIN】



Name: Baseus Spacemate Series 11-in-1 (WIN) Docking Station Space

Model No: BS-OH137

Input Port: Type-C

Output Ports:

Video 1 HDMI: 4K@60Hz (Max.)

Video 2 DP: 4K@60Hz (Max.)

Video 3 DP: 4K@60Hz (Max.)

Video 4 HDMI: 4K@60Hz (Max.)

2*USB-A 3.2: 10Gbps (Max.)

USB-C 3.2: 10Gbps (Max.) (Data only)

USB-A 2.0: 480 Mbps (Max.)

USB-C(PD): 100W Input (Max.)

RJ45: 1000 Mbps (Max.)

3.5mm Audio: supports maximum 24bit 96kHz sampling frequency

Input: 5V=3A; 9V=3A; 15V=3A; 20V=5A

Output: 5V=0.5A; 5V=0.9A

Operating Systems: Windows, Apple OS, Linux, Vista

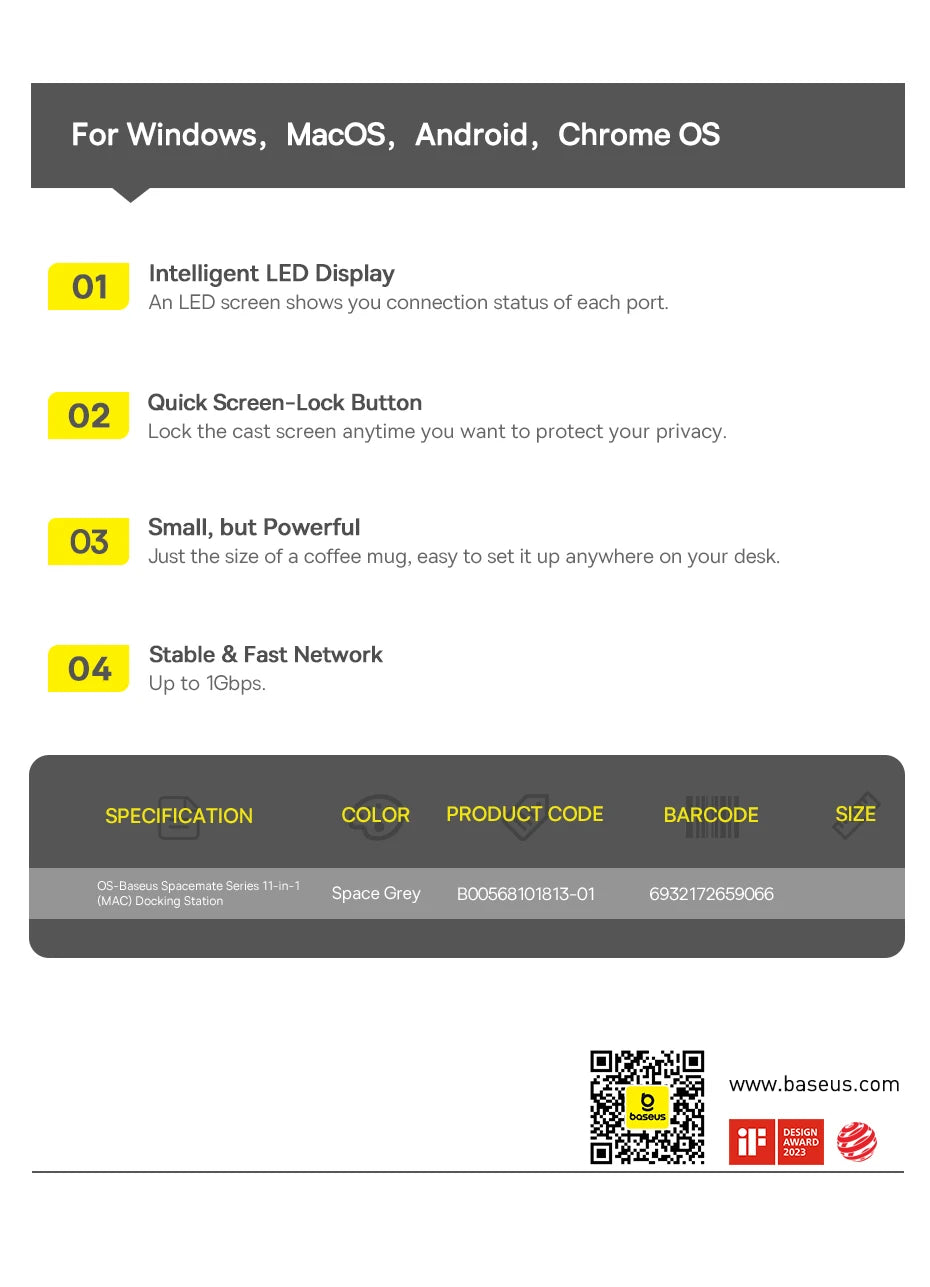

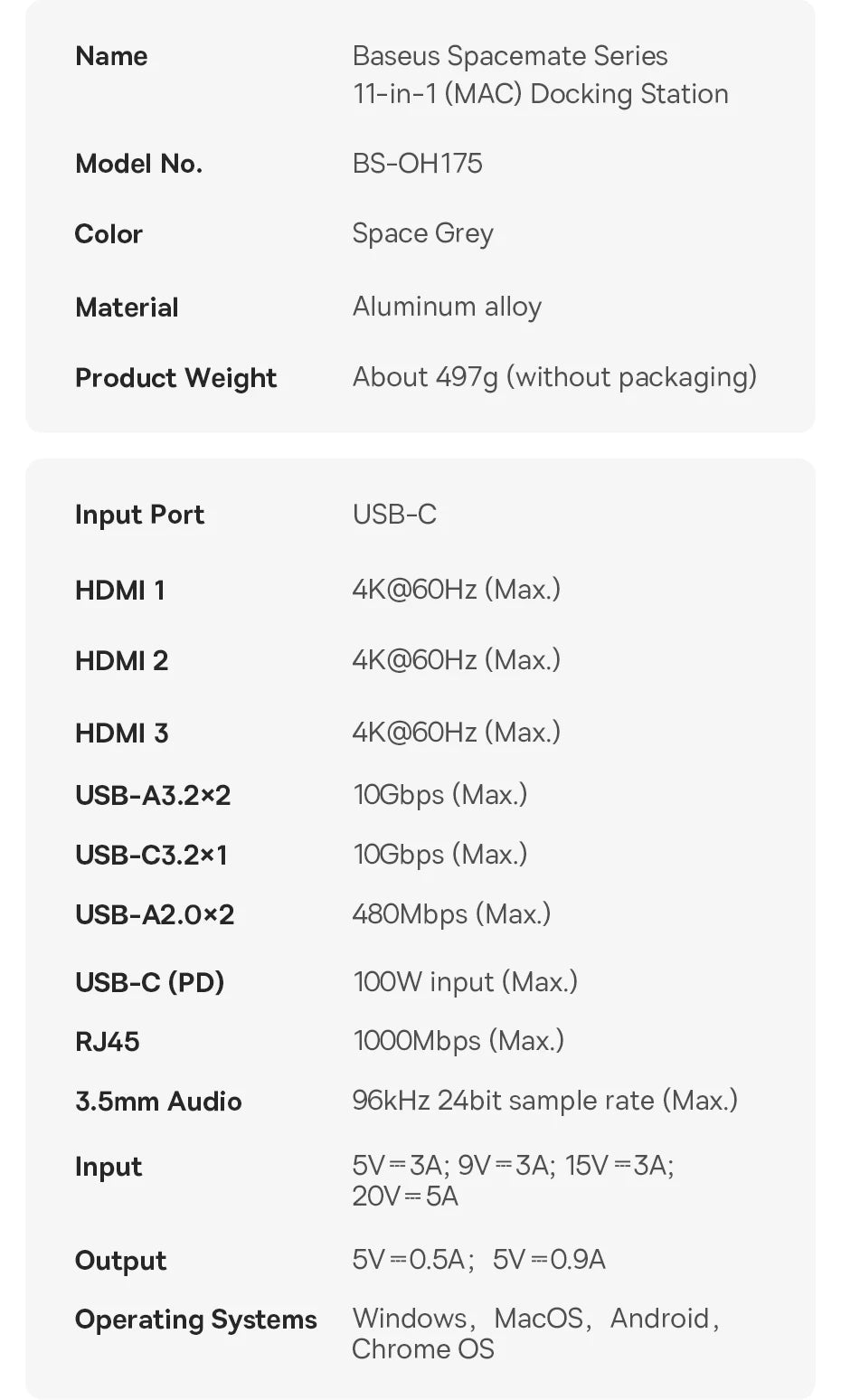

Specifications for【11-in-1 For MAC】



Name: Baseus Spacemate Series 11-in-1 (MAC) Docking Station

Model No: BS-OH175

Color: Space Grey

Material: Aluminum alloy

Product Weight: About 497g (without packaging)

Input Port: USB-C

HDMI 1: 4K@60Hz(Max.)

HDMI 2: 4K@60Hz (Max.)

HDMI 3: 4K@60Hz (Max.)

USB-A3.2×2: 10Gbps (Max.)

USB-C3.2×1: 10Gbps (Max.)

USB-A2.0×2: 480Mbps (Max.)

USB-C (PD): 100W input (Max.)

RJ45: 1000Mbps (Max.)

3.5mm Audio: 96kHz 24bit sample rate (Max.)

Input: 5V=3A; 9V=3A; 15V=3A; 20V=5A

Output: 5V=0.5A; 5V=0.9A

Operating Systems: Windows, macOS, Android, Chrome OS

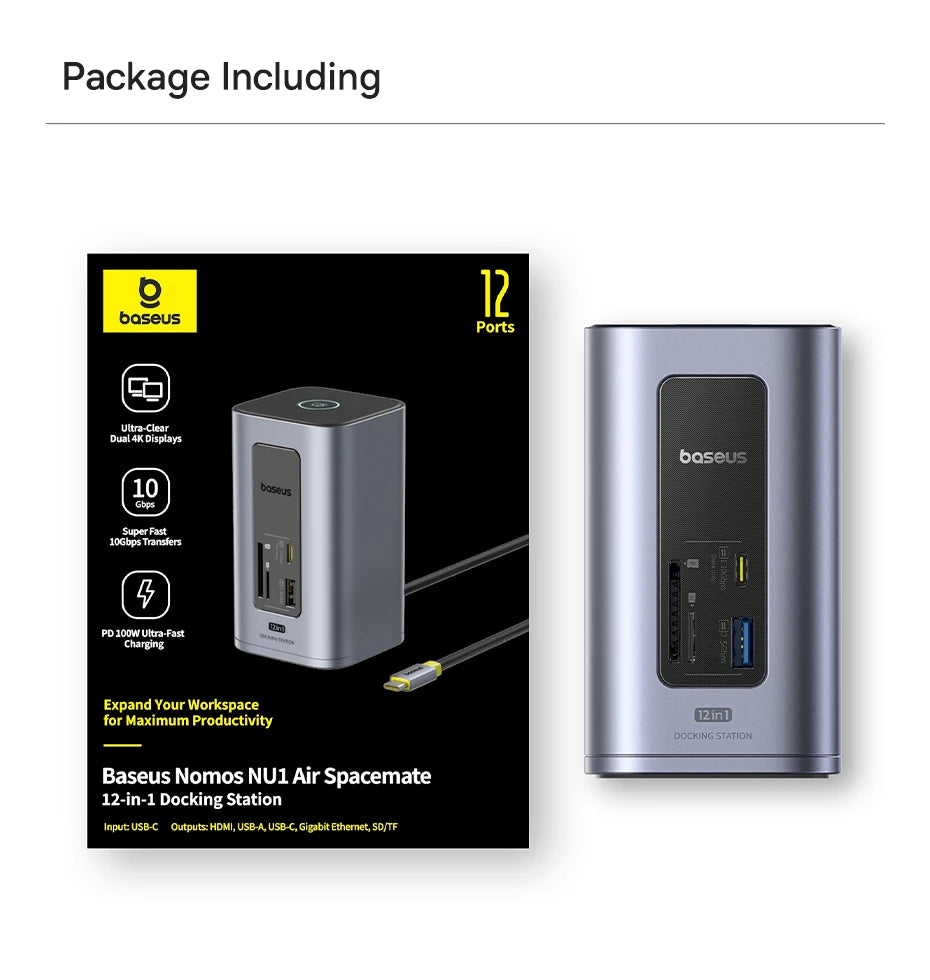

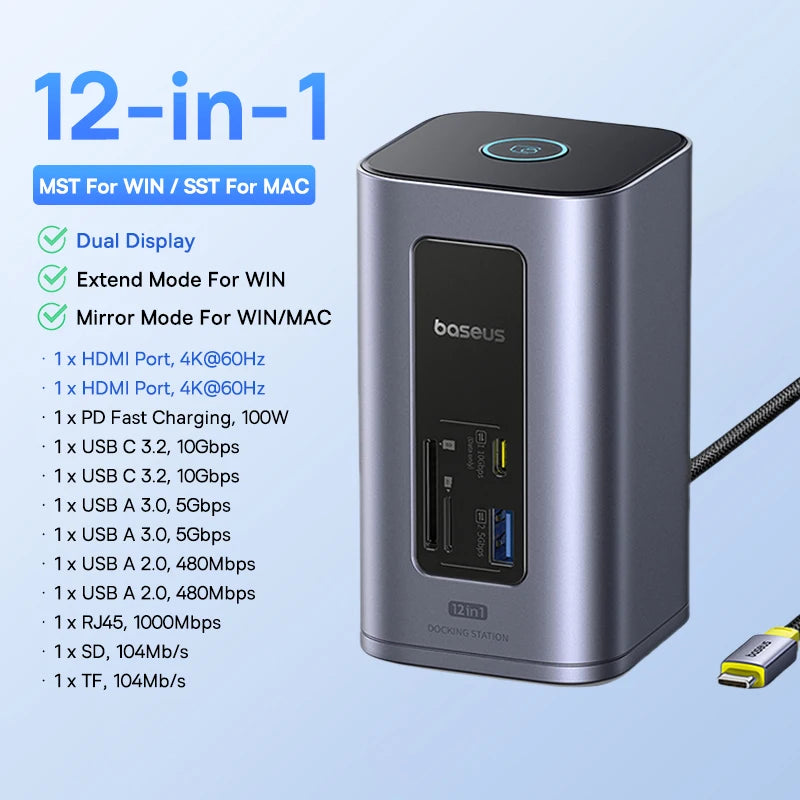

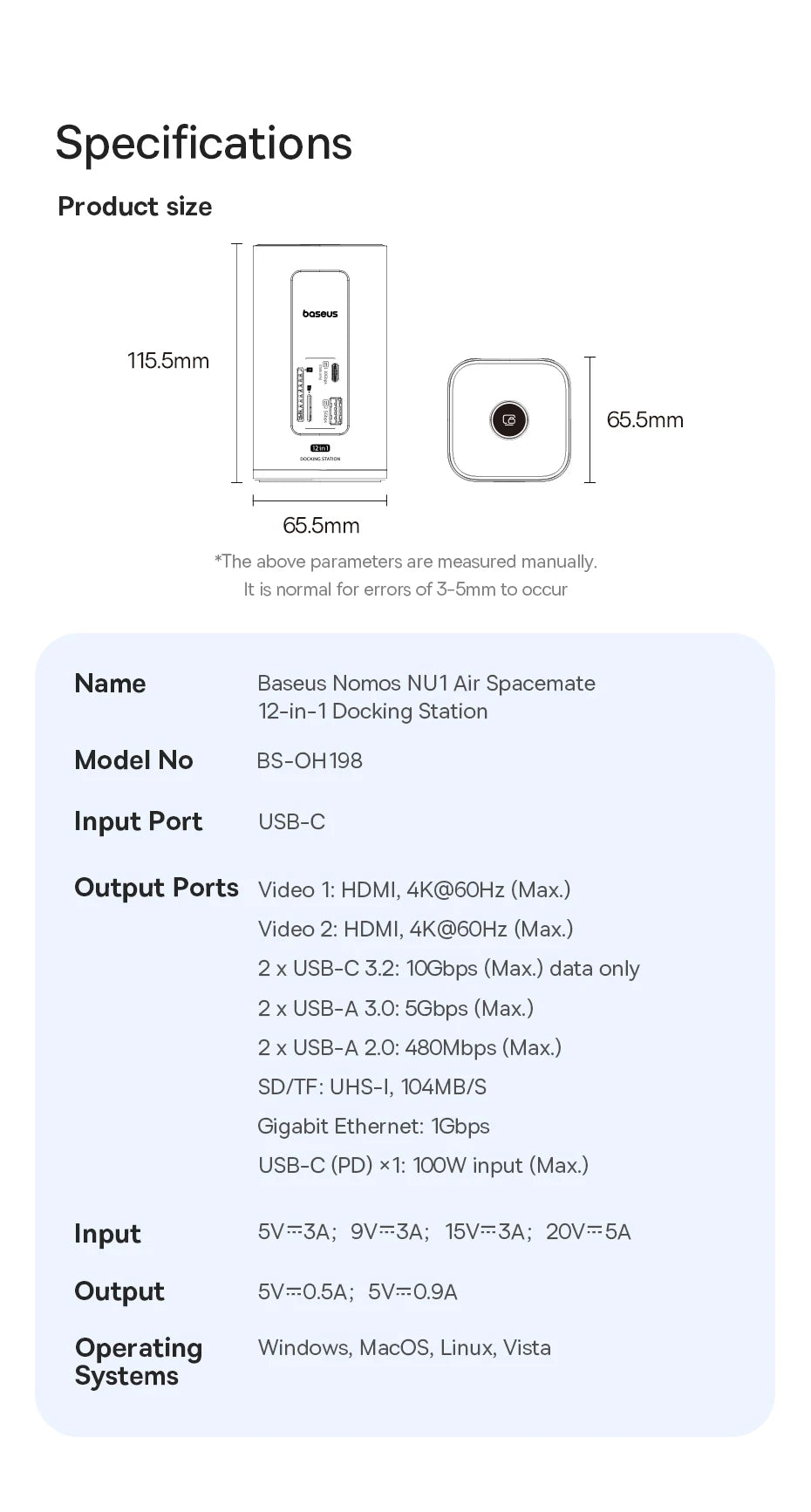

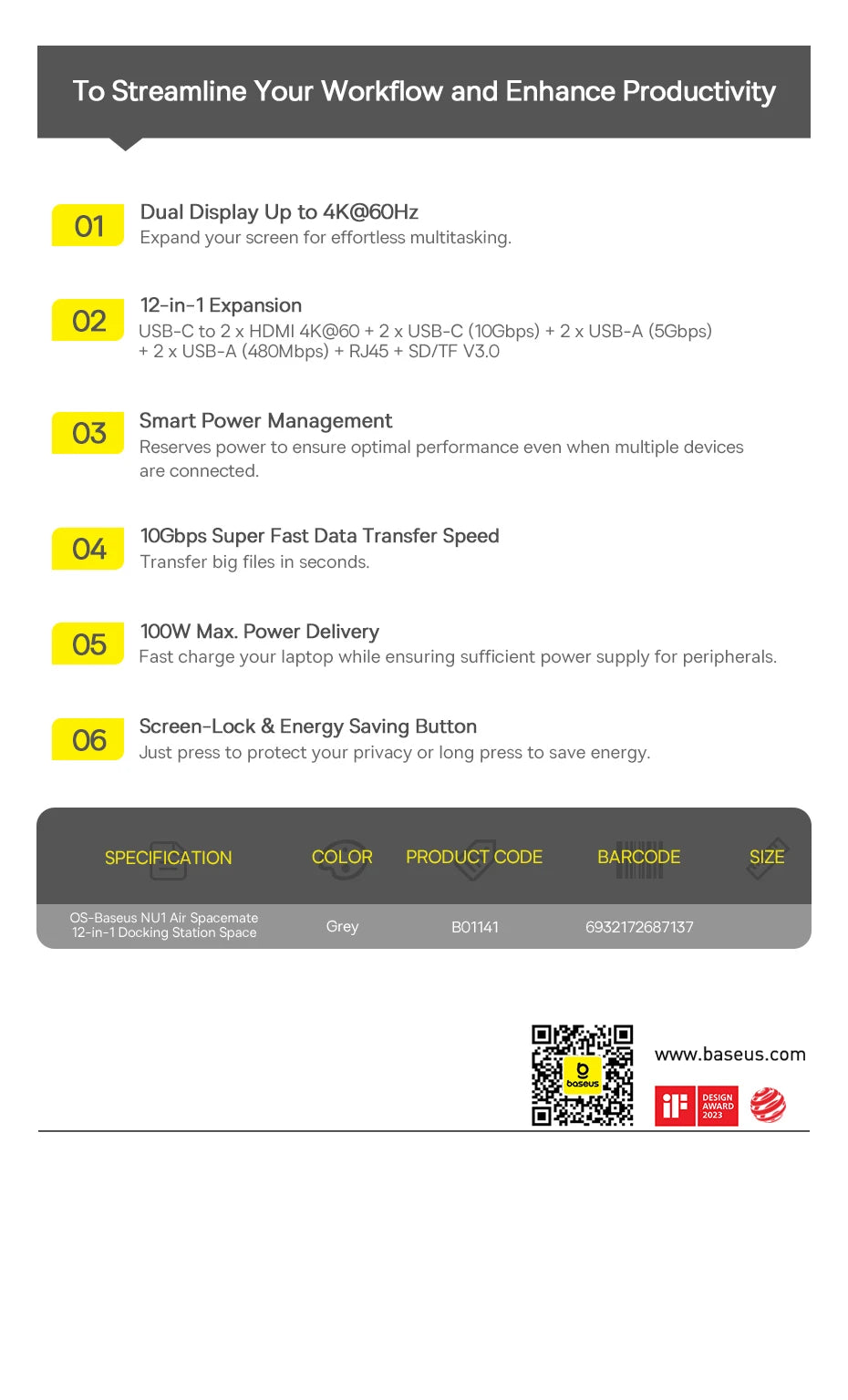

Specifications for【12-in-1 For WIN】



Name: Baseus Nomos NU1 Air Spacemate 12-in-1 Docking Station

Model No: BS-OH198

Input Port: USB-C

Output Ports:

Video 1: HDMI, 4K@60Hz (Max.)

Video 2: HDMI, 4K@60Hz (Max.)

2 x USB-C 3.2: 10Gbps (Max.) data only

2 x USB-A 3.0: 5Gbps (Max.)

2 x USB-A 2.0: 480Mbps (Max.)

SD/TF: UHS-I, 104MB/S

RJ45 Gigabit Ethernet: 1000Mbps

USB-C (PD) x1: 100W input (Max.)

Input: 5V=3A; 9V=3A; 15V=3A; 20V=5A

Output: 5V=0.5A; 5V=0.9A

Operating Systems: Windows, macOS, Linux, Vista
