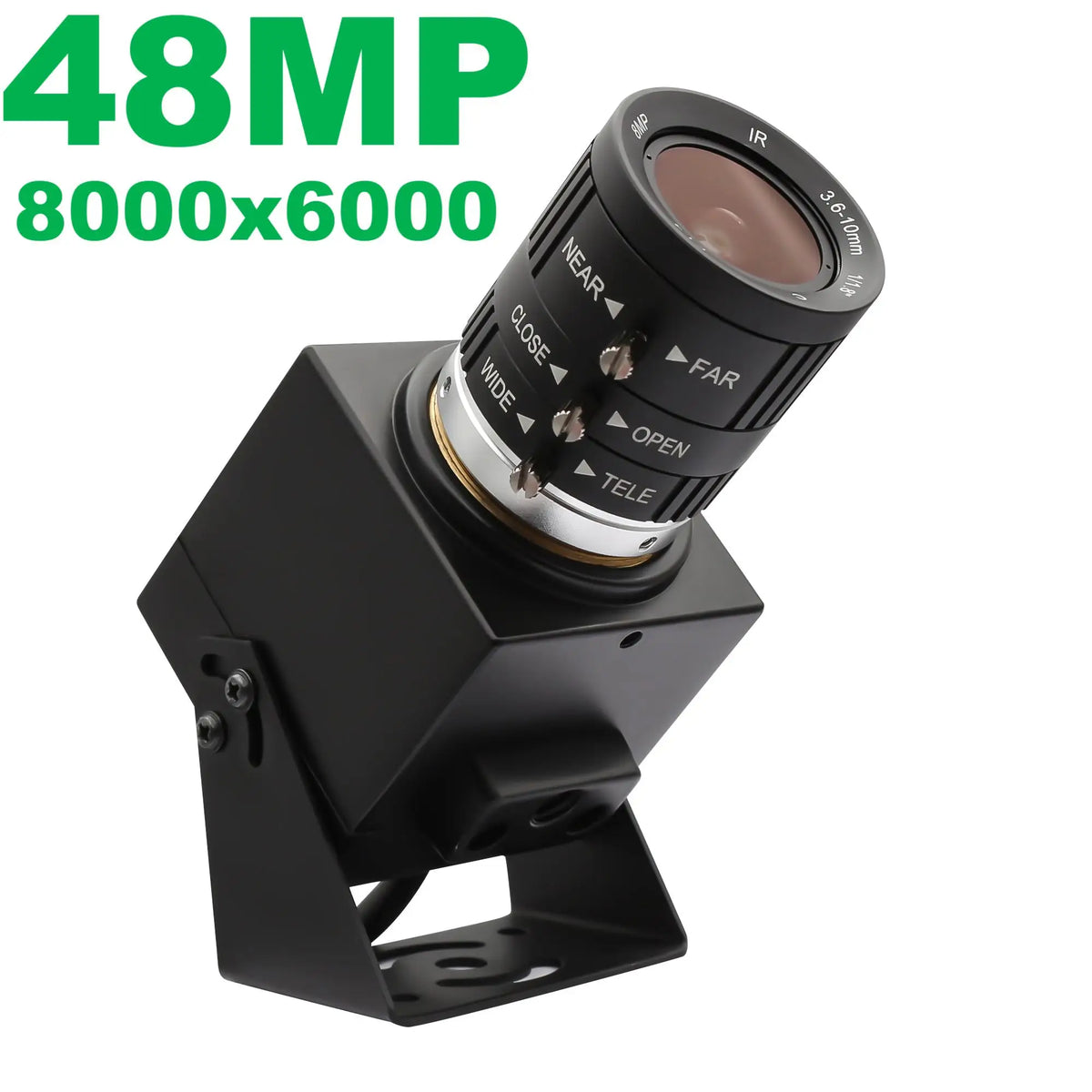

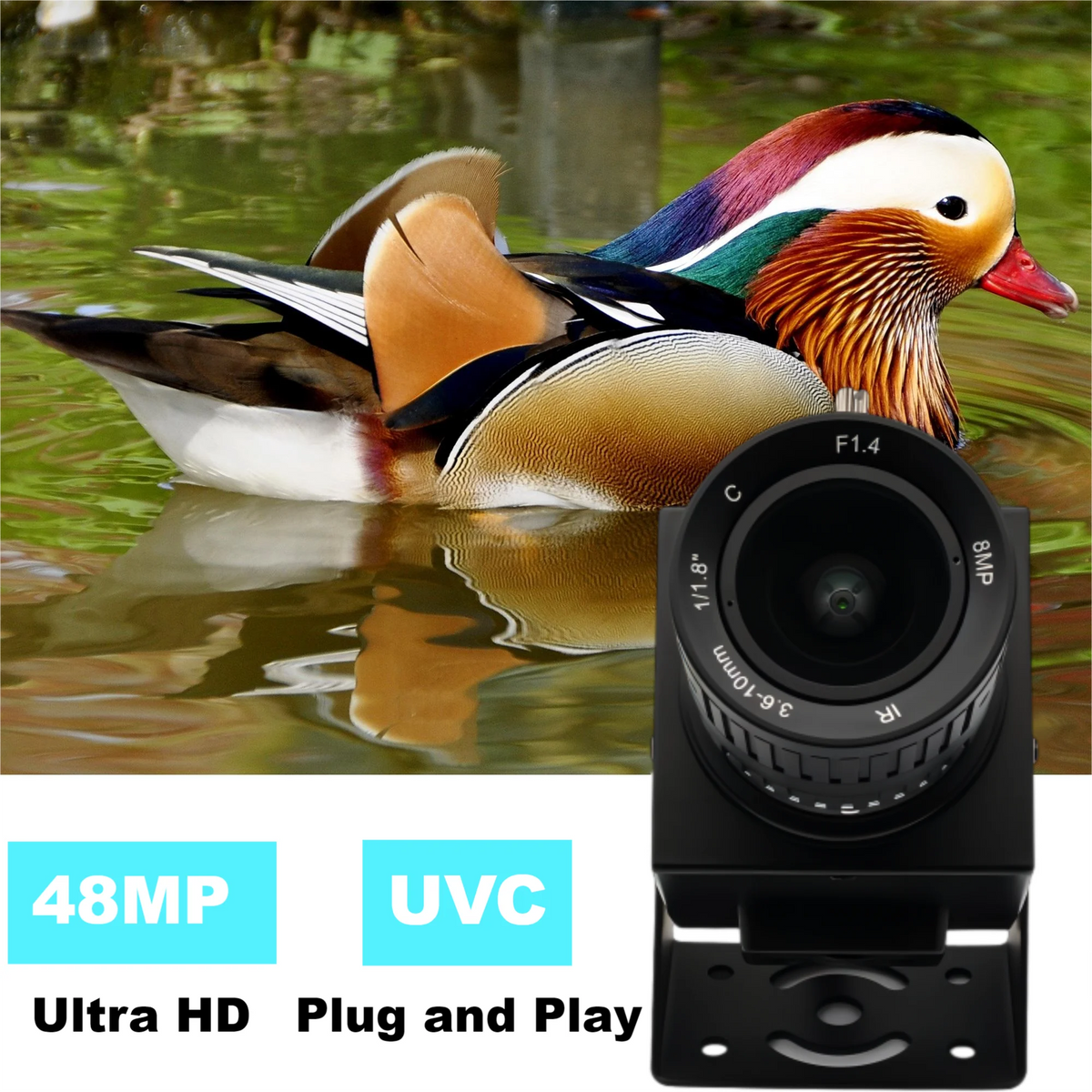

ELP 48MP USB Camera IMX586 8K CMOS UVC Mini USB Webcam Industrial Video Camera with 3.6-10mm Varifocal Zoom Lens
Available in stock (350)
SPECIFICATIONS
Brand Name: ELP
Certification: CE,FCC
Connectivity: USB
ELP Camera Central Definition: 1000LW/PH (Center)
ELP Model: ELP-USB48MP02-CFV(3.6-10)
Free driver 48MP UHD Camera: Plug and Play
High Definition: 12.0 Megapixels
High-concerned chemical: none
IR Distance(m): 0
Installation: Normal
Internal Storage: None

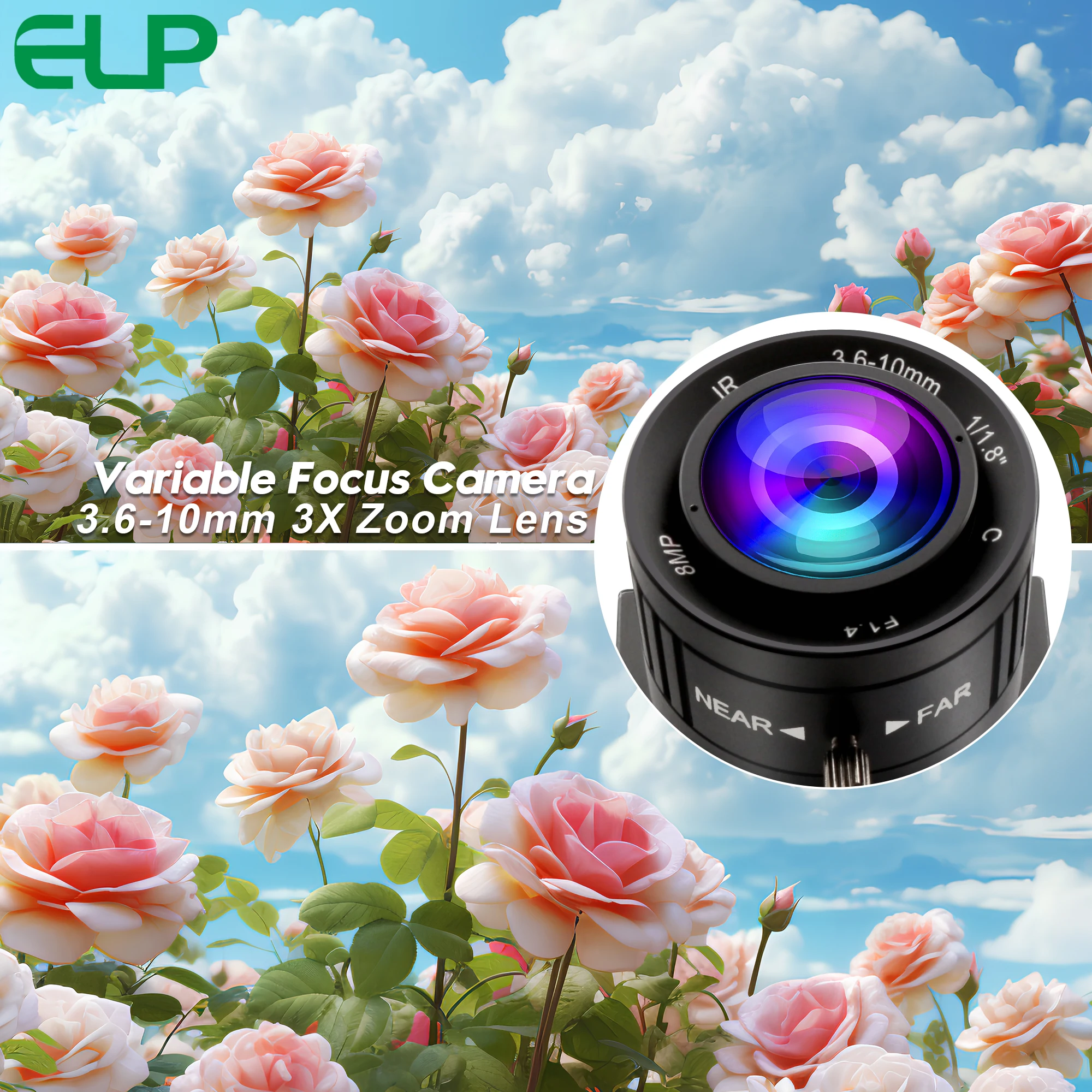

Lens: with 3.6-10MM Varifocal lens
Lens (mm): 3.6mm
Lens Quantity: Single Lens
Megapixels: 12mp
Minimum Illumination(Lux): 0.3
Model Number: ELP-USB48MP02-CFV(3.6-10)
OS Support: Android Linux Windows MAC OS
Power Supply: Normal
Power Supply(V): 5V
Sensor: CMOS
Smart home platform: NONE
Style: Mini Camera
Supported Mobile Systems: Android
Supported Operating Systems: Windows 98,Windows XP,Windows Vista,Windows 7,macOS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003
TF Card: None
UHD 48MP camera Max Resolution: 48MP 8000X6000 8K High Resolution Camera
USB Camera 48MP Image sensor: IMX586
USB Camera Cable: Standard 2m cable
Video Compression Format: MJPEG
Viewing Angle : 80°
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

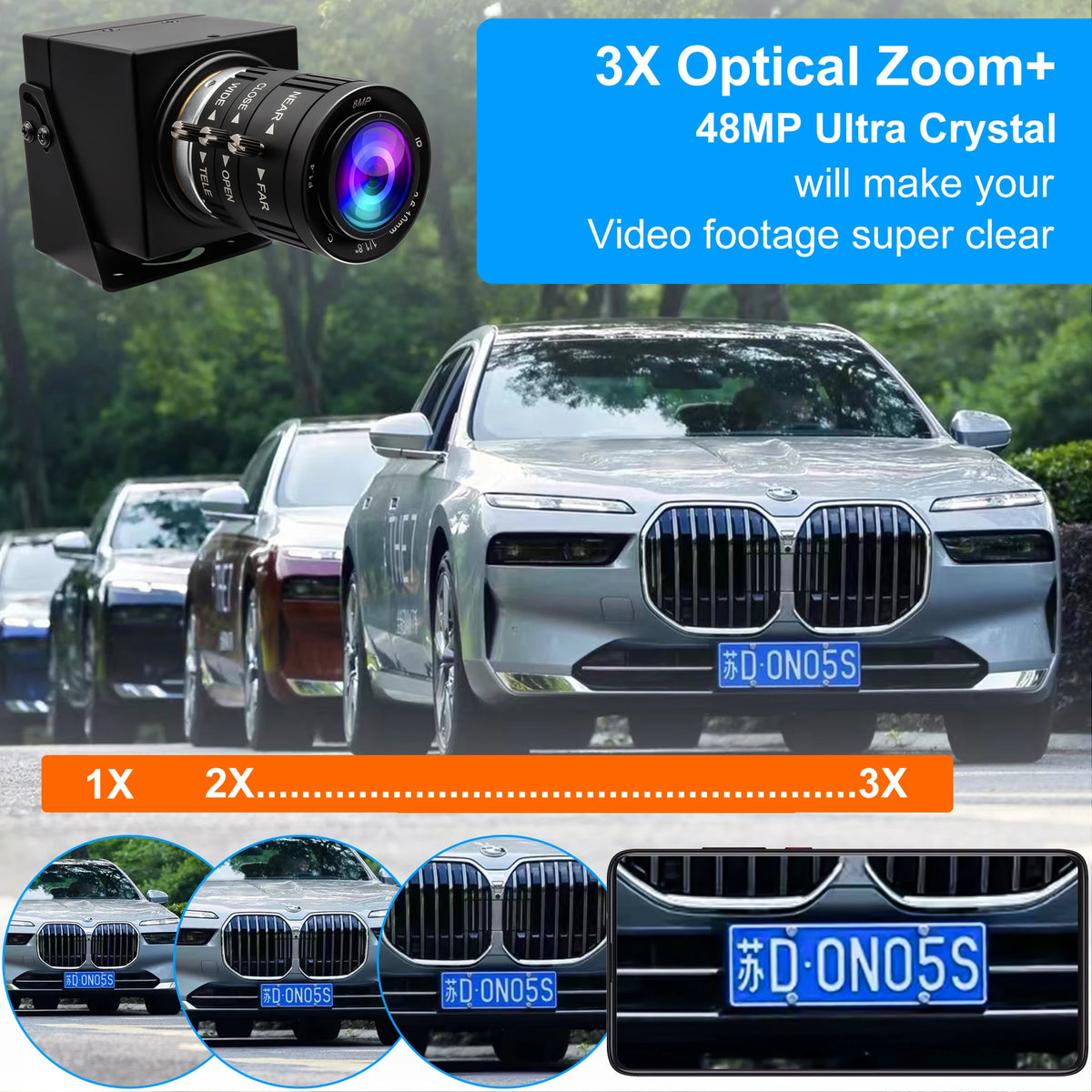

Zoom: 2X
Zoom type: Optical zoom
is_customized: Yes

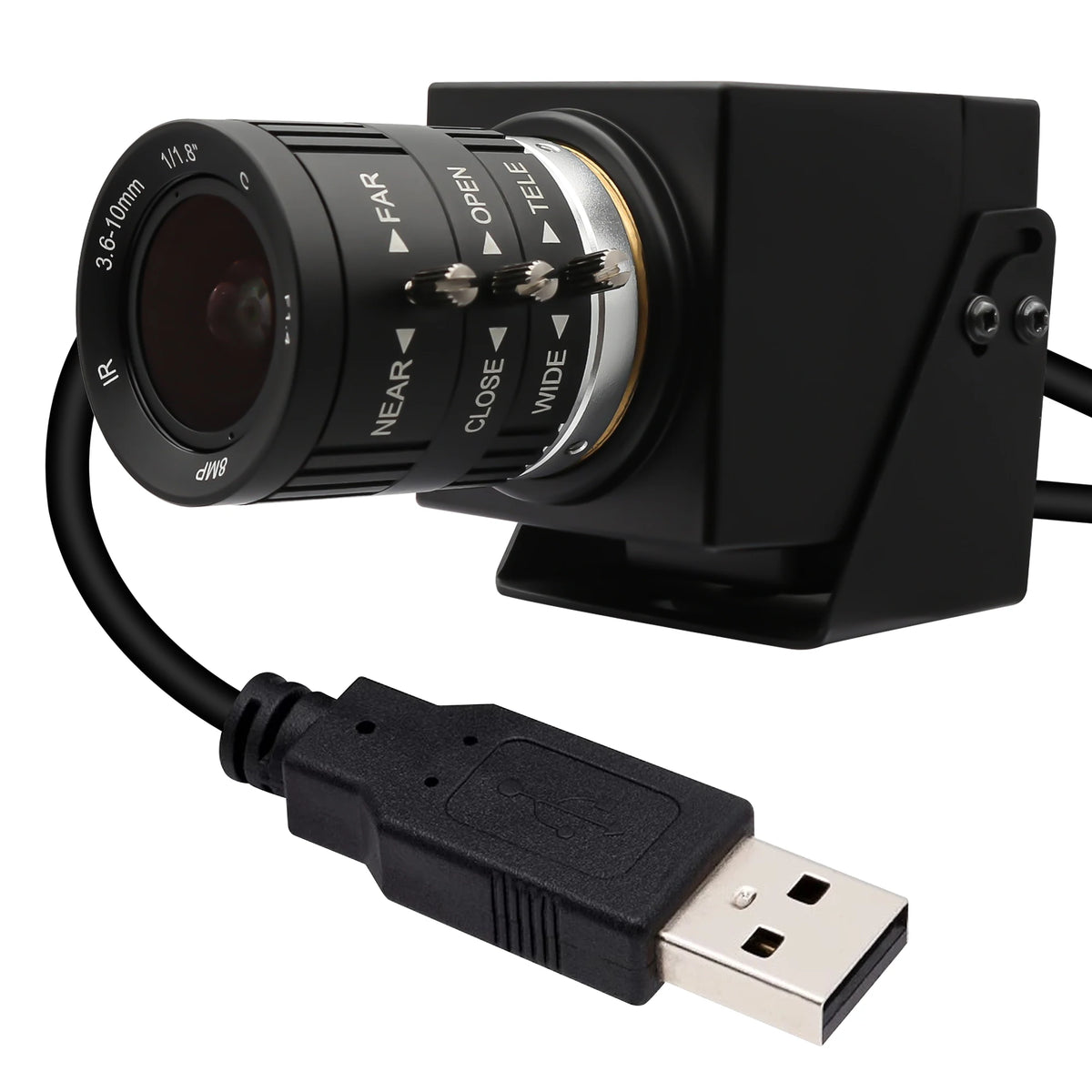

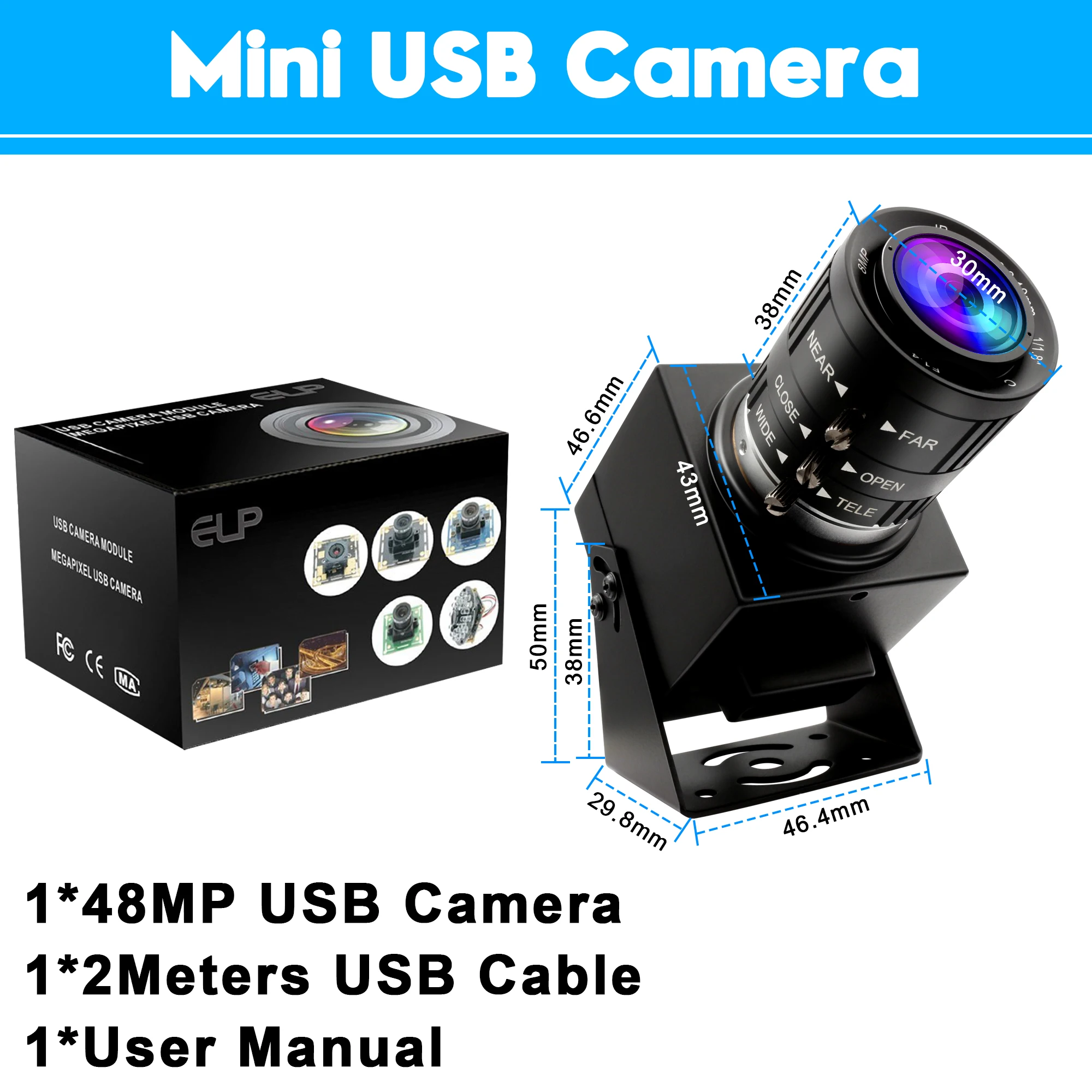

ELP 48MP USB Camera Module IMX586 8K CMOS UVC Mini USB Webcam Industrial Video Camera with 3.6-10mm Varifocal Zoom Lens

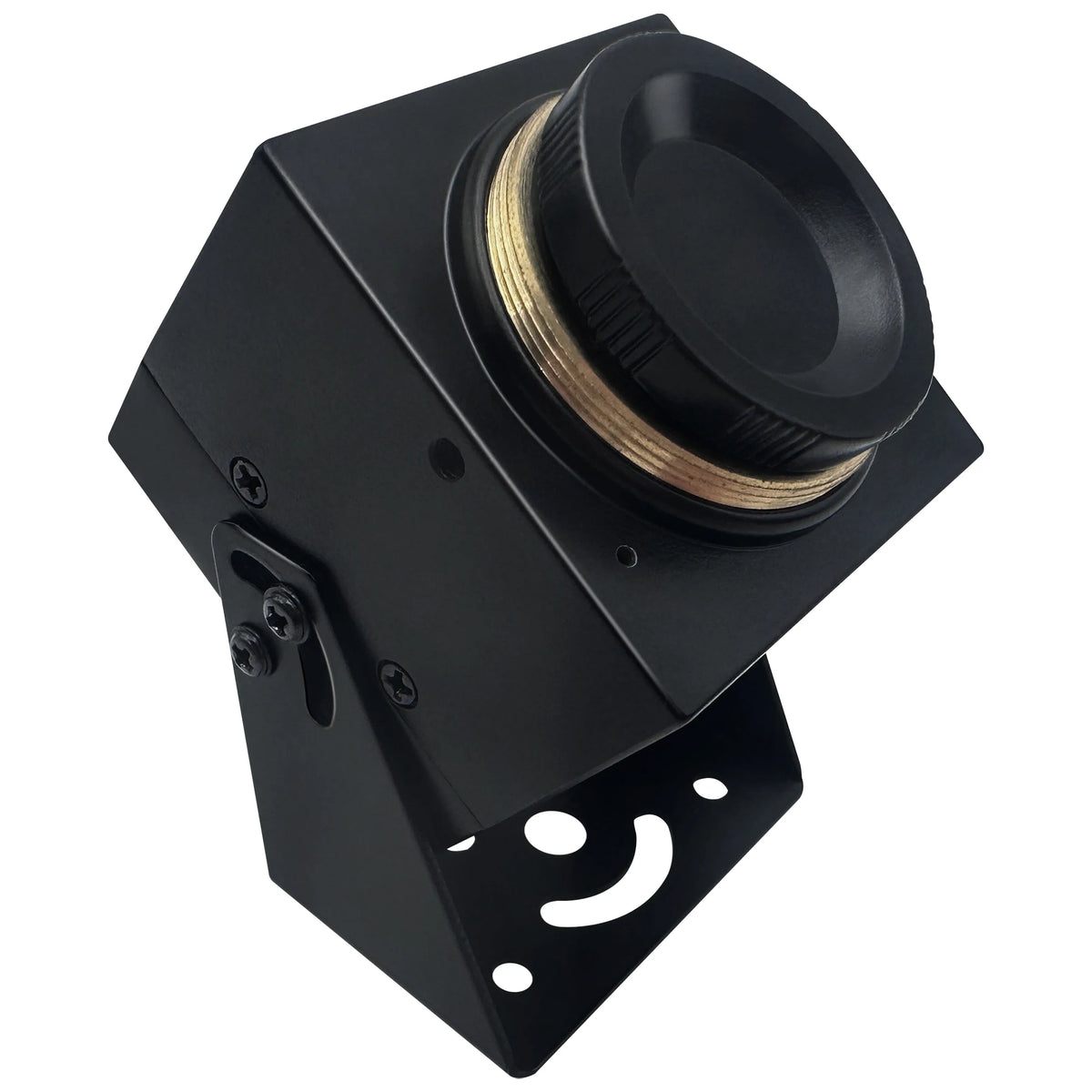

1) 1piece 48mp usb camera module with 3.6-10mm Varifocal lens / without lens (depends on your choice)
2) 1piece 2m usb cable
3) 1piece user manual

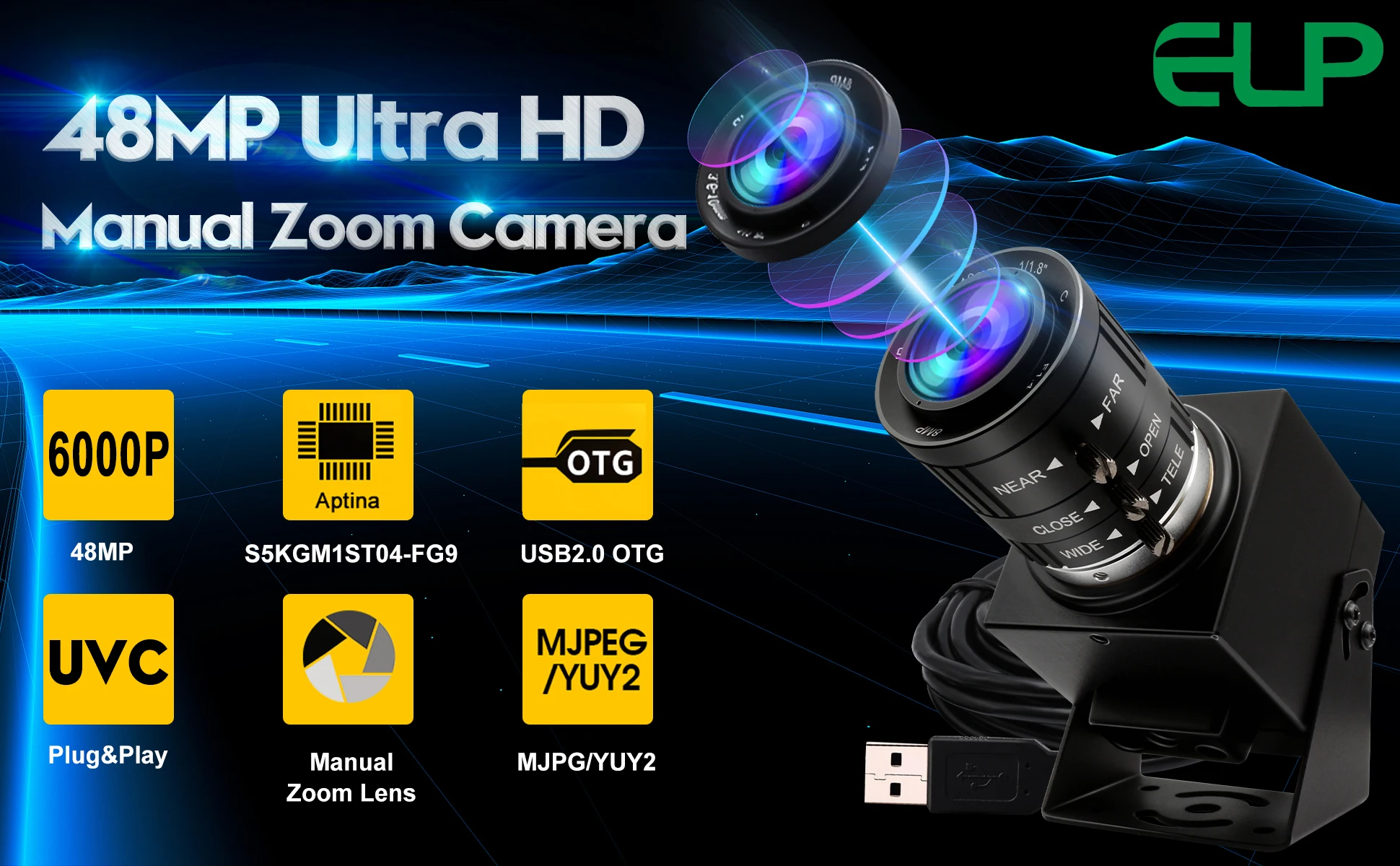

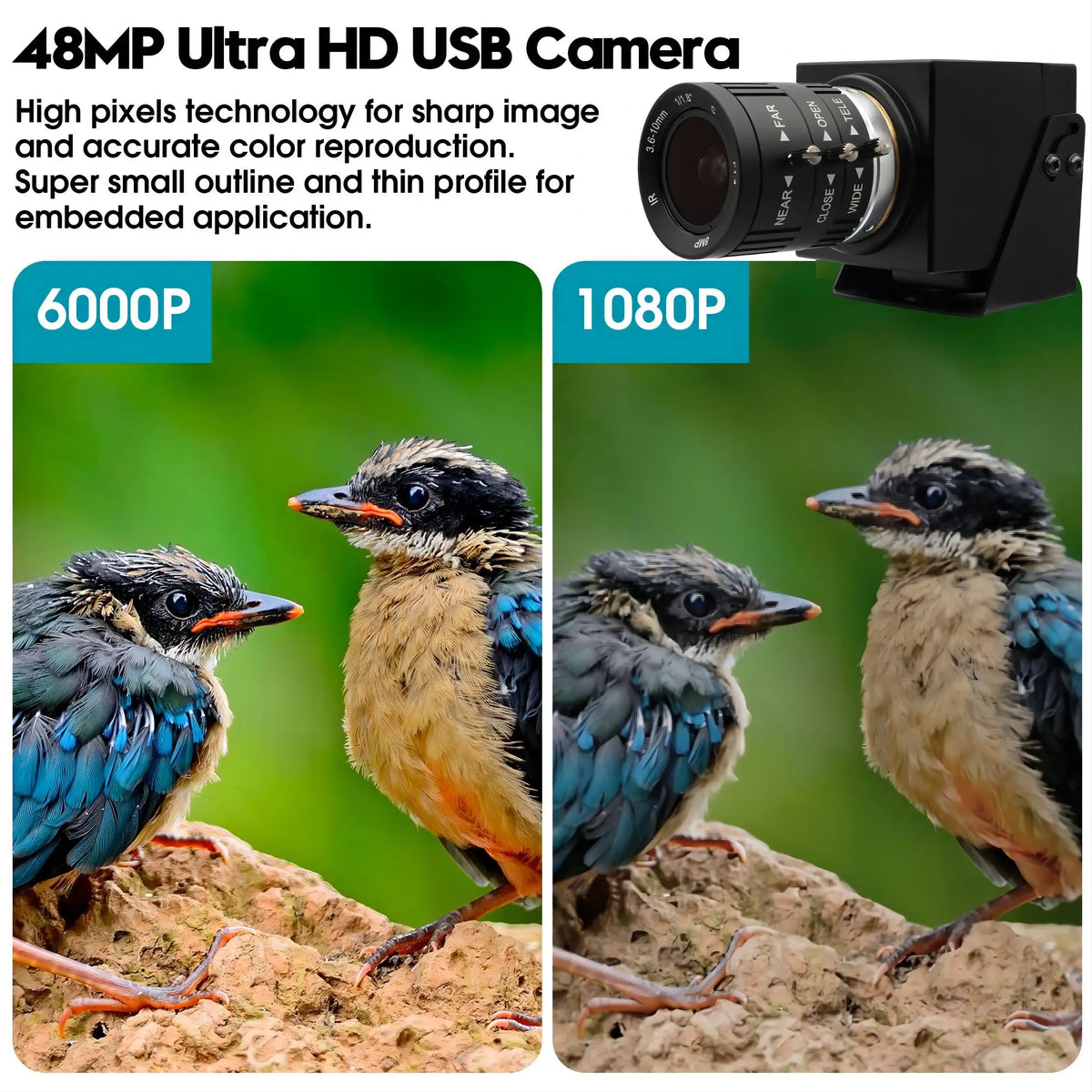

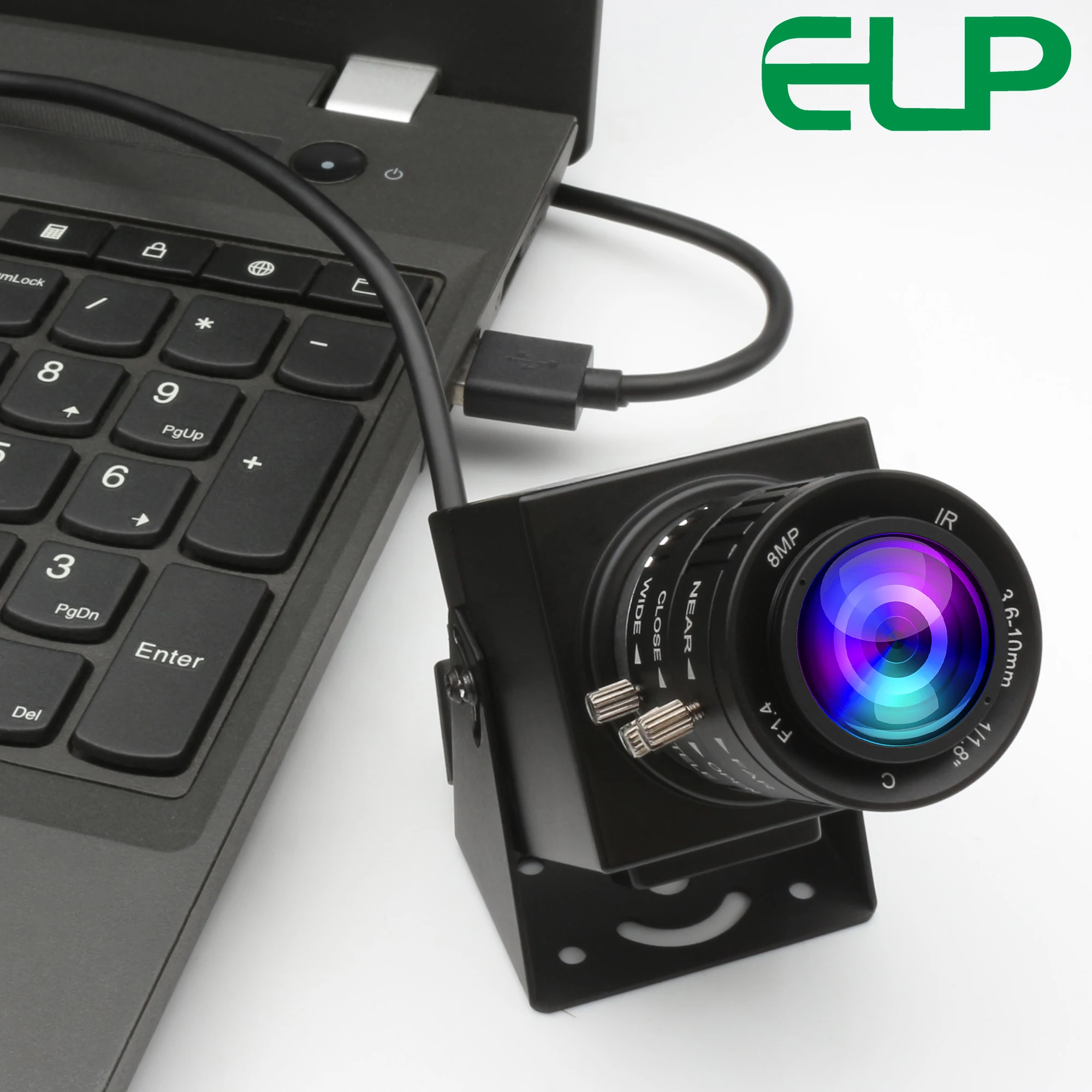

This High Resolution 48MP USB Camera module is based on big size 1/2” IMX586 image sensor, manual focus, USB 2.0 UVC compliant camera. No extra drivers needed, the native UVC drivers of Windows, Linux, Android and Mac shall be compatible with this camera, shoot the images or record videos with super Image reality, real color reproduction. Its ultra 8000*6000 resolution can be used in a wide range of applications where high-resolution images and videos with autofocus capabilities are required.

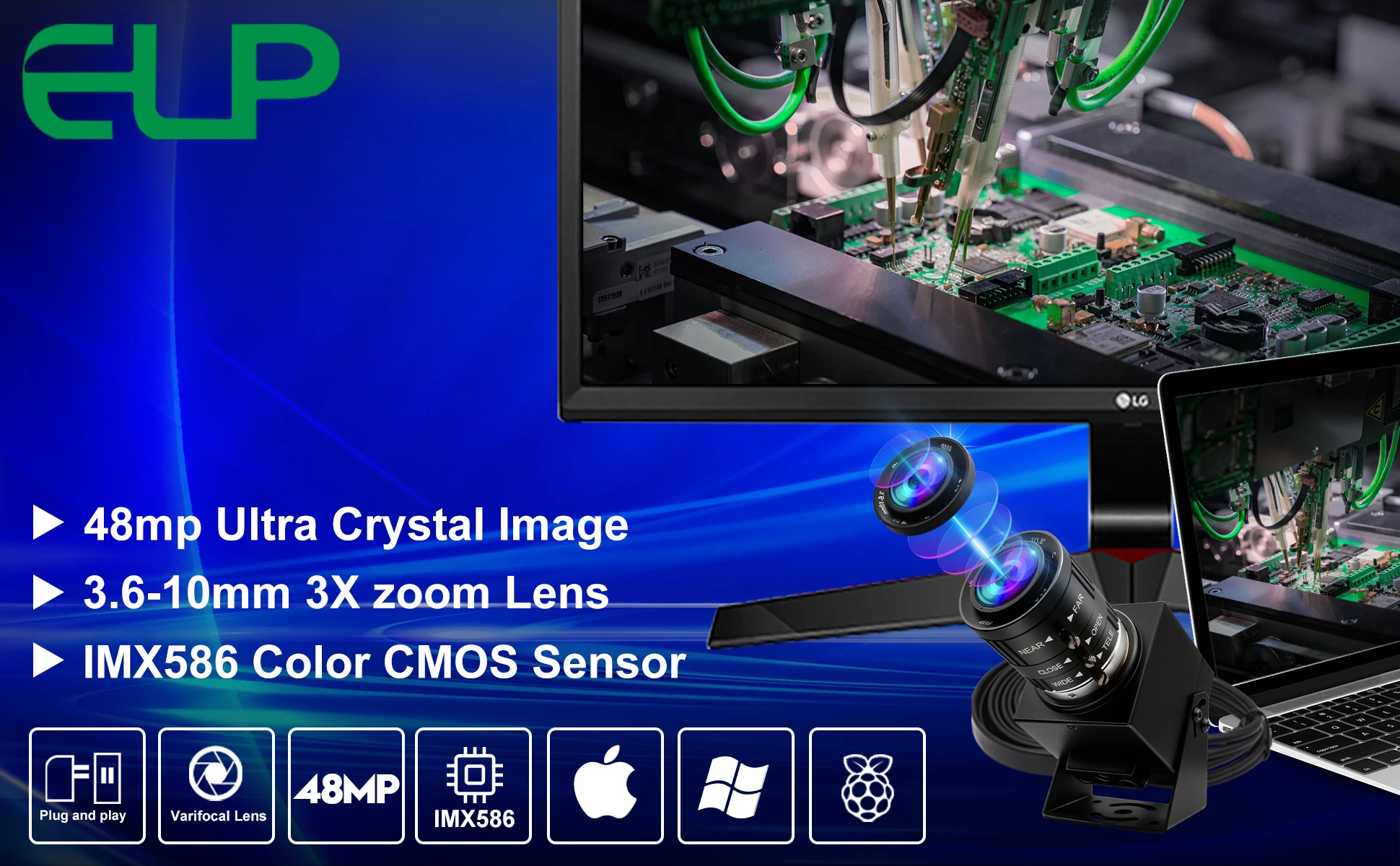

1.ELP Ultra HD 8000X6000 High Resolution 48MP USB Camera module.
2.High frame rate 30fps 48 megapixel usb camera, can do 30fps@3840*2160.
3.With high quality 3.6-12mm varifocal lens
4.With industrial grade high quality sensor IMX586.
5.Super Image reality, real color reproduction, without interpolation.
6.UVC Free Driver , Plug and Play, easily used on different systems.

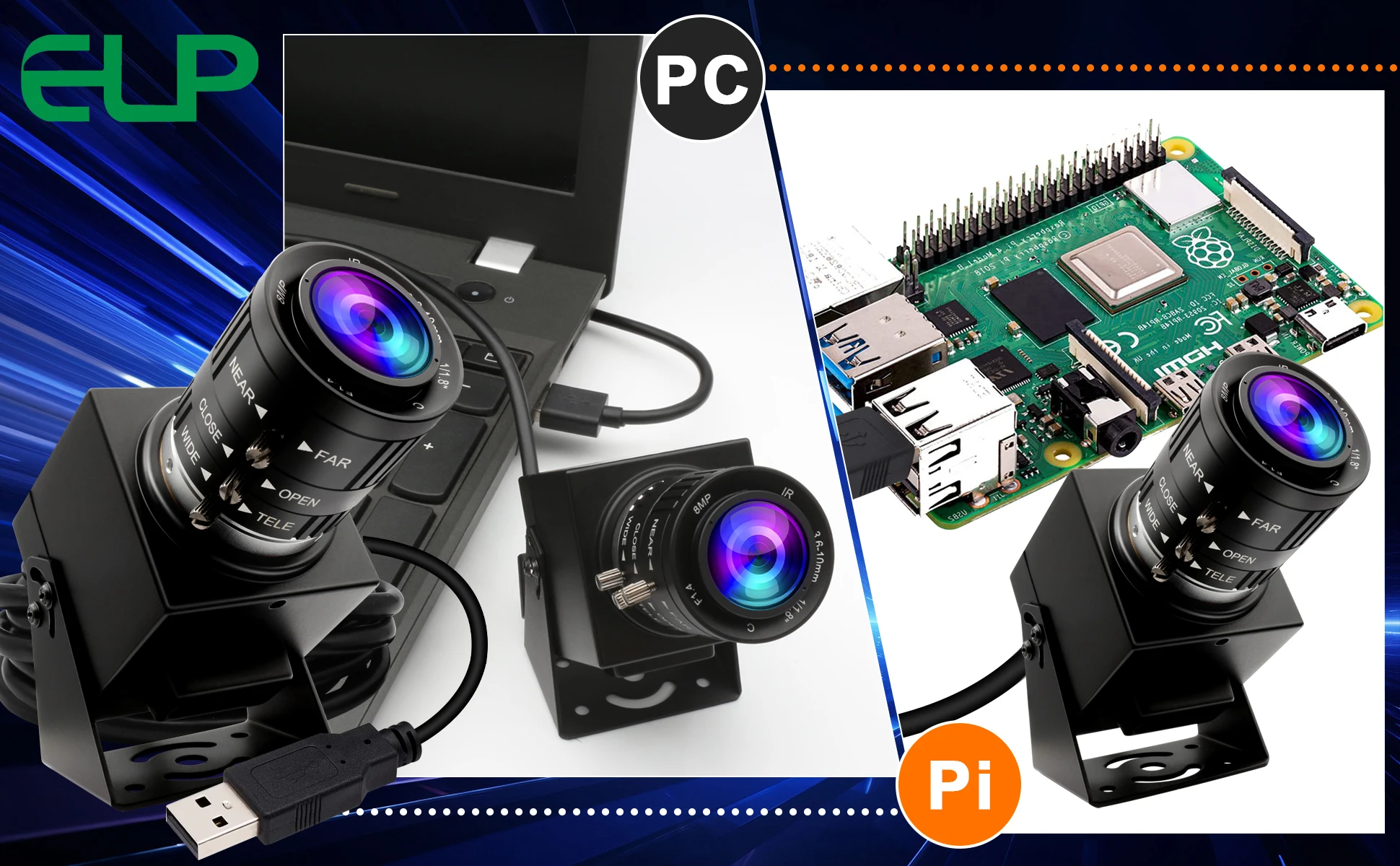

7.Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi...
8. OTG Support, can be used on Android smartphone, recommended app "USB Camera".
9.Wide Application: Well used for industrial camera, Video Conferencing,Live Streaming, Security, Medical device, Industrial Inspection,Scientific research and development , Education and Training, High Resolution Document Scan, High-speed photographic apparatus, Photo scanner... and so on.
|
|
ELP-USB48MP02-CFV(3.6-10) |
|
Sensor |
IMX586 |
|
Max. Resolution |
8000(H)*6000(V) |
|
Sensor Size |
1/2 inch (4:3) |
|
Compression Format |
MJPEG / YUV2(YUYV) |
|
Resolution & Frame Rate |
8000x6000 @ 5fps MJPEG |
|
Surface Mount Technology |
SMT |
|
Central Definition |
1000LW/PH (Center) |
|
S/N Ratio |
37dB |
|
Dynamic Range |
82dB |
|
Sensitivity |
1.4V/lux-sec@550nm |
|
Min.illumination |
0.3lux |
|
Shutter Type |
Electronic rolling shutter / Frame exposure |
|
Connecting Port Type |
USB2.0 High Speed |
|
AEC |
Support |
|
AWB |
Support |
|
AdjustableParameters |
Brightness,Contrast, Saturation, Hue, Sharpness, Gamma, |
|
White balance, Exposure |
|
|
Lens Parameter |
With 3.6-10mm varifocal lens |
|
Power Supply |
USB BUS POWER 4P-2.0mmSocket |
|
Operating Voltage |
DC5V |
|
Working Current |
550mA- 650mA |
|
Board Size |
Double-deck, 38mm ×38mm |
|
Storage Temperature |
-20°C to 80°C |
|
Working Temperature |
0°C to 70°C |
|
USB Cable |
Standard 2m |
|
Operating System Request |
WinXP/Vista/Win7/Win8/Win10/Win11 etc. |
|
Linux with UVC(above linux-2.6.26) |
|
|
MAC-OS X 10.4.8 or later |
|
|
Android 4.0 or above with UVC |
Application of 48mp usb camera module
1. Video Conferencing: With the rise of remote work and online meetings,a 48MP USB camera module can be used to provide high-quality video forvideo conferencing applications.
2. Live Streaming: Content creators and streamers can use a 48MP USB
camera module to capture high-resolution video,providing high-quality footage for their audience.
3. Security and Surveillance: A 48MP USB camera module can be used in
security and surveillance applications,providing high-resolution images and videos with autofocus capabilities for better analysis and identification.
4. Medical Imaging: In the medical field,a 48MPUSB camera module can be used for imaging applications, such as telemedicine and remote diagnosis.
5. Industrial Inspection: A 48MP USB camera module can be used in industrial inspection applications, providing high-resolution images withautofocus capabilities for quality control and analysis.
6. Research and Development : A 48MP USB camera module can be used in
scientific research applications, such as microscopy and spectroscopy,to capture high-resolution images and videos with autofocus capabilities for better analysis and documentation.
7. Education and Training: A 48MP USB camera module can be used in
education and training applications,providing high-quality videos for better demonstrations and lectures.
Overall,a 48MP USB Camera can be used in a winde range applications where high-resolution images and videos are required
