SPECIFICATIONS



Alarm Type: None



Brand Name: SIMICAM

Camera material: metal

Certification: CE

Choice: yes

Connectivity: Closed System/CCTV Wired

Distancia del IR (M): 15m

Focal Length: 3.6mm

Focus: 3.6mm

High-concerned chemical: none

Installation: Side,Ceiling,Normal

Internal Storage: None

Lens (mm): 3.6mm

Model Number: H50M1/H50M2

Power supply (v): DC 12V 2A

Remote View: NO ,but can be remoted view with AHD DVR

Resolution: HD 720P/1080P for option

Sensor: CMOS

Shell: Aluminum alloys

Specific: IR-CUT filter

Style: Bullet Camera,ahd camera

Style1: Analog camera

Style2: camera for dvr

Style3: dvr camera

Style4: 1080p ahd camera

Style5: 720p ahd camera

Style6: Surveillance video camera

Style7: security camera

Style8: Surveillance Camera

Supported Mobile Systems: None

Technology: INFRARed

Video Compression Format: H.264

Viewing Angle : 85°

Waterproof: IP66



Analog AHD Video surveillance Camera 1080P 2.0MP 3000TVL NTSC/PAL Waterproof CCTV DVR Camera Night Vision Security Surveillance

Important TIP:

1. This package do not include thepower adapteror BNC cable.

2.Make sure you have a AHD DVR for the AHD cameras .you will can't view or record without it.It is veryveryvery important !!! Pls don't buy it if you don't have AHD DVROr you can buy our DVR.!!!

3. package:1pcsCamera+1pcs Screwbag

4.The camera has 1080p / 720p option. Please confirm that your DVR supports that option before ordering. If you don't know, you can contact us.

Why choose us？

The shell of our camera is made of metal, which is more resistant to cold, heat and dust.HD AHD camera is an over-coaxial-cable analog HD video transmission standard, allowing long-distance

AHD (Analog High Definition), a new video format for enhanced CVBS (COMET*) & HD video transmission.

You can upgrade an old analog security system to 1.0MP/2.0MP HD cameras without changing cable routes.

Best choice for project reconstruction.

MUST work with AHD DVR.

Specifications
Image Sensor	H50W1	H50W2
	1/4" 1.0MP CMOS Sensor	1/3" 2.0MP CMOS Sensor
TV System	PAL/NTSC
IR CUT	Yes
Active Pixel	1280*720	1920*1080
SYNC.	Internal
Resolution	720P	1080P
VIDEO OUT	1Vp-p,75ohm, BNC
Minimum Illumination	0 Lux ( When IR is on)
Auto compensation	Auto
IR LEDs	24 PCS IR LEDs
IR Distance	about 15M
Lens	3.6 mm default
Electric Shutter	1/50s-1/50000s
S/N Ratio	>50dB
Day/Night	Auto(ICR) / Color / B/W
Power Supply	DC12V±10%
Waterproof	Indoor
Working temperature	-15°~50°
Transmission distance	Over 500m via 75-3 coaxial cable

Waterproof case,suitable for indoor and outdoor

IR Cut Filter Built in

Automatically switch to get better video images

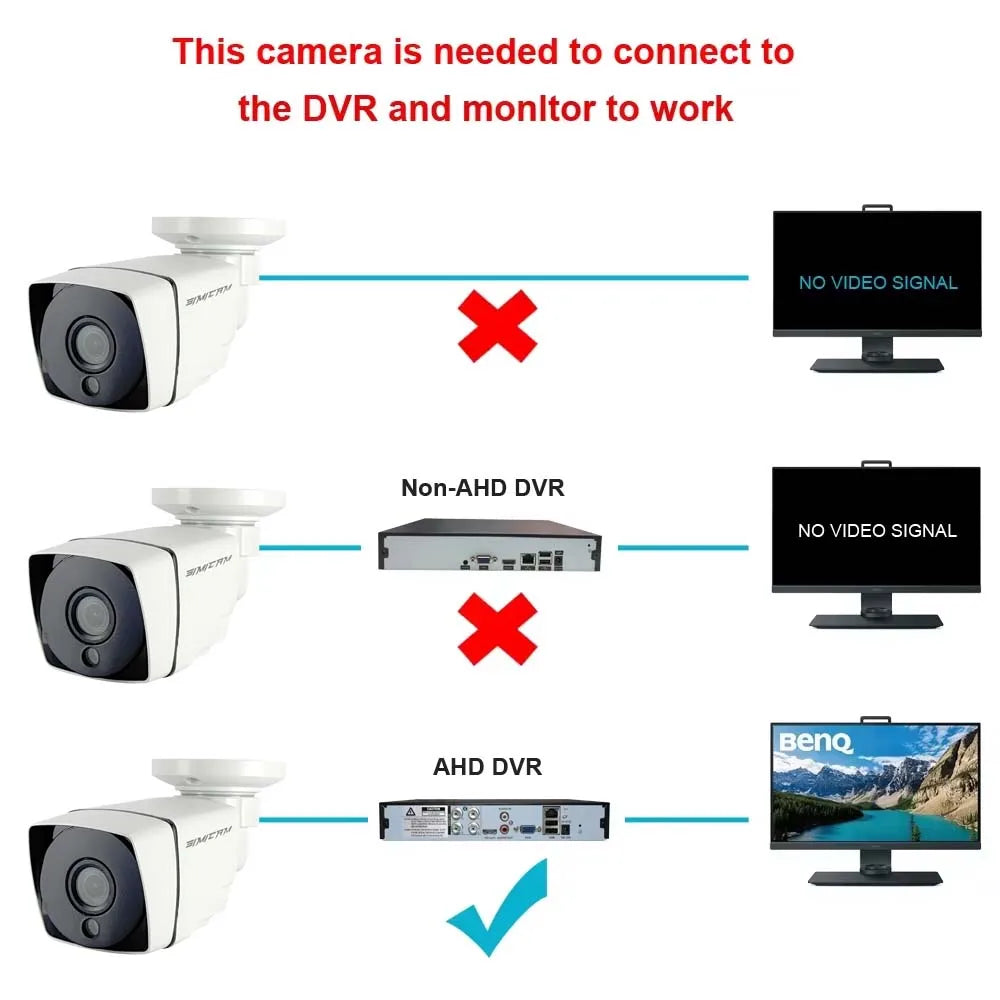

Camera suitable for connecting DVR, no direct connection monitor is supported

AHD camera needs to use AHD DVR

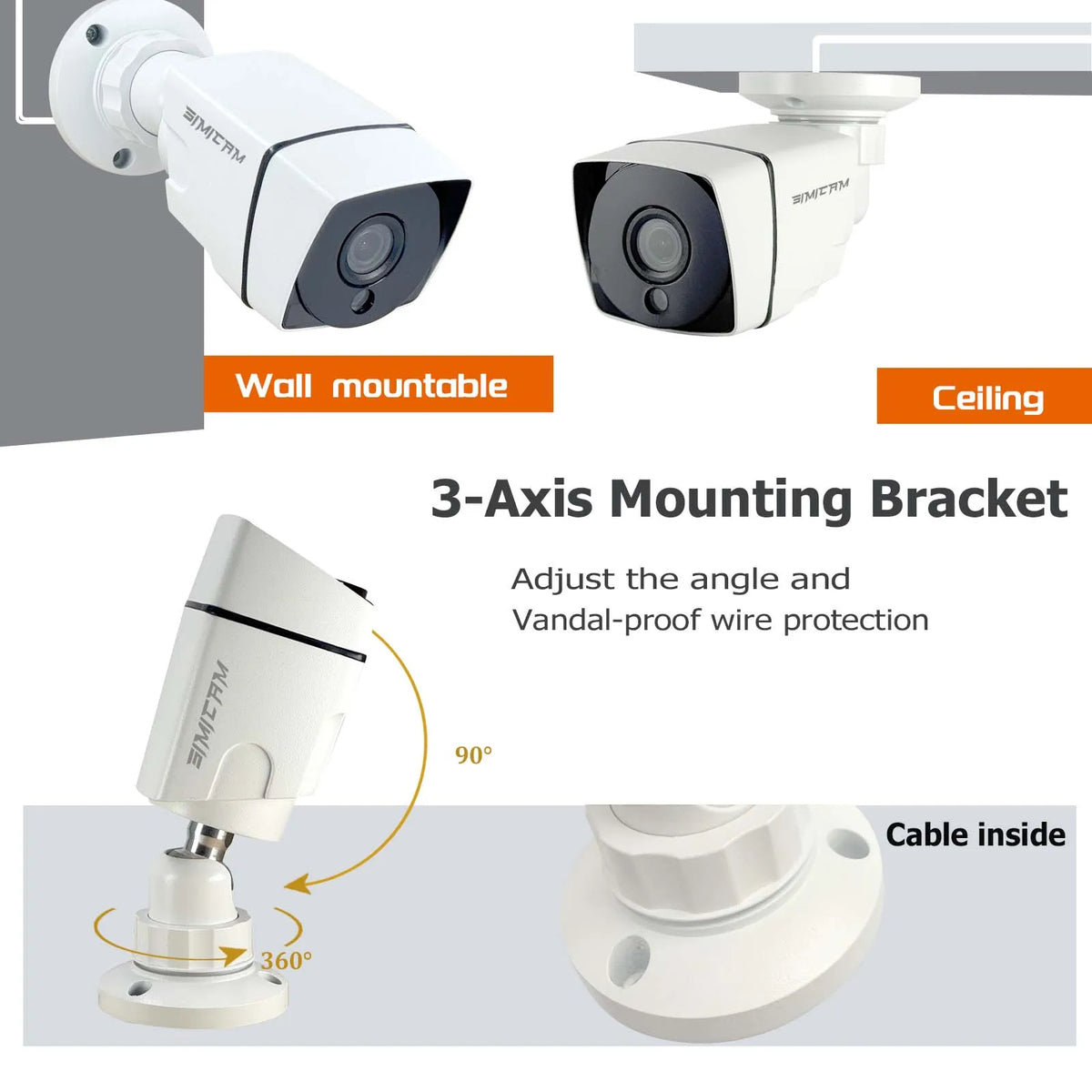

Universal bracket, you can manually adjust the camera to any angle.

Packing List

1080P/720P AHD CAMERA *1

Screw package * 1
