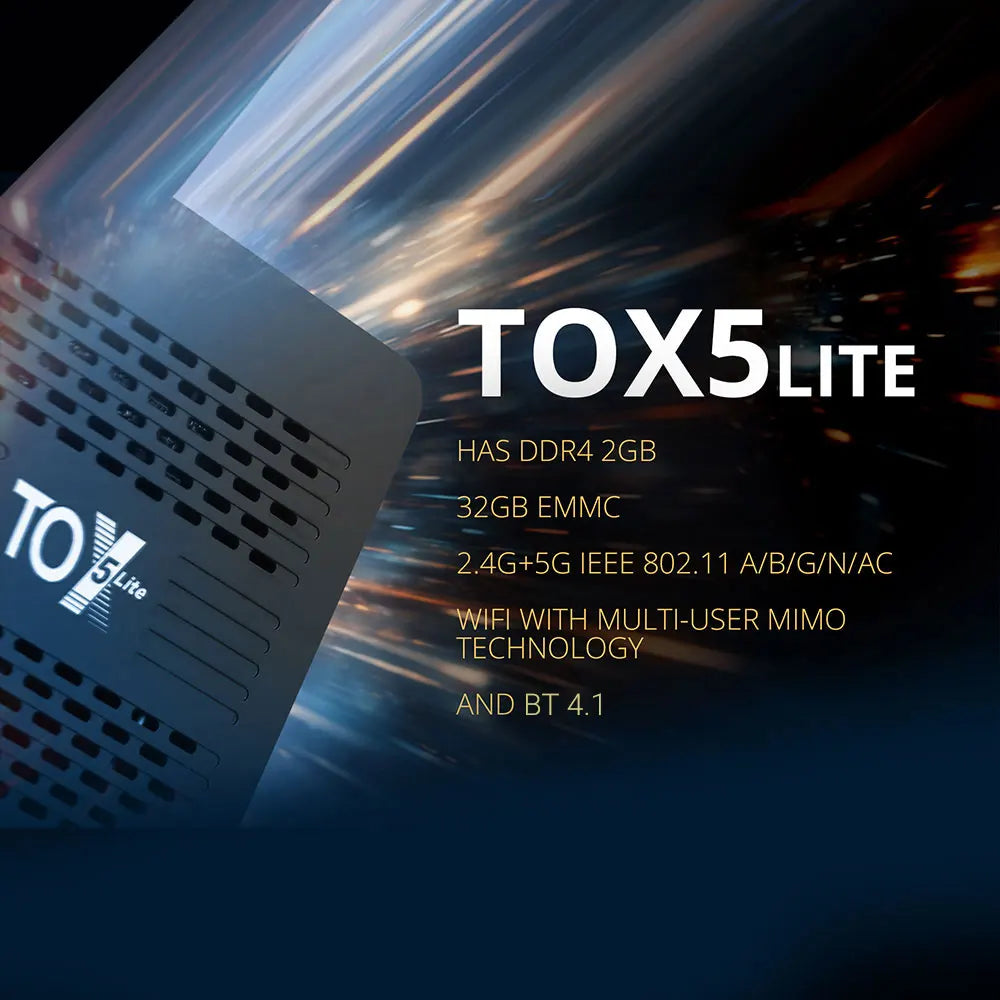

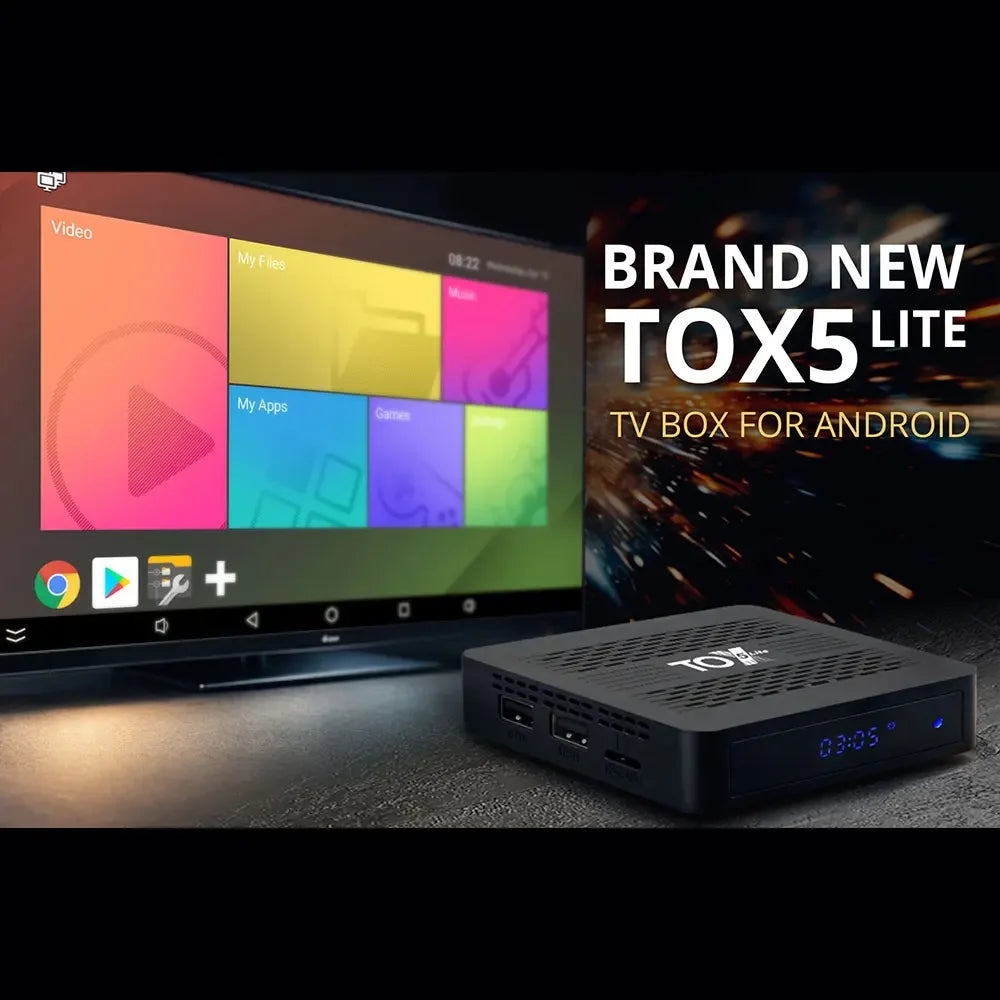

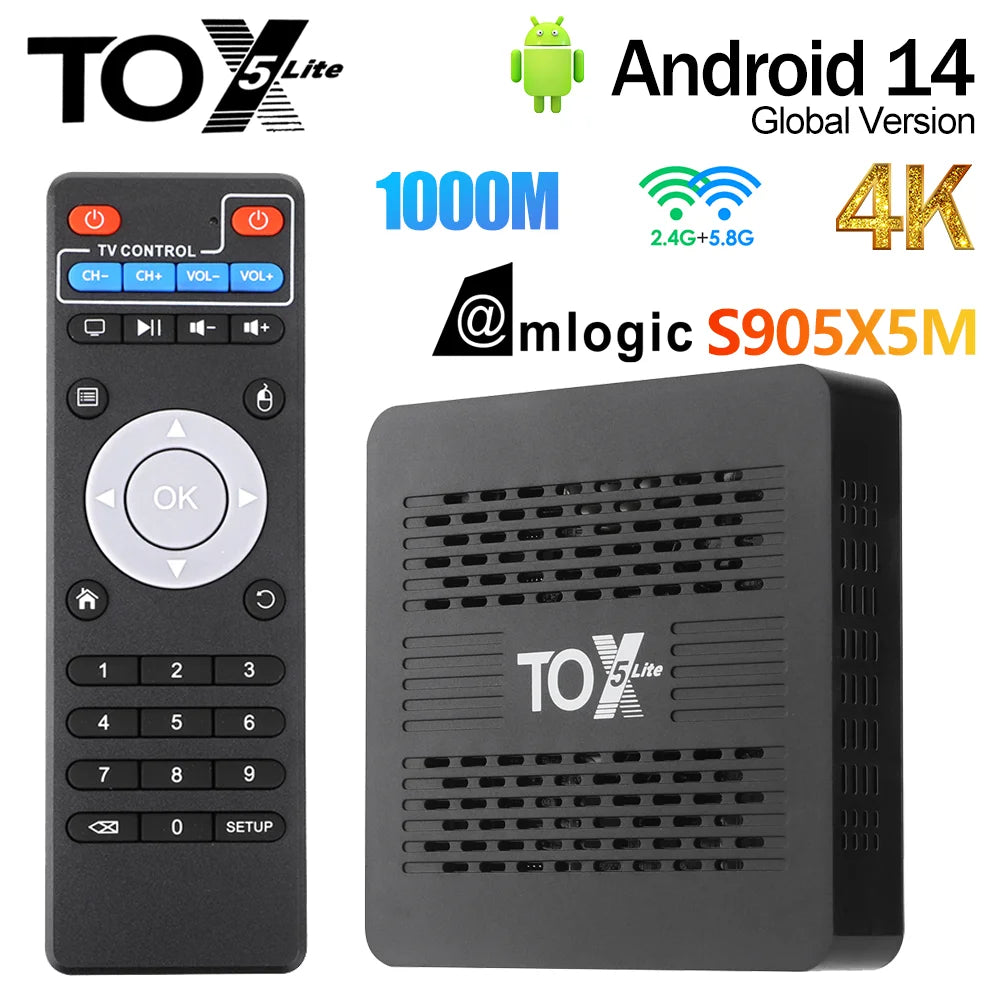

Highlights

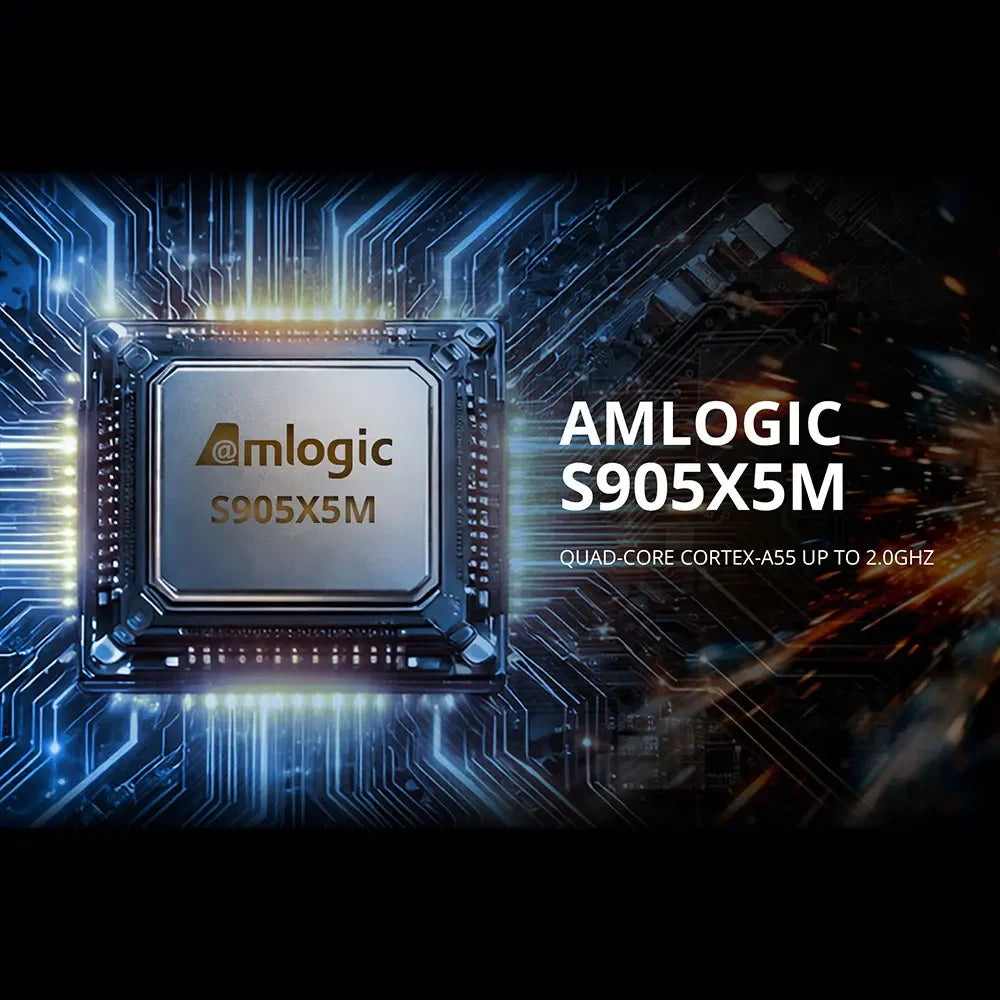

1, CPU: Amlogic S905X5M Quad core ARM Cortex-A55
2, GPU:ARM G310 V2 ;

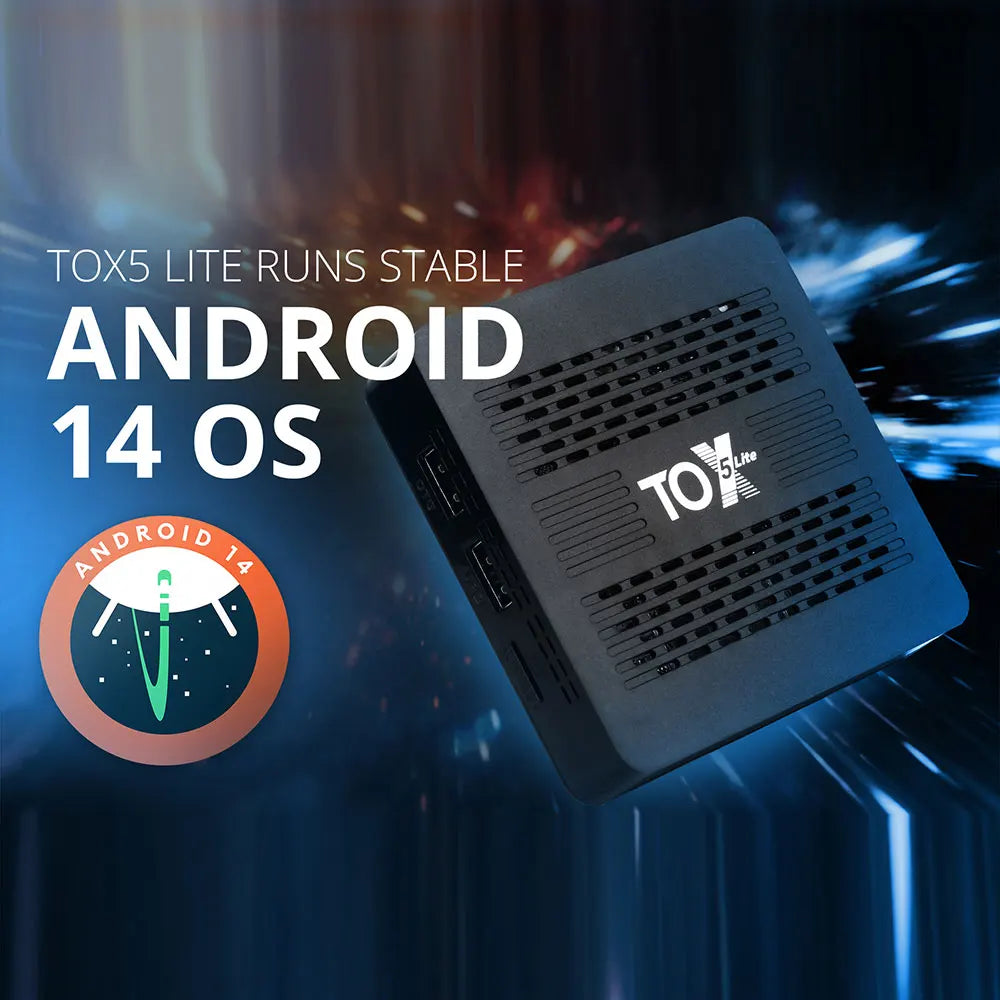

3, Android 14 OS;
4, Support: H.265, 4K@60pfs, AV1;
5, Support: DLNA,Miracast Protocol;
6, Support: 1000M LAN, Dual Wifi, BT4.1;

Technical Data

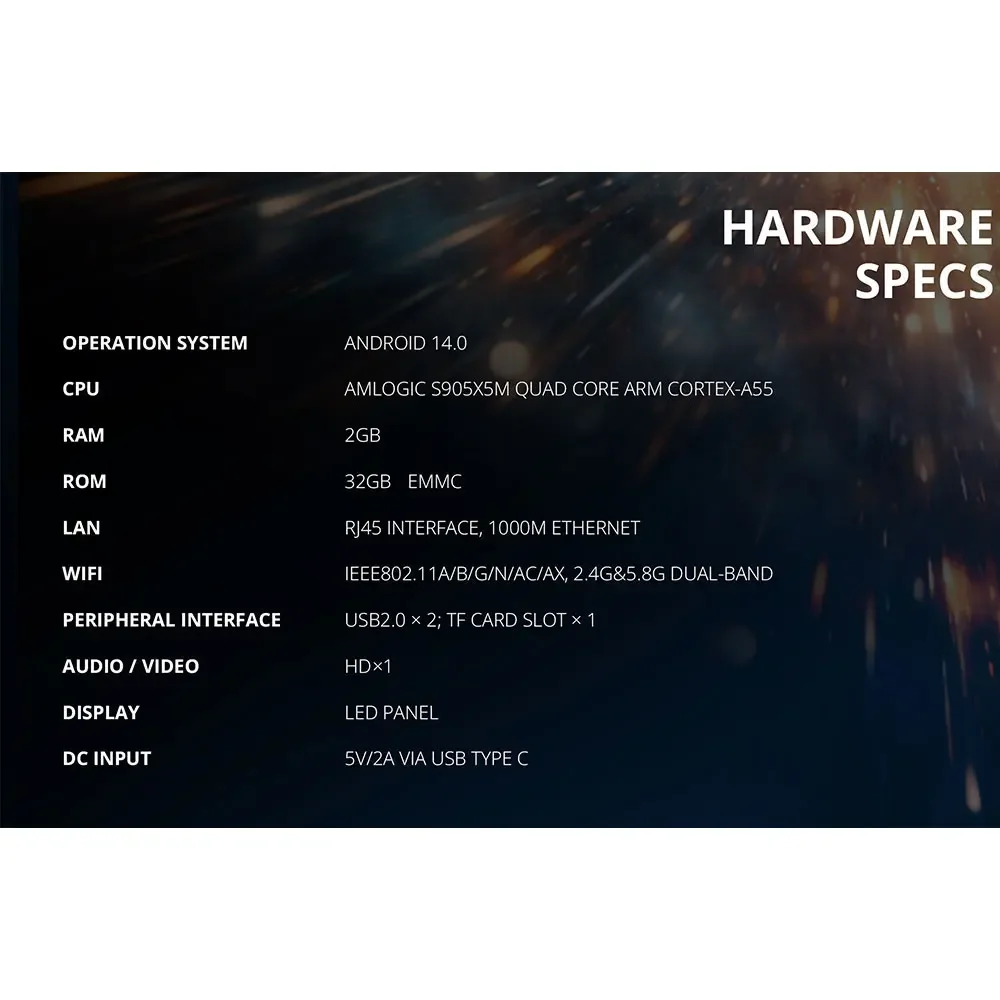

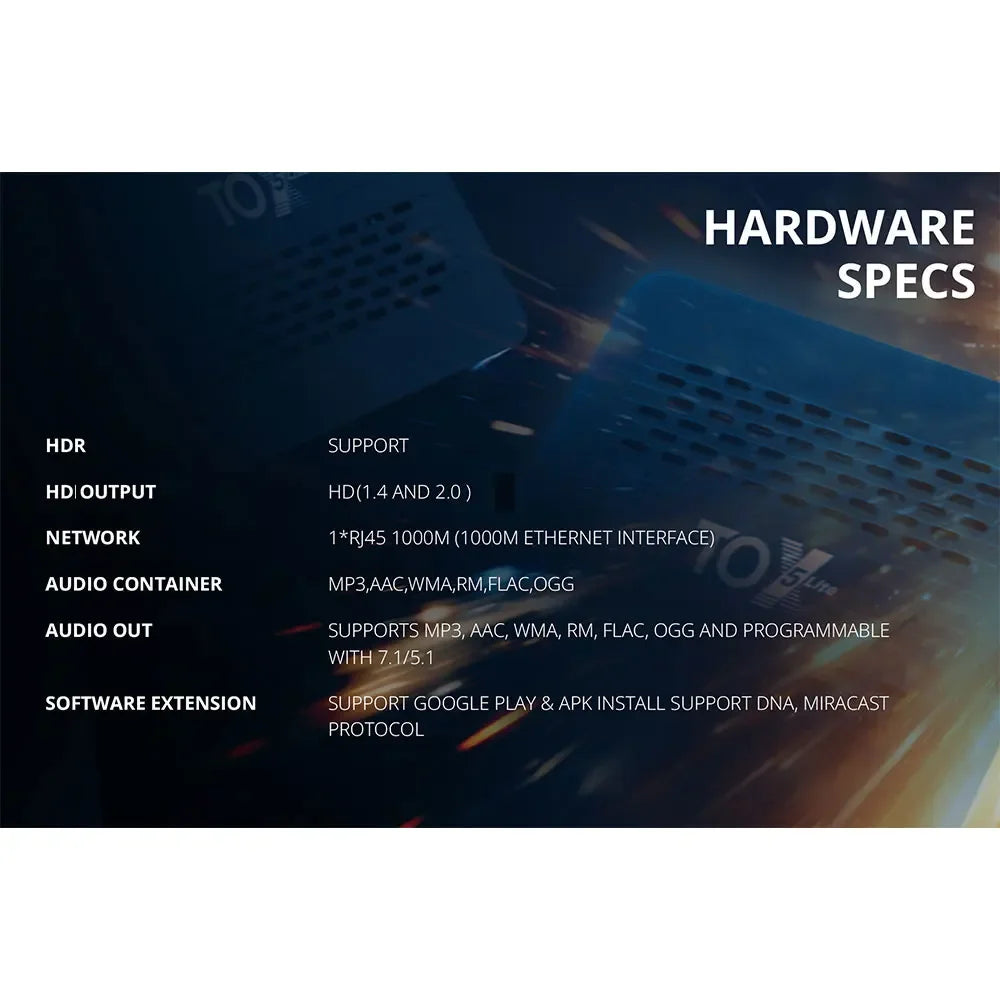

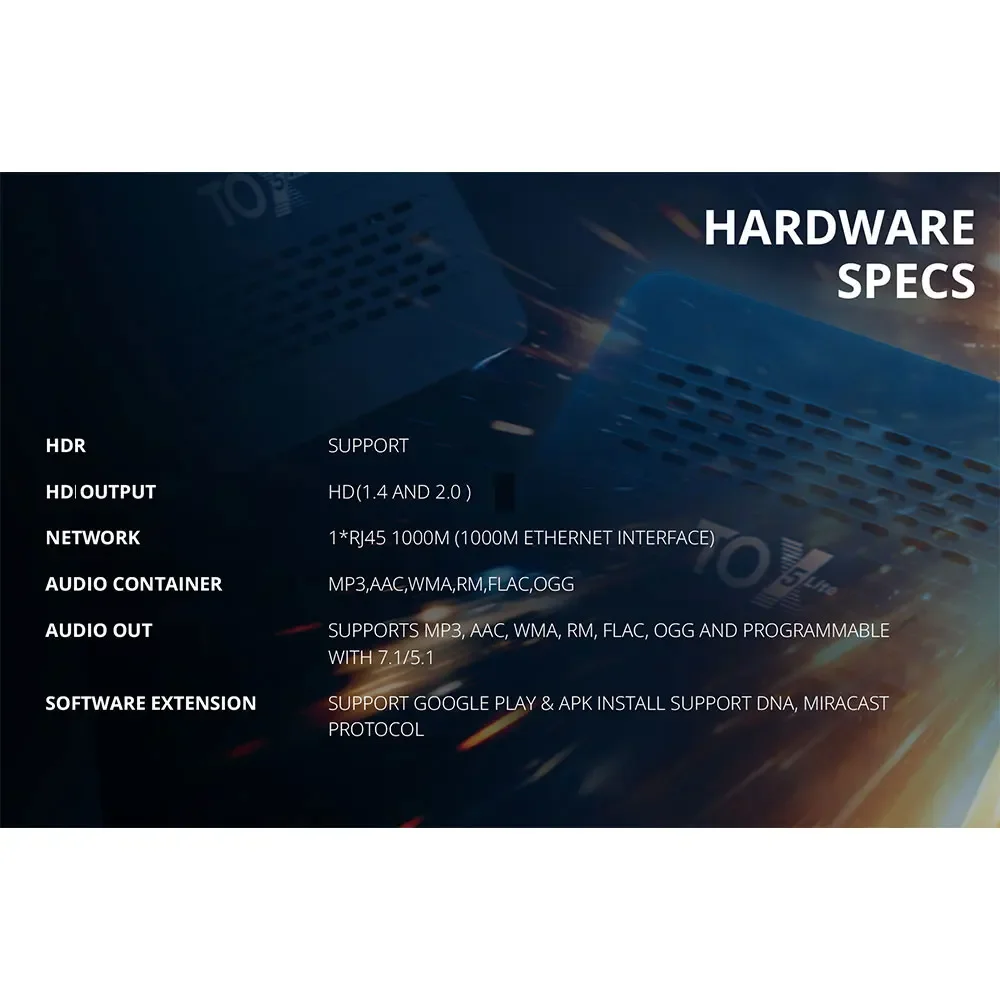

Hardware Spec:
Operation System
Android 14
Language
Chinese,English...Multi-Language support
CPU
(S905X5M)Quad core ARM Cortex-A55
GPU
ARM G310 V2
SDRAM
2GB
Flash
32GB EMMC(16GB/64GB optional)
Network
IEEE802.11a/b/g/n/ac, 2.4G&5.8G dual-band WiFi
BT
BT4.1
The extended storage
TF Card, up to 32GB
CEC
Support

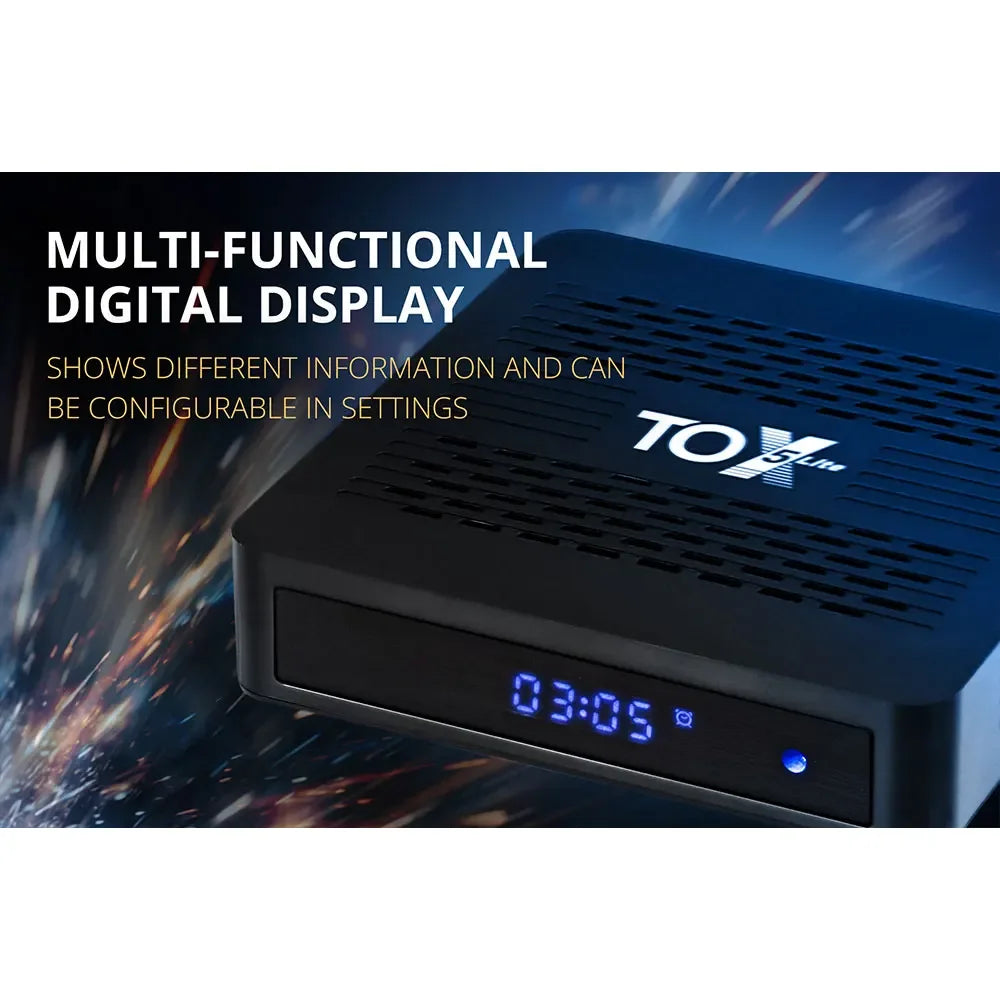

LED indicator
LED Panel
Power Supply
TYPE-C 5V/2A
HDR
Support
Interface:
HD Output
HD(1.4 and 2.1b ) to support maximum 4K@60fps output(HDCP2.2)
USB Port
1*USB 2.0 OTG, 1*USB 2.0 HOST
Led work light
Support
Network
1*RJ45 1000M
Power Supply
1*TYPE-C
TF Card
1*TF Card
Media Parameter:
Audio Container
MP3,AAC,WMA,RM,FLAC
Audio Out
Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable 7.1/5.1
Built-in SPDIF/IEC958 output and PCM input/output
Built-in stereo audio DAC
Video CODEC

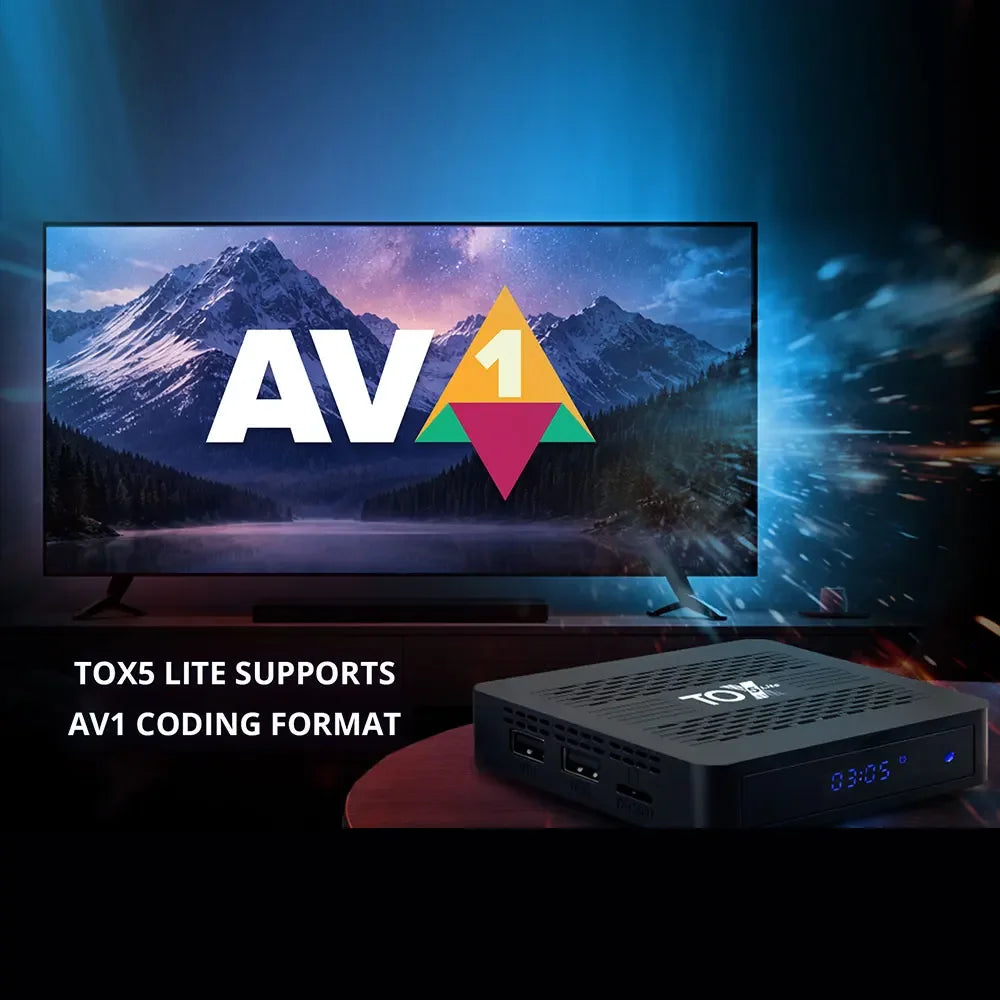

− AV1 MP-10@L5.1 up to 4Kx2K@60fps
− VP9 Profile-2 up to 4Kx2K@60fps
− H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
− AVS2-P2 Profile up to 4Kx2K@60fps
− H.264 AVC HP@L5.1 up to 4Kx2K@30fps
− MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
− WMV/VC-1 SP/MP/AP up to 1080P@60fps
− AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
− MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
− MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
− Multiple language and multiple format sub-title video support
− MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
− Supports JPEG thumbnail, scaling, rotation and transition effects
Software Extension
Support Google Play & APK install
DLNA,Miracast Protocol
Support DLNA,Miracast Protocol
Remote Control
Remote Controller
IM Software
Support Skype/QQ/MSN/GTALK (Depends on APK ）
Office Software
WORD/EXCEL/PDF(Depends on APK install)
Others Parameters
Operation Temperature
0~60℃
Storage Temperature
-10~60℃
Humidity Environment
5%-90%(No condensation）
Certification
CE, ROHS

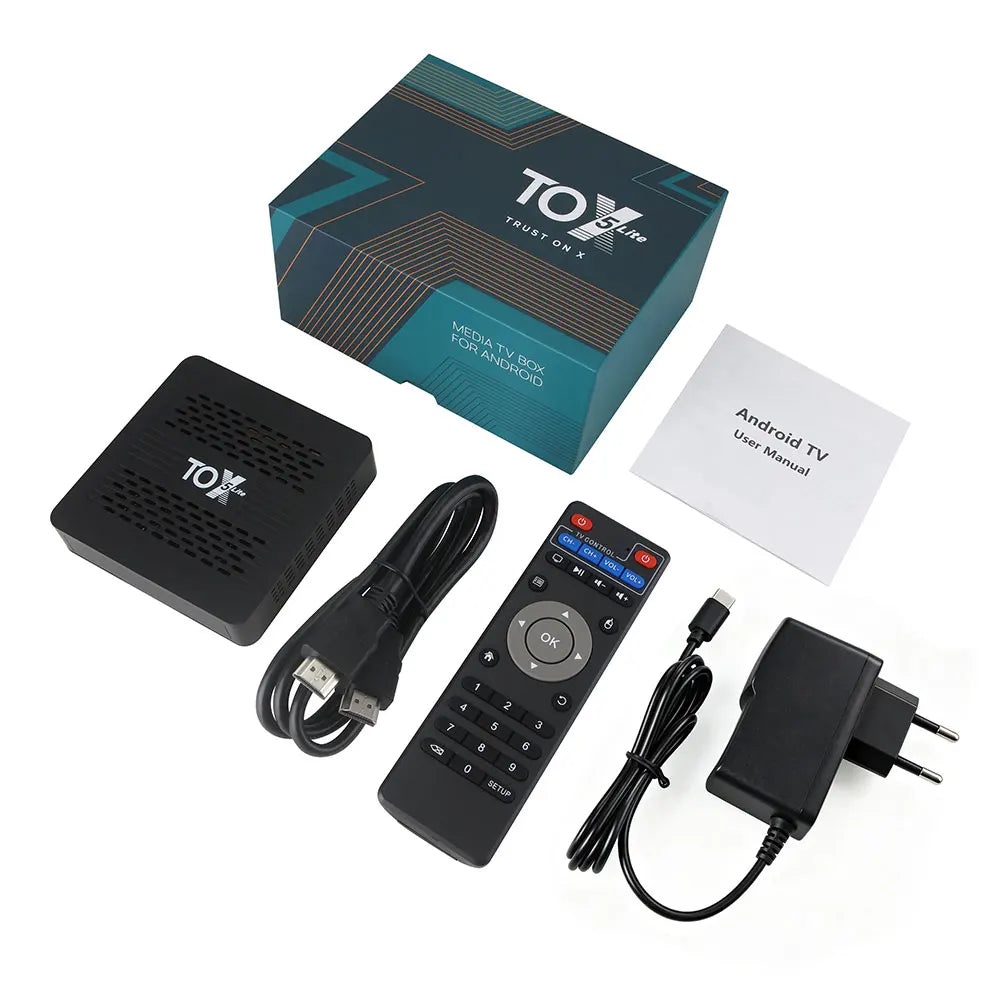

What's in Box?
1 x TOX5 Lite BOX
1 x Remote Control
1 x Power Supply(5V/2A)
1 x HD Cable
1 x User Manual

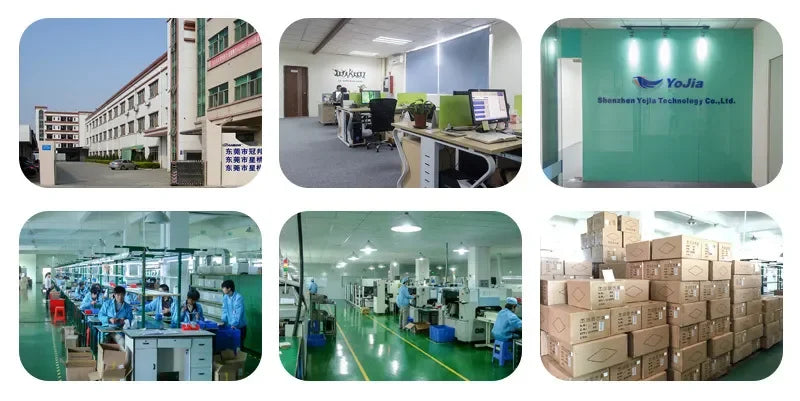

Company Profile
