UGREEN Triple Display USB C HUB 10Gbps 4K HDMI Adapter 8-in-1 Splitter with HDMI DP USB3.2 PD 100W Dock for MacBook Pro Air PC
Hurry up, only 8 items left in stock.
SPECIFICATIONS
1xDisplayPort Female Port: Used to connect display devices such as TVs, monitors, and projectors. Compliant with the DisplayPort 1.2 (DP 1.2) standard and supports HDCP 1.4 / 2.2 / 2.3 and HDR. CEC and ARC are not supported. Supports resolutions up to 3840x2160@60Hz, and is backward compatible with lower resolutions and refresh rates, including 2560x1440@144/120/60Hz and 1920x1080@240/144/120/60Hz.
2xHDMI Female Ports: HDMI Type-A ports for connecting display devices such as TVs, monitors, and projectors. Compliant with the HDMI 2.0 standard and support HDCP 1.4 / 2.2 / 2.3 and HDR. CEC and ARC are not supported. Support video output up to 4K@60Hz, 4:4:4 / RGB, and are backward compatible with lower resolutions and refresh rates, including 2560x1440@144/120/60Hz and 1920x1080@240/144/120/60Hz.
2xUSB-A Female Ports: Used to connect USB peripherals such as keyboards, mice, touchpads, speakers, webcams, USB flash drives, and external hard drives. Compliant with the USB 3.2 Gen 2 standard, with a theoretical maximum data transfer rate of 10Gbps, and backward compatible with USB 3.0 / USB 2.0 / USB 1.1. Supports BC 1.2 and hot swapping.
2xUSB-C Female Ports: Used to connect USB peripherals such as touchpads, speakers, webcams, USB flash drives, and external hard drives. Compliant with the USB 3.2 Gen 2 standard, with a theoretical maximum data transfer rate of 10Gbps, and backward compatible with USB 3.0 / USB 2.0 / USB 1.1. Supports BC 1.2 and hot swapping.
Brand Name: UGREEN
Certification: CE,FCC,RoHS
Choice: yes
Compatible Game Console: Steam Deck,ROG Alloy,Legion Go
Compatible PC Devices: Laptop
Compatible Systems: Windows,Linux,Chrome OS
Dolby Vision / Dolby Atmos: Supports Dolby Vision and Dolby Atmos.
Funtion: DP,USB-A,USB-C,Charging,HDMI-Compatible
High-concerned chemical: none
Input Port (1xUSB-C Female Port (PD Input)): Used to connect a PD power adapter to power the docking station and charge the host device. Supports reversible USB-C plug orientation. Compliant with the USB Power Delivery 3.0 (PD 3.0) standard and supports 20V / 15V / 9V / 5V voltage profiles. Backward compatible with PD 2.0. Supports up to 20V/5A input, with a maximum charging output of 85W to the laptop. Uses dynamic power reservation: Below 45W input: reserves 5W for the docking station; 45W-90W input: reserves 10W for the docking station; Above 90W input: reserves 15W for the docking station.
Input Port (1xUSB-C Male Connector): Used to connect to a host device, such as a laptop, tablet, or smartphone. Compliant with the USB 3.2 Gen 2 standard, with a theoretical maximum data transfer rate of 10Gbps, and backward compatible with USB 3.0 / USB 2.0 / USB 1.1. Supports the DisplayPort 1.4 (DP 1.4) protocol, HDCP 1.4 / 2.2 / 2.3, and HDR. CEC and ARC are not supported. The total video transmission bandwidth is 16.2Gbps.
Interface Type: USB Type-C
Material: aluminum,others,Plastic,Metal
Model Number: CM639
Package: Yes
Plug Type: None
Ports: 8,8
Product Name: USB HUB / USB C HUB / Docking Station
Standard: USB 3.2 Gen2
USB-C Extension Cable: Not Supported
Variable Refresh Rate (VRR): Supports VRR (Variable Refresh Rate), including NVIDIA G-SYNC and AMD FreeSync.
Windows Display Output Modes: Supports A+B+C+D Extended Mode - the laptop's built-in display and three external monitors can display four different screens simultaneously.

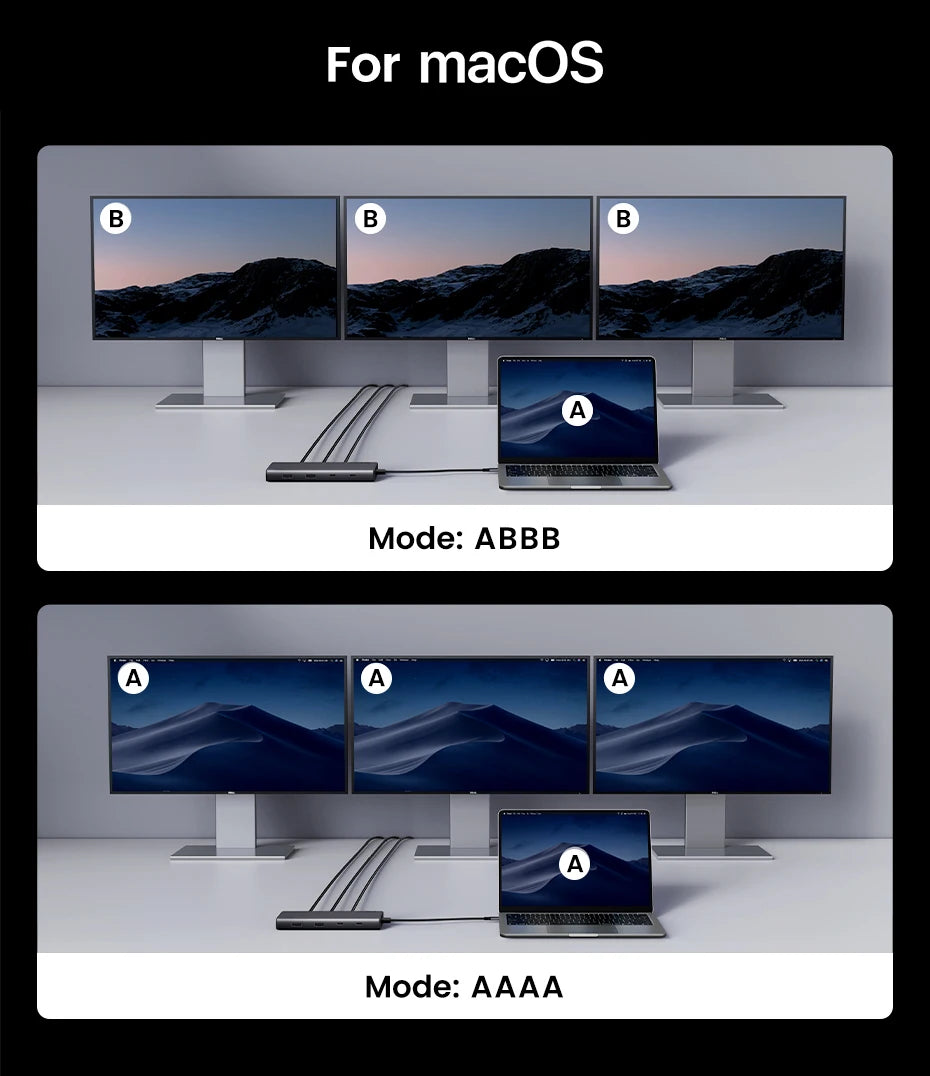

macOS Display Output Modes: Supports A+A+A+A / A+B+B+B Mirror Mode - when connected to three external monitors, the displays support full mirroring (A+A+A+A) or the built-in display showing content A while all three external monitors mirror the same content B (A+B+B+B).
About this item:

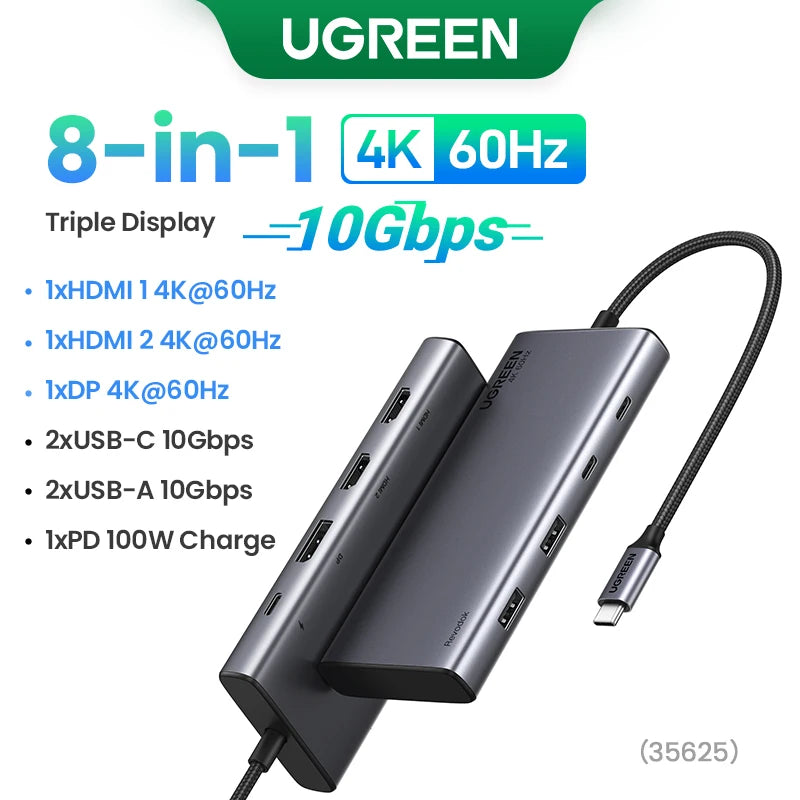

1. 8 in 1 USB C Laptop Docking Station: UGREEN triple docking station equips with two 4K HDMI ports, a 4k DisplayPort, two 10 Gbps USB-C 3.2 Gen 2 ports, two 10 Gbps USB-A 3.2 Gen 2 ports, 100W Power Delivery
2. 4K Triple and Dual docking station: This USB C adapter laptop docking station enables dual or triple display setups, delivering 4k resolution for both configurations. Please note that only Windows systems support MST-Multi Stream Transport for triple display, while Mac systems are limited to SST-Single Stream Transport
3. High-Speed Data Transfer: Boasting a USB 3.2 port with a lightning-fast data transfer rate of 10Gbps, this expansion dock allows for quick and efficient transfers of files, movies, and photos. Note: the 10Gbps USB-C interface is designed for data transmission only and does not support video output or charging
4. Robust 100W Power Delivery: Our Type-C hub docking station offers up to 85W of USB-C pass-through charging via the PD port, ensuring your laptop stays fully charged while reserving 15W for seamless operation of other ports. Enjoy the convenience of high-power charging. Please note that the Type-C PD charging port is compatible only with PD-equipped devices
5. Broad Compatibility: The USB-C Hub Multiport Adapter is compatible with almost all USB-C devices, such as MacBook Pro, MacBook Air, iMac, ThinkPad X1, ZenBook, iPad Pro, Chromebook, Surface, etc. Note: 8-in-1 product doesn't compatible with Lenovo Series Tablet.

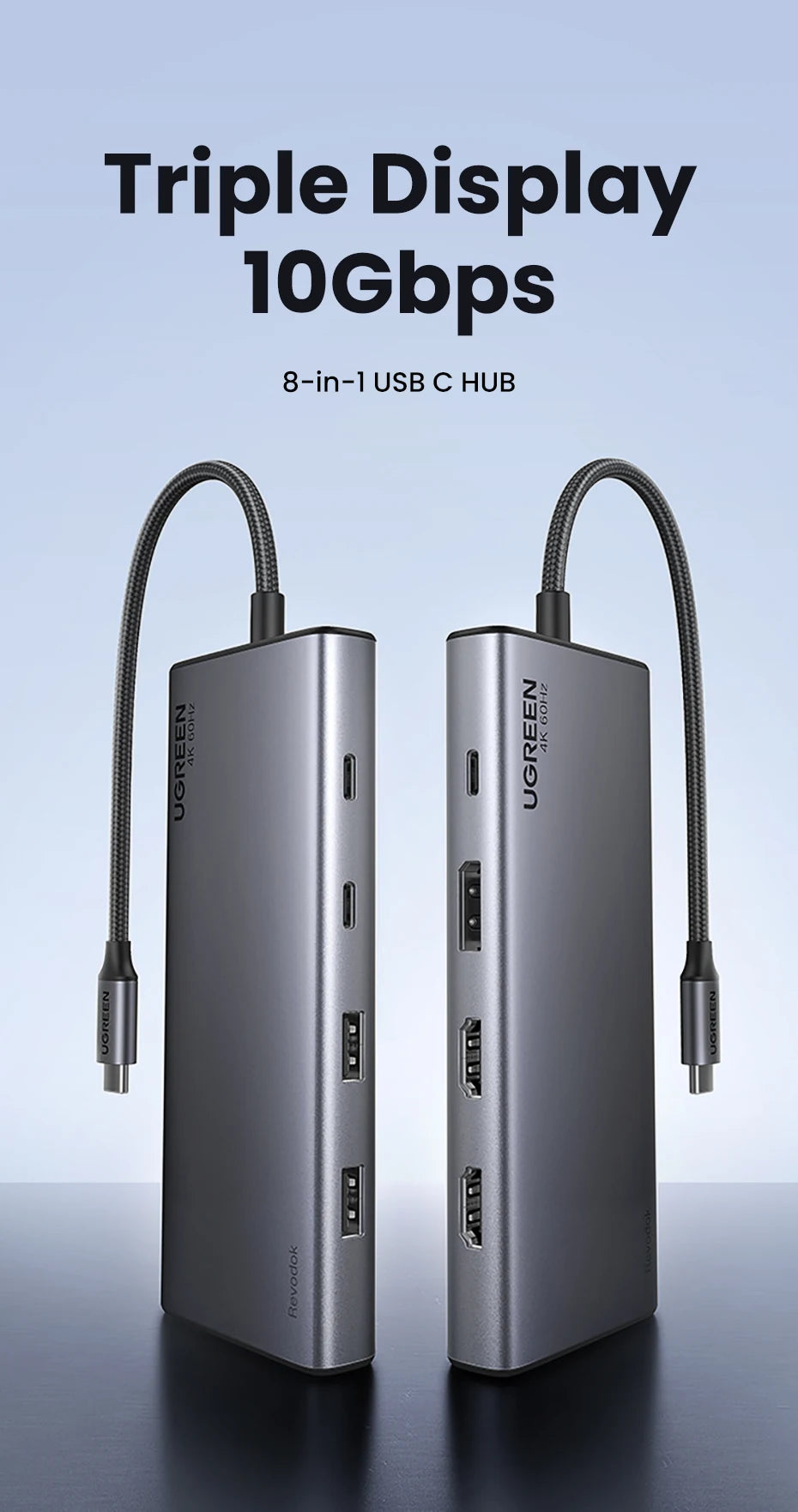

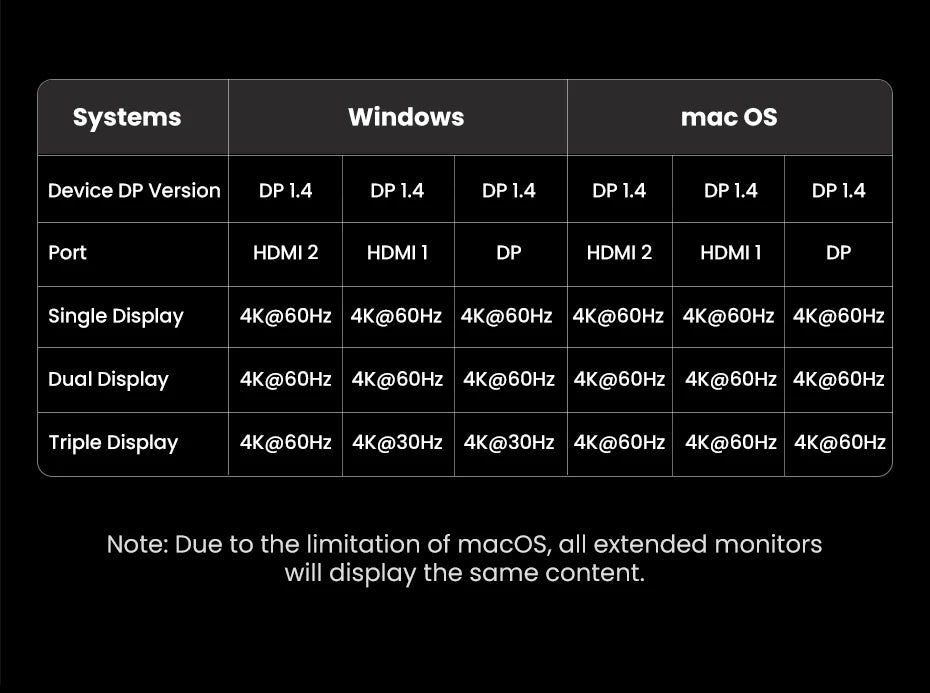

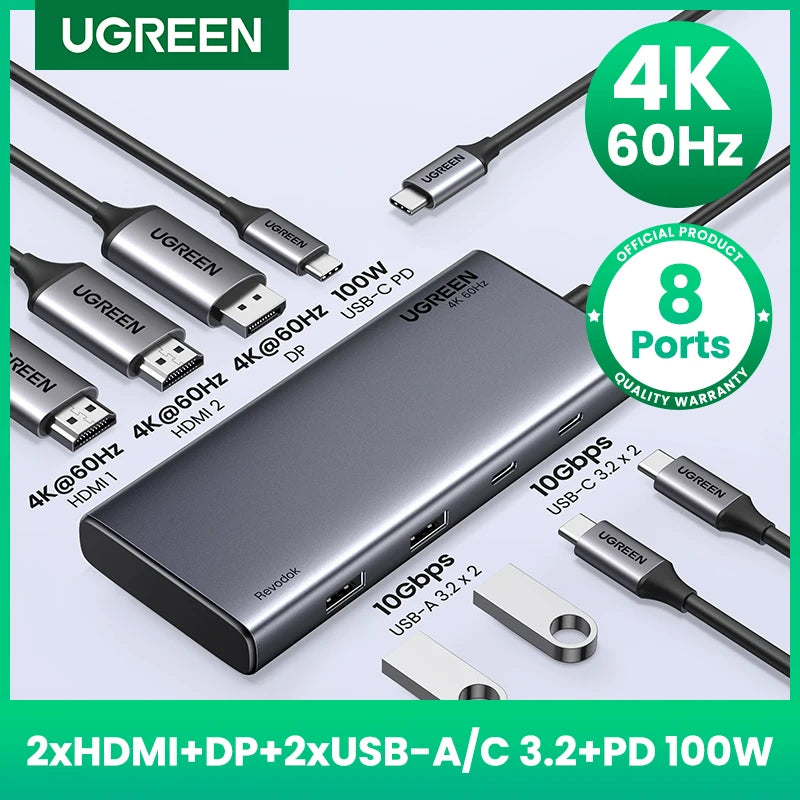

Triple Display - 2xHDMI+1xDP
10Gbps 8-in-1 USB-C HUB

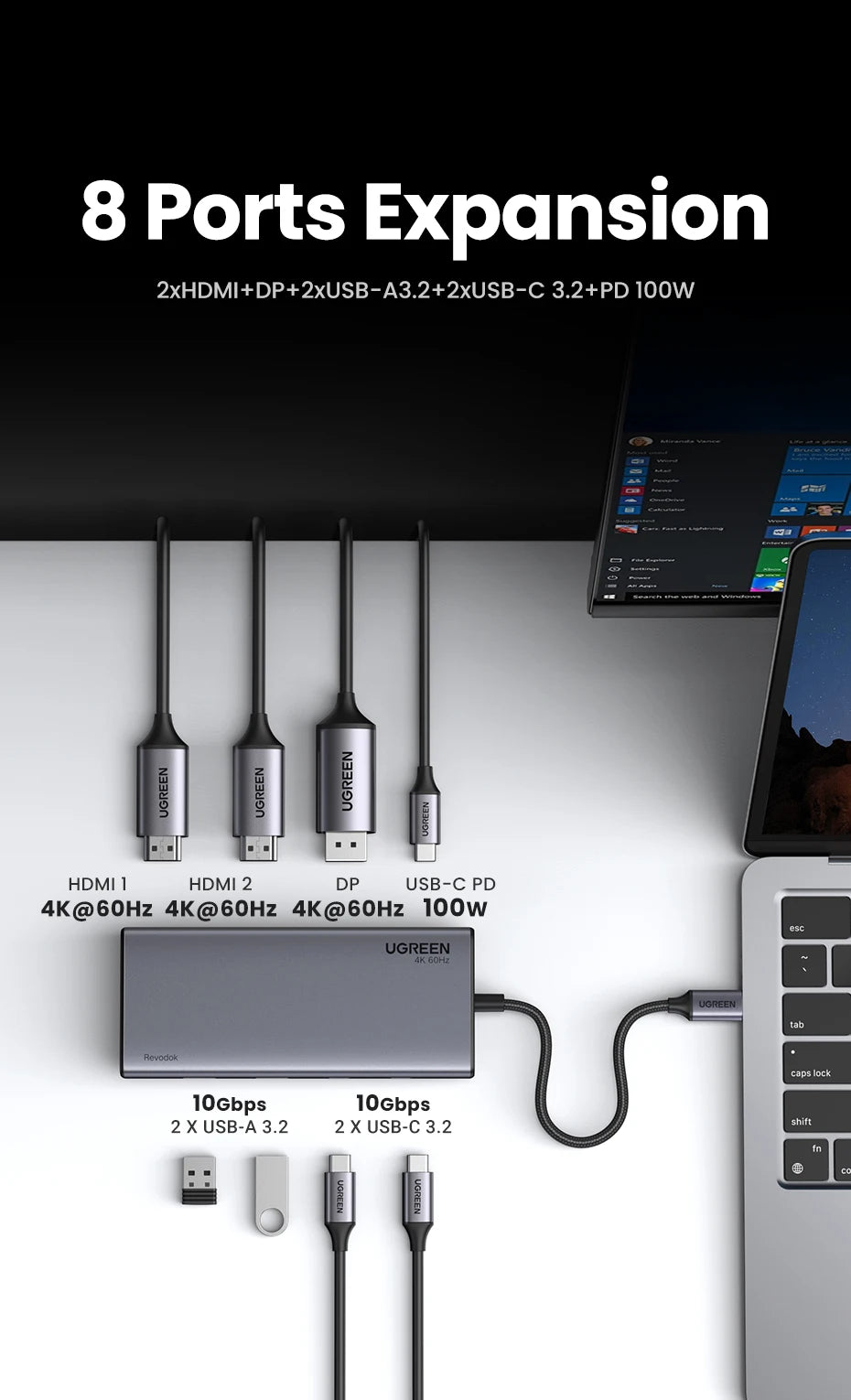

8 Ports Expansion
2xHDMI+DP+2xUSB-A3.2+2xUSB-C 3.2+PD 100W

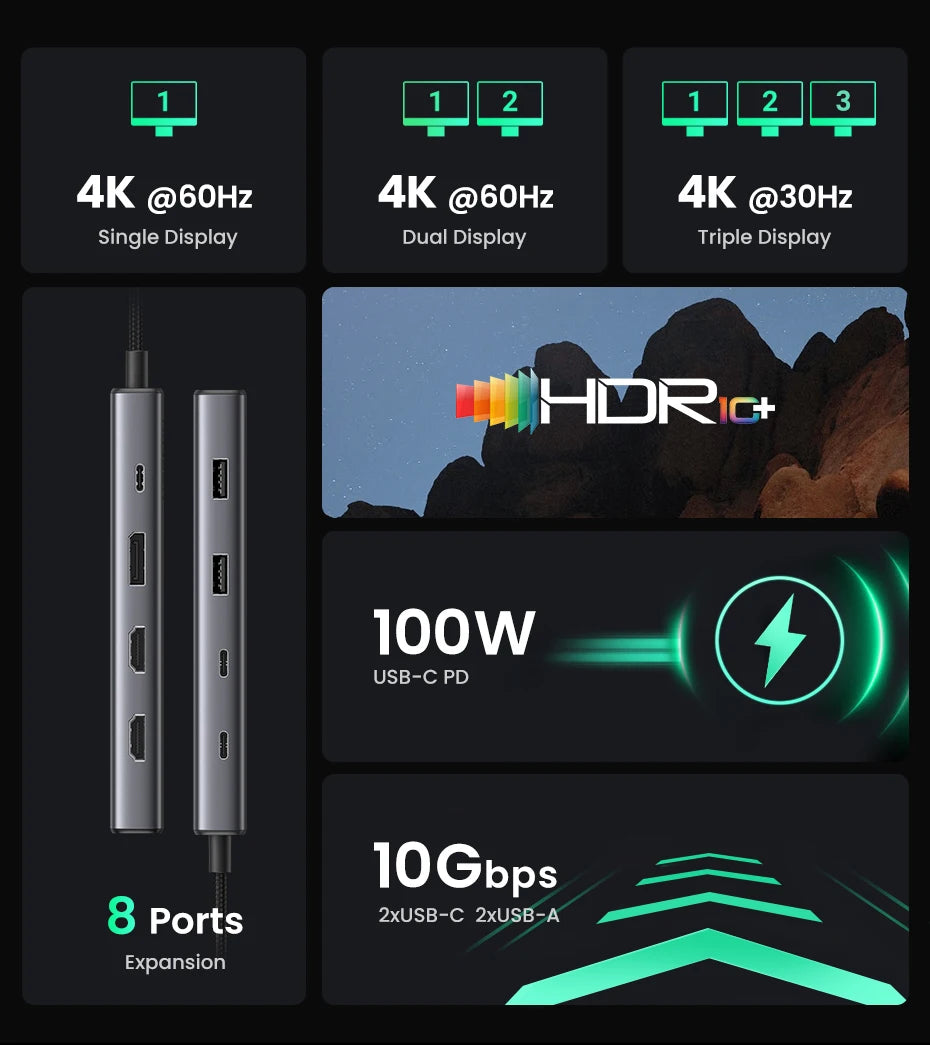

Triple 4K@30Hz Display
Using two HDMl and DP at the same time support 4K@30Hz display
DuaI 4K@60Hz Display
Using 2 X HDMI or HDMI+DP ports simultaneously, support 4K@60Hz display max.
Single 4K@60Hz Display
Using single HDMI1/HDMI 2/DP, support 4K@60Hz

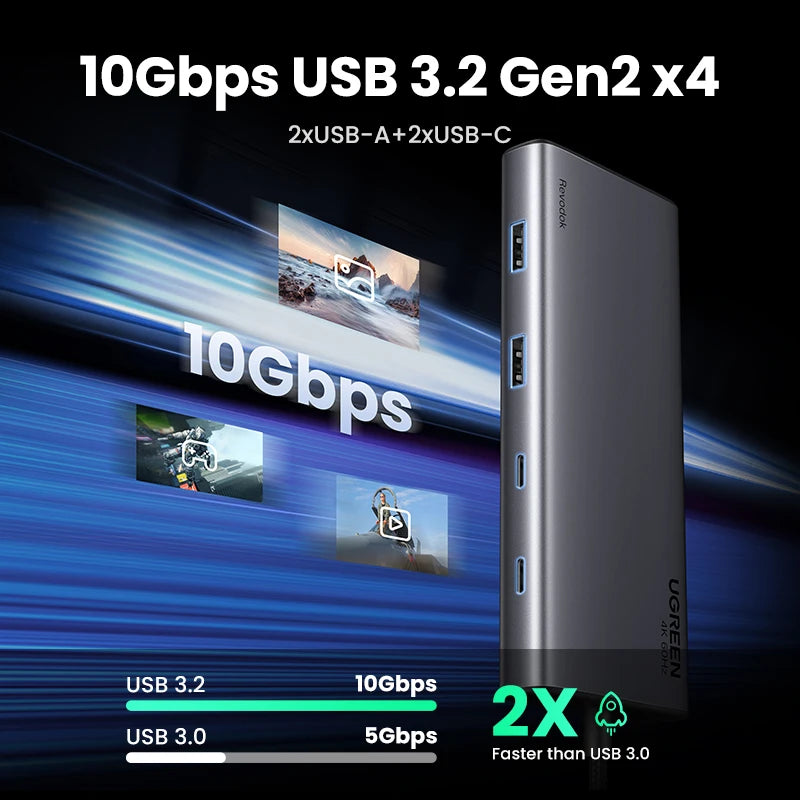

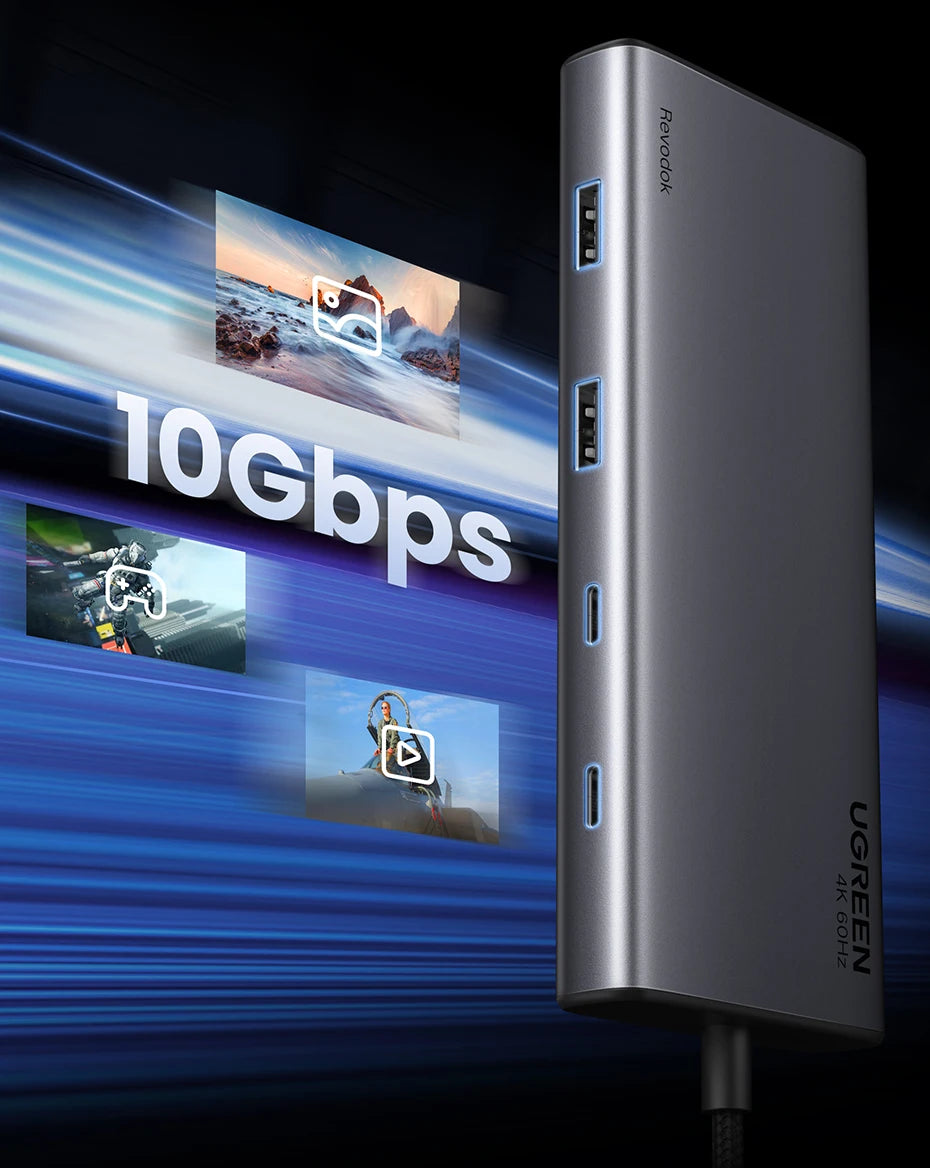

10Gbps USB 3.2 Gen2 x 4
2xUSB-A+2xUSB-C
Connect to Massive USB Devices
Dynamic HDR Color Picture
Adjust the picture contrast between bright and dark places

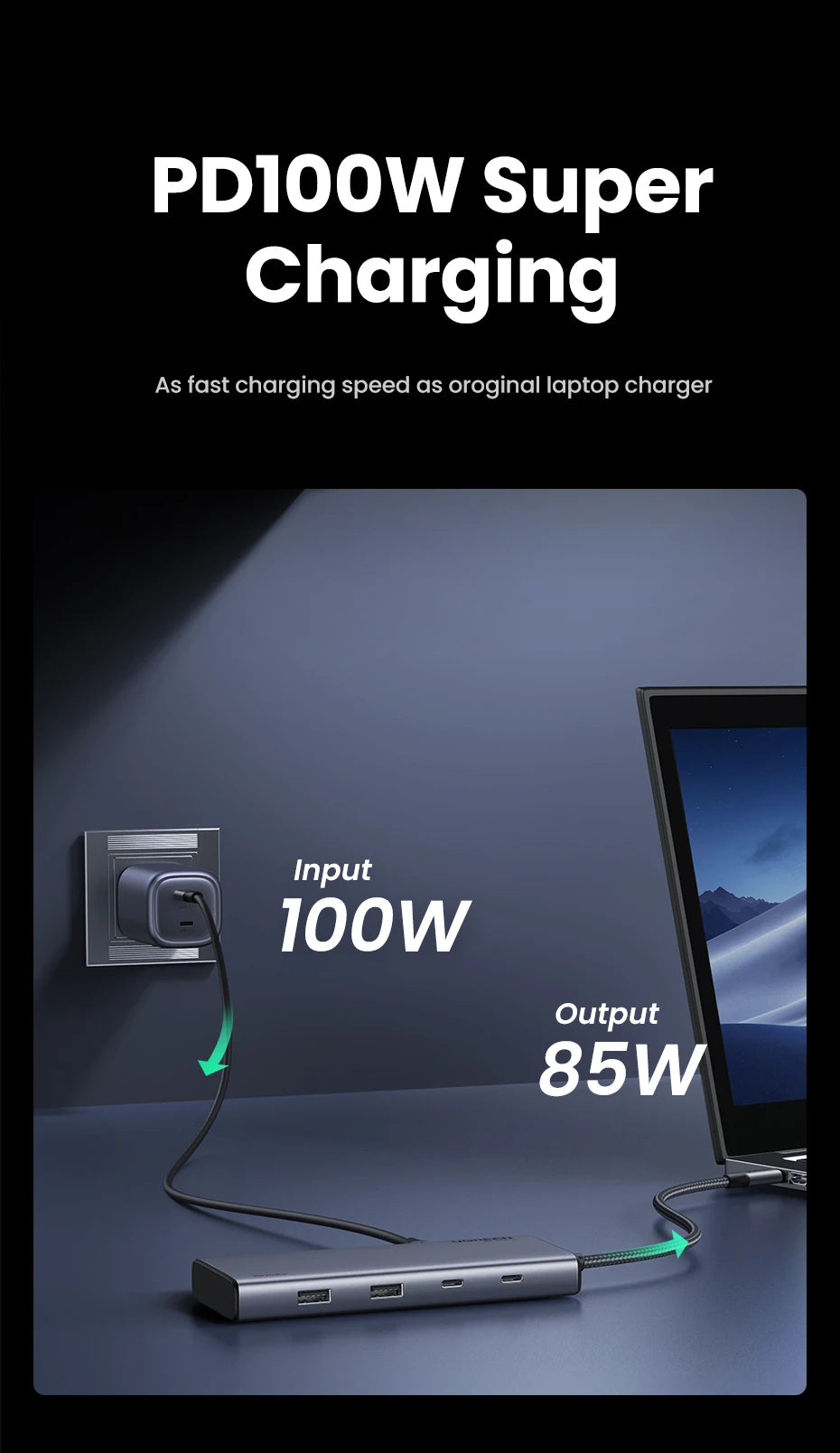

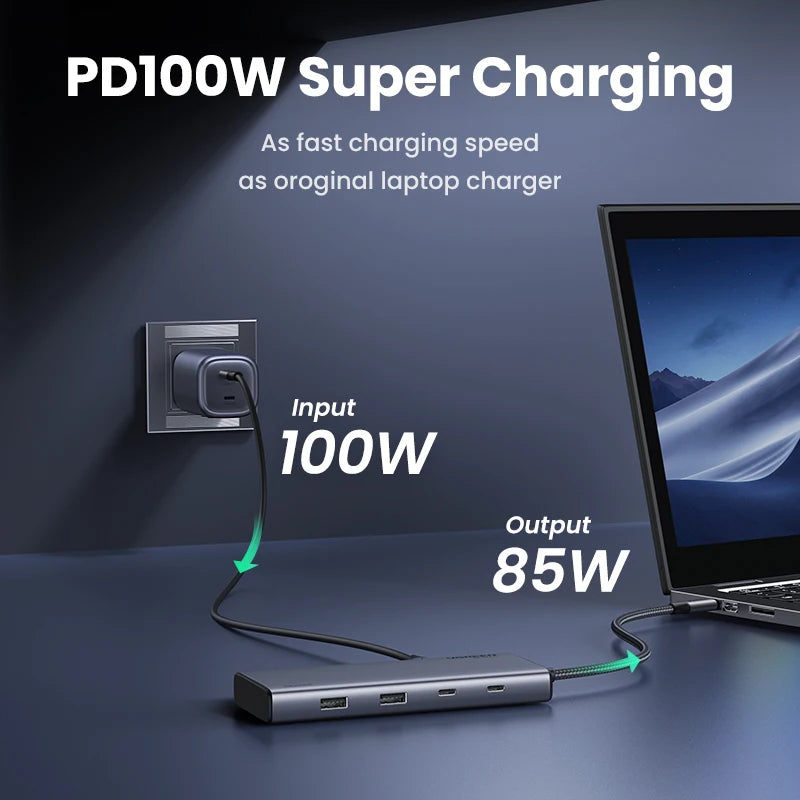

PD100W Super Charging
Supports up to 85W USB-C pass-through charging via USB-C PD port, and reserves 15W for other interface operation.

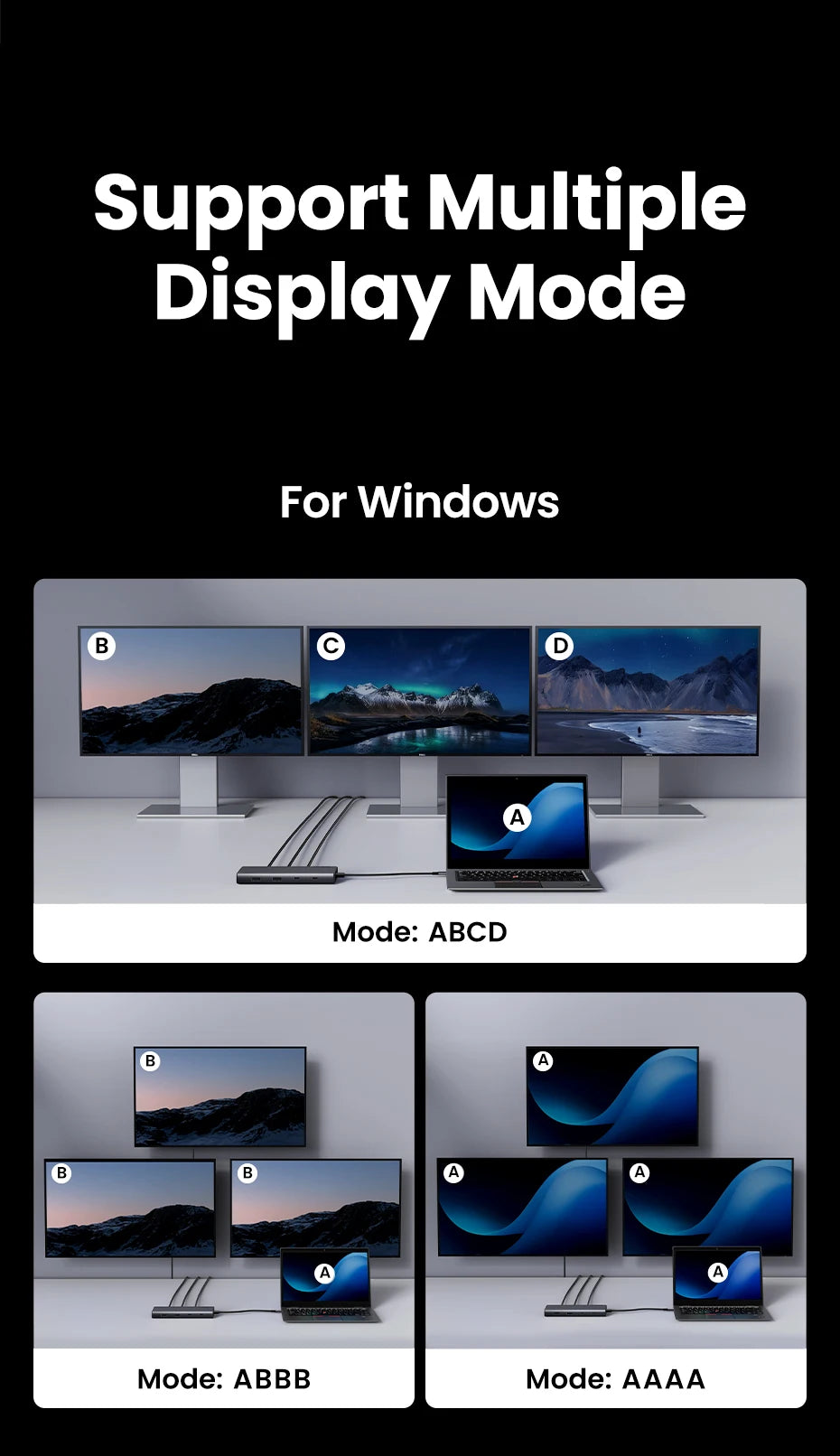

Support Multiple Display Mode
(Note: MacBooks only support mirroring mode)

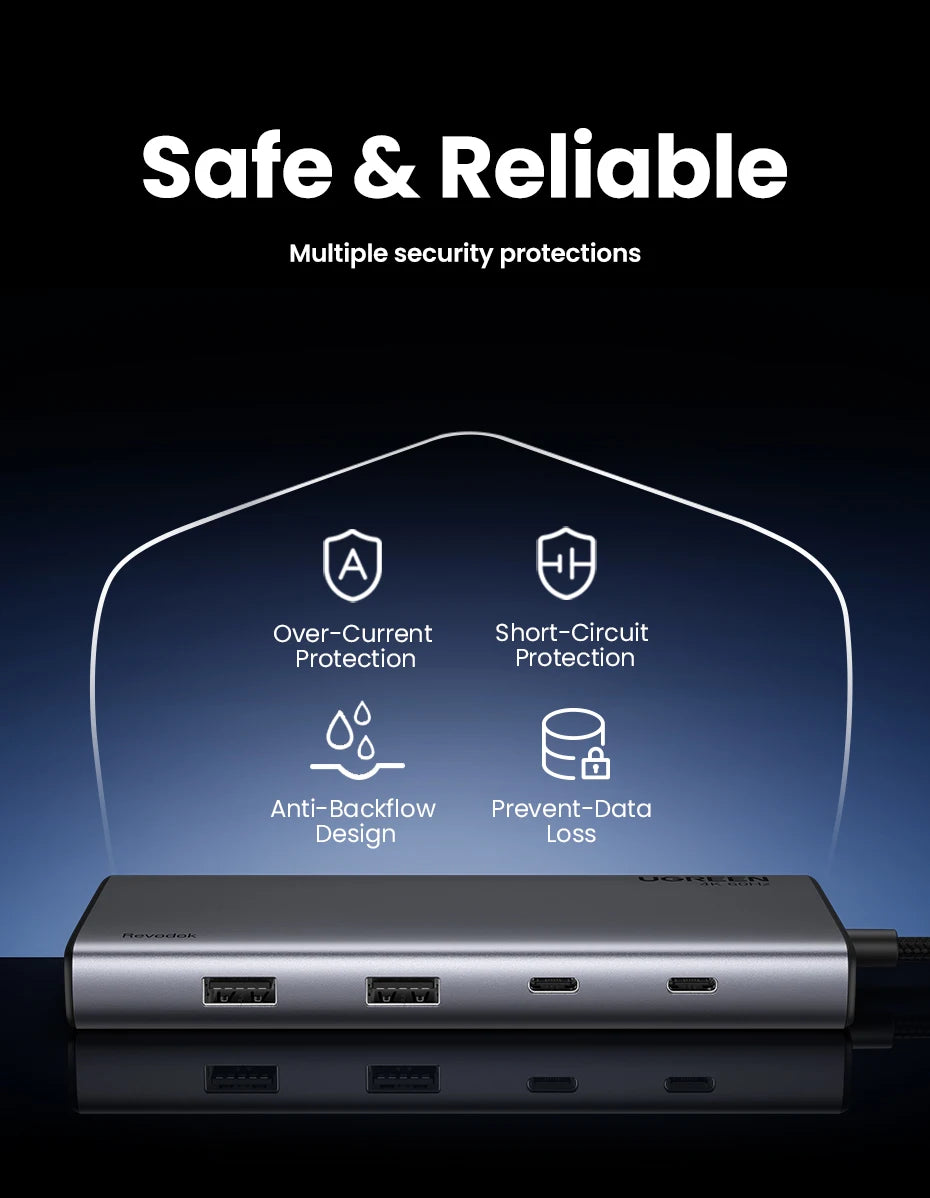

Safe & Reliable
Multiple security protections:
1. Over-Current Protection / 2. Short-Circuit Protection
3. Anti-Backflow Design / 4.Prevent-Data Loss
Video Editor
Supports powerful content reaction. Triple 4K display extended makes editing multiple video streams easier.
Programmer
Turns a usb c device into a powerful workspace. You're ready to create, code, and collaborate.
Entertainment
Enjoy movies and games on a large screen
Universal Compatibility
Windows, mac OS, iOS, Linux

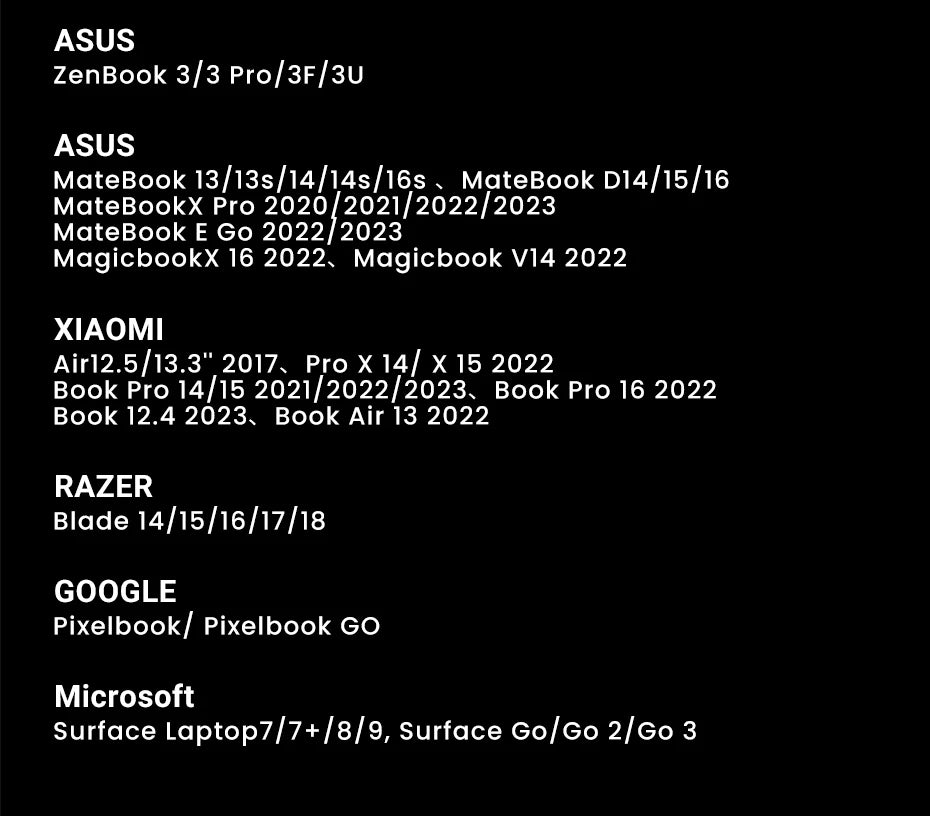

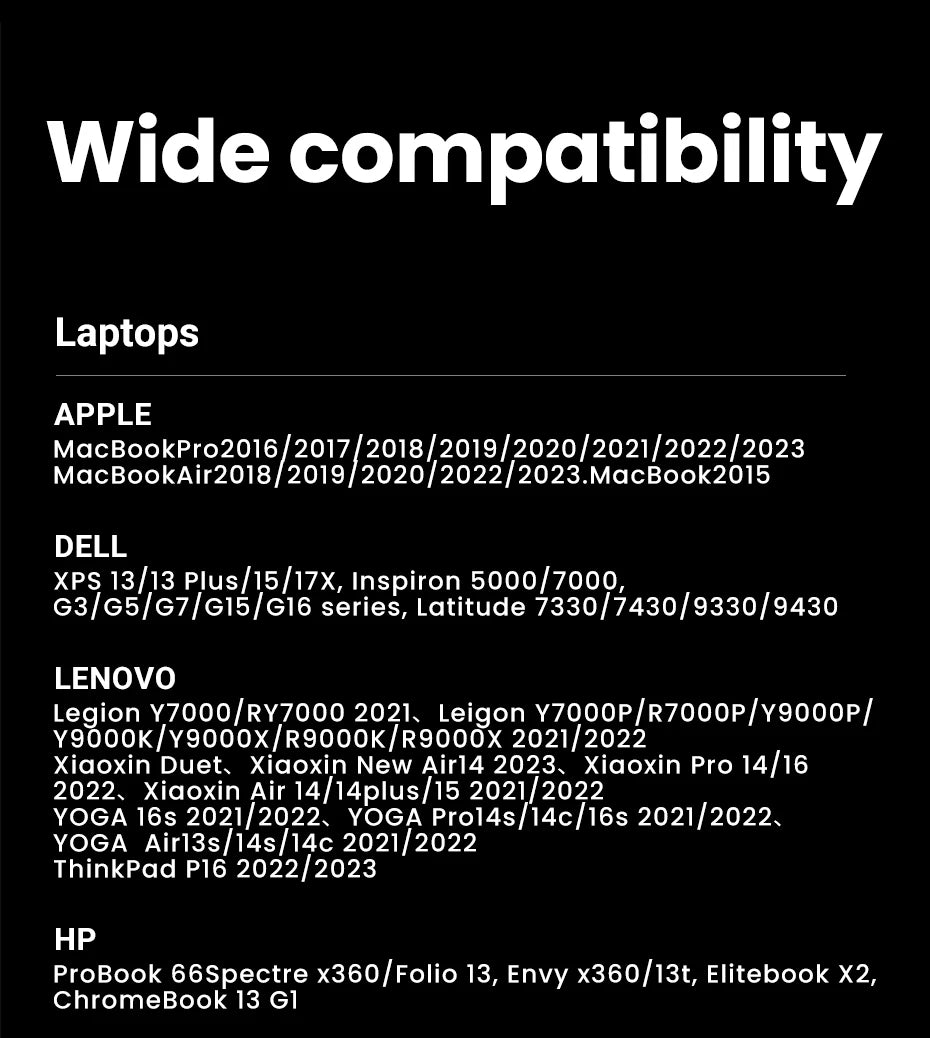

Wide Compatibility (Partial)

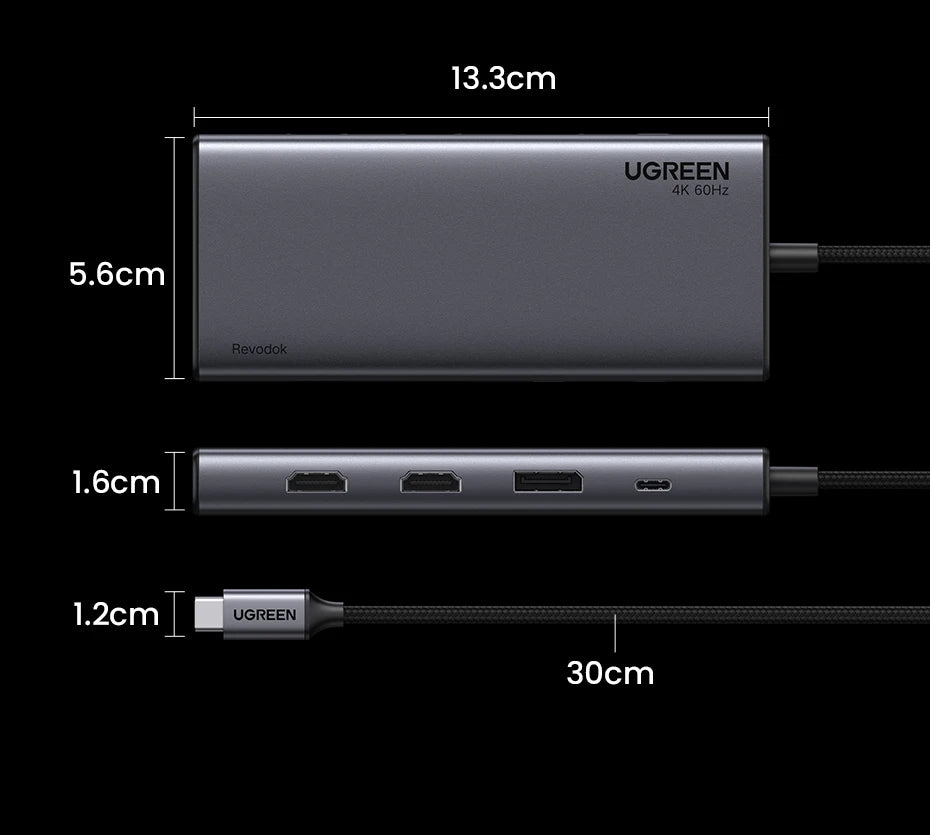

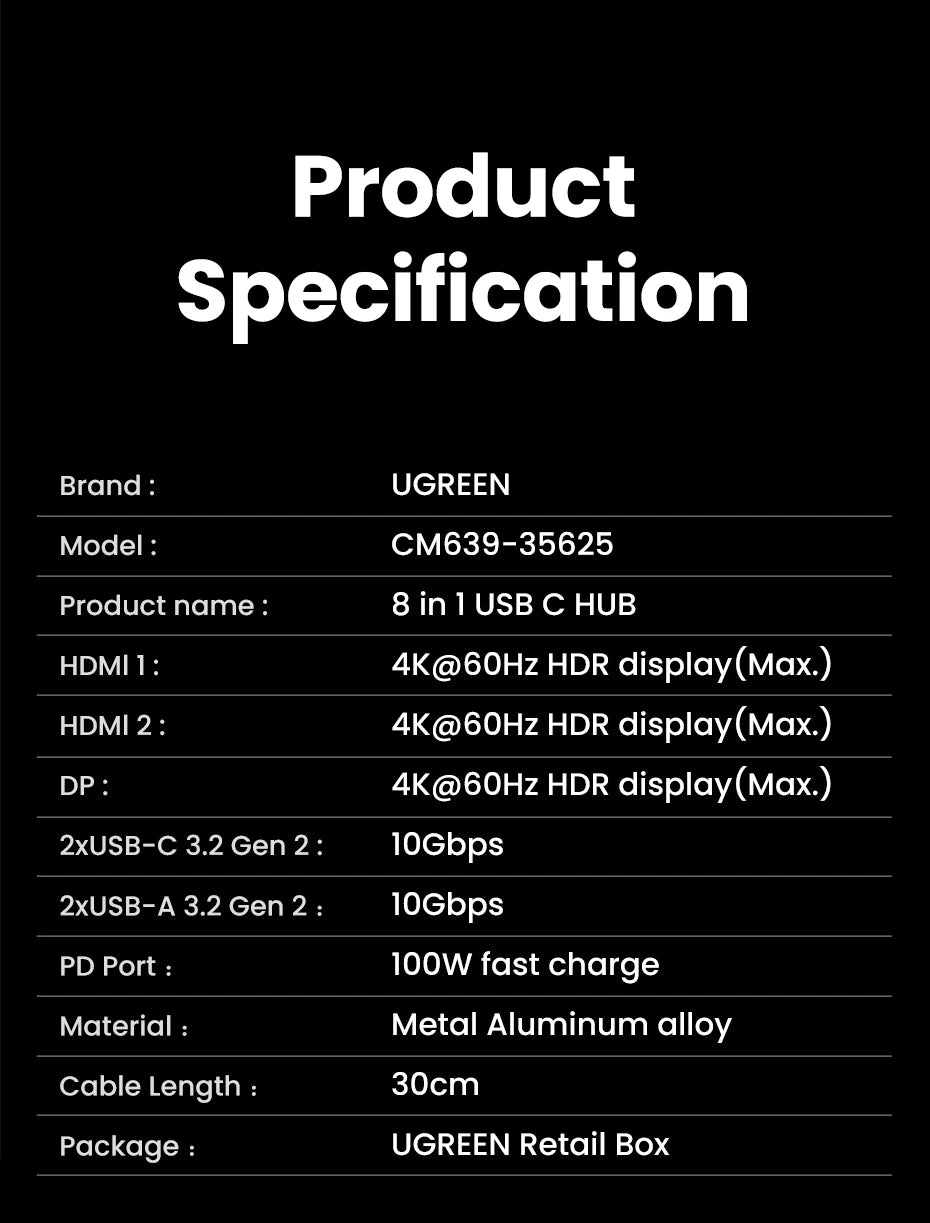

Product Specifications
Package Display

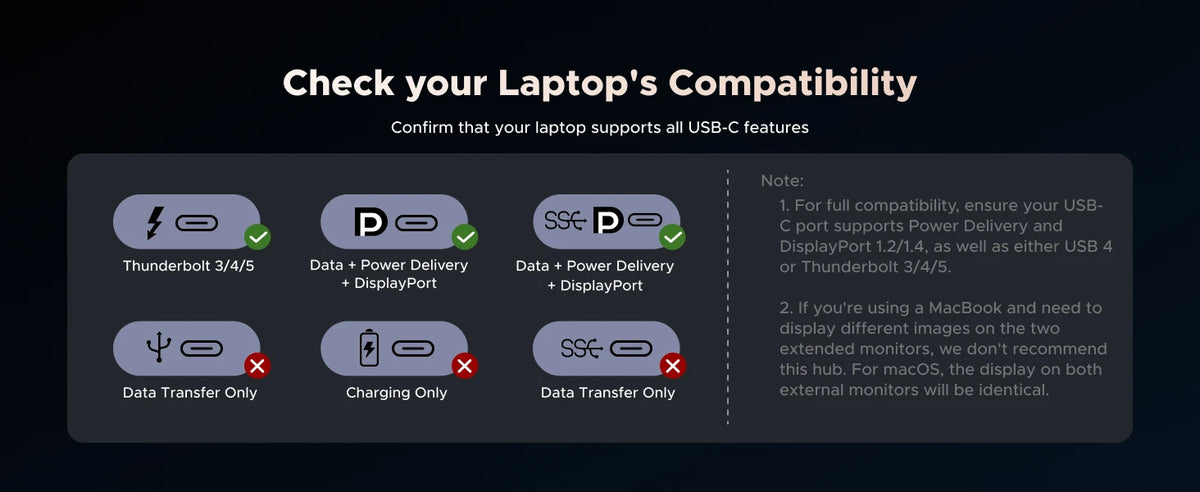

Check your Laptop's Compatibility
Confirm that your laptop supports all USB-C features
Q&A:
Q1: When I connect to more than 2 monitors with Mac, why do both monitors show the same image?
A1: When connected to dual or tiple monitors, devices running macOS only support screen mirroring , which means it only supports AAAA or ABBB. Do NOT support differential display (ABCD)
Q2: How can I troubleshoot if my dual monitors cannot achieve 4K@60Hz simultaneously?
A2: This might be due to the bandwidth limitation of the laptop. You can take the following steps:
1). Ensure that your laptops supports DP 1.4 first.
2). Replace another high standard HDMI cable.
Q3: Why can't I charge at 100W?
A3: This product can support up to 85W for the laptop, and reserve 15W to power the hub itself, ensuring that other external devices have enough power to operate. It is adviced to use wall charger and cable that both support 100W PD charging.
Q4: Does this hub get hot?
A4: When this hub is fully loaded, it may reach a surface temperature of around 131°F. However, this is normal for products of this kind.
